POTS Testing and Fault Location
The POTS Toolbox
4
4-31
acy30s.eps

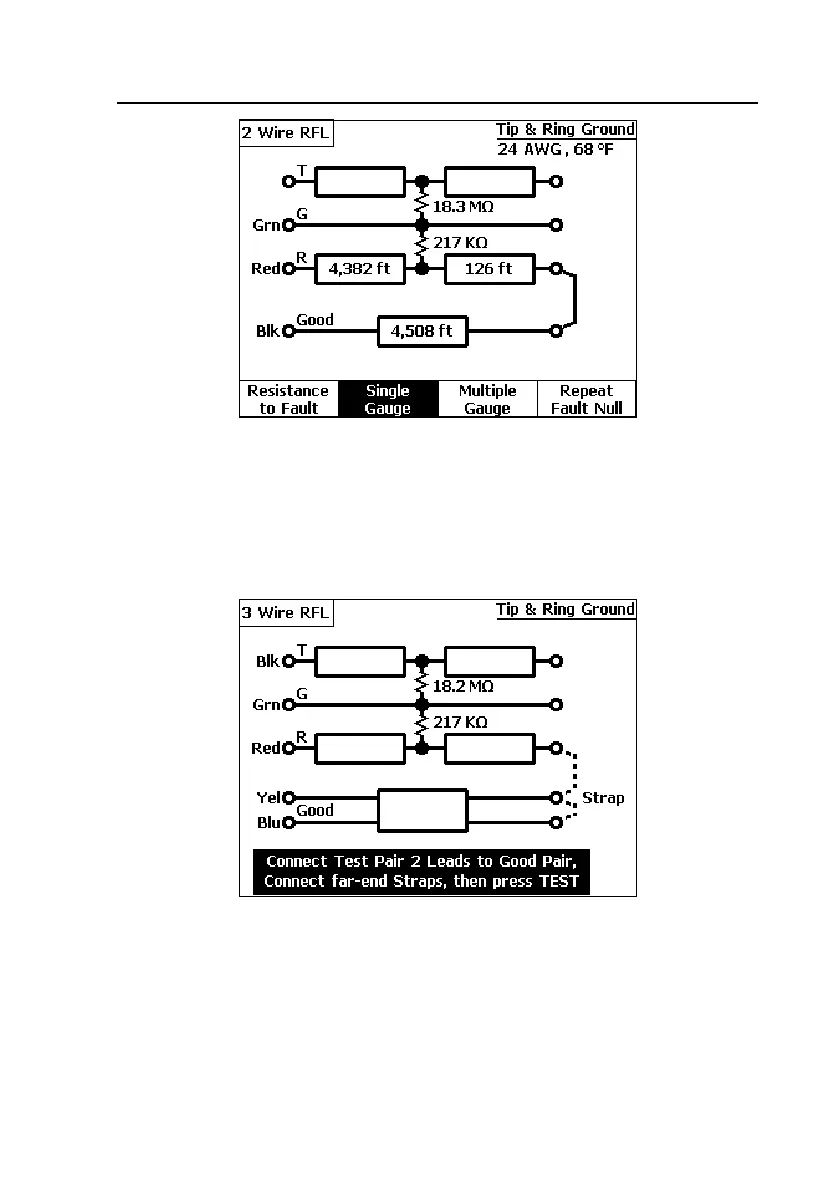

Figure 4-18. Two-Wire RFL Test Results: Distances
OR
• If a good pair is available, press B(
Good Pair-Any Ga.), and a
connection diagram like the one shown in Figure 4-19 is displayed.
acy26s.eps
Figure 4-19. Three-Wire RFL Test: Good Pair Strap
This diagram shows the T1 and R1 test leads connected to the good pair
and a far-end strap (in dotted lines).
