Fuji Xerox Color 550

8 Appendix
302
Appendix
8

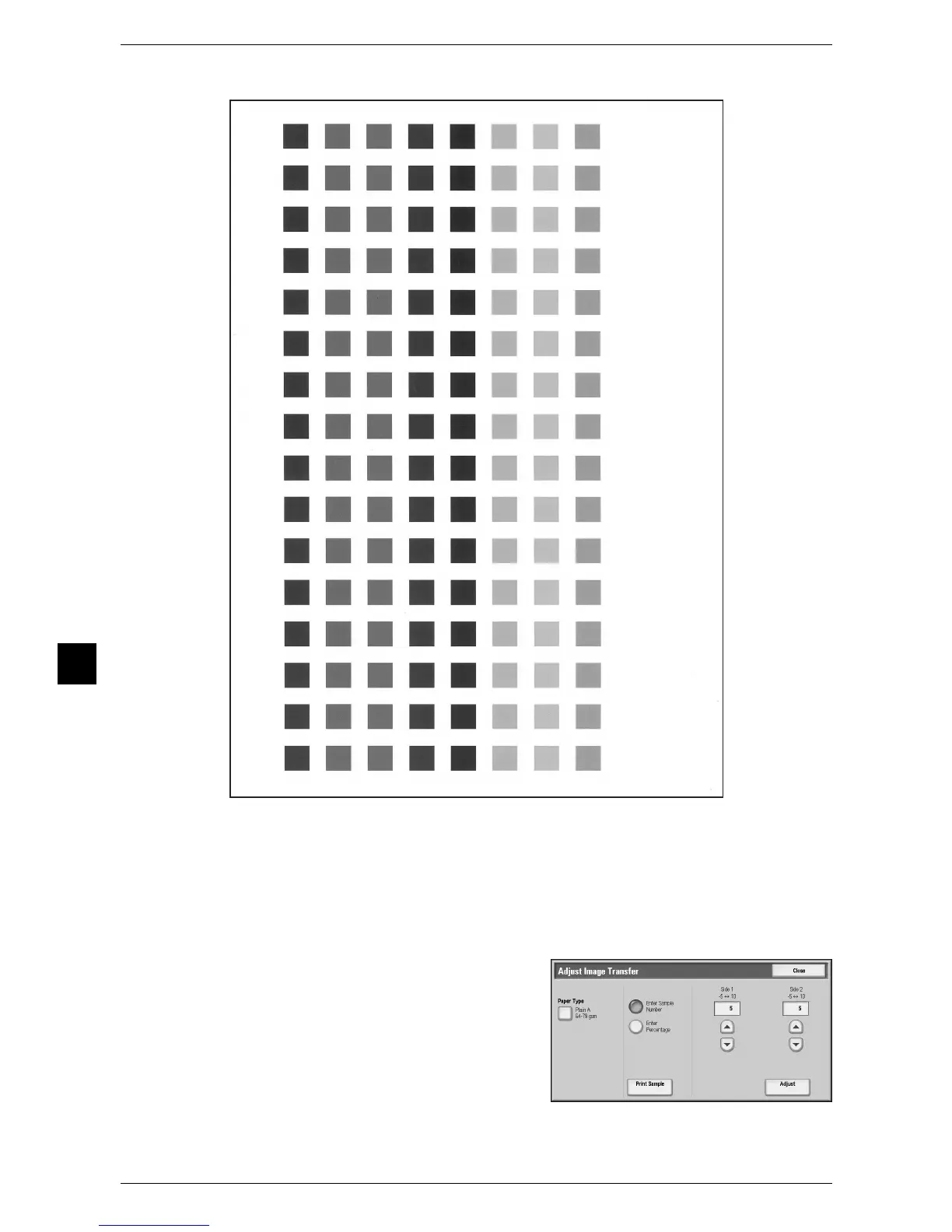

A sample printout, as shown in the following illustration, is printed.
Note • On the top right of the sample, "Side 1" and "Side 2" will be printed, respectively.
• When the paper size is 8.5 x 11" or smaller, the sample will be printed on two separate
sheets.
4) Check the sample printout, and write down the number listed on the left (-5 to +10)
for the row which has the best image transfer.
Note • If you printed out both sides of the paper, be sure to write down the number for each side.
5) Select [Enter Sample Number] and enter
the numbers you wrote down in Step 4 for
[Side 1] and [Side 2].
6) Press [Adjust].
The set transfer output value will be
applied to subsequent printouts.
-5
-4
-3
-2
-1
0
+1
+2
+3
+4
+5
+6
+7
+8
+9
+10
Side1
