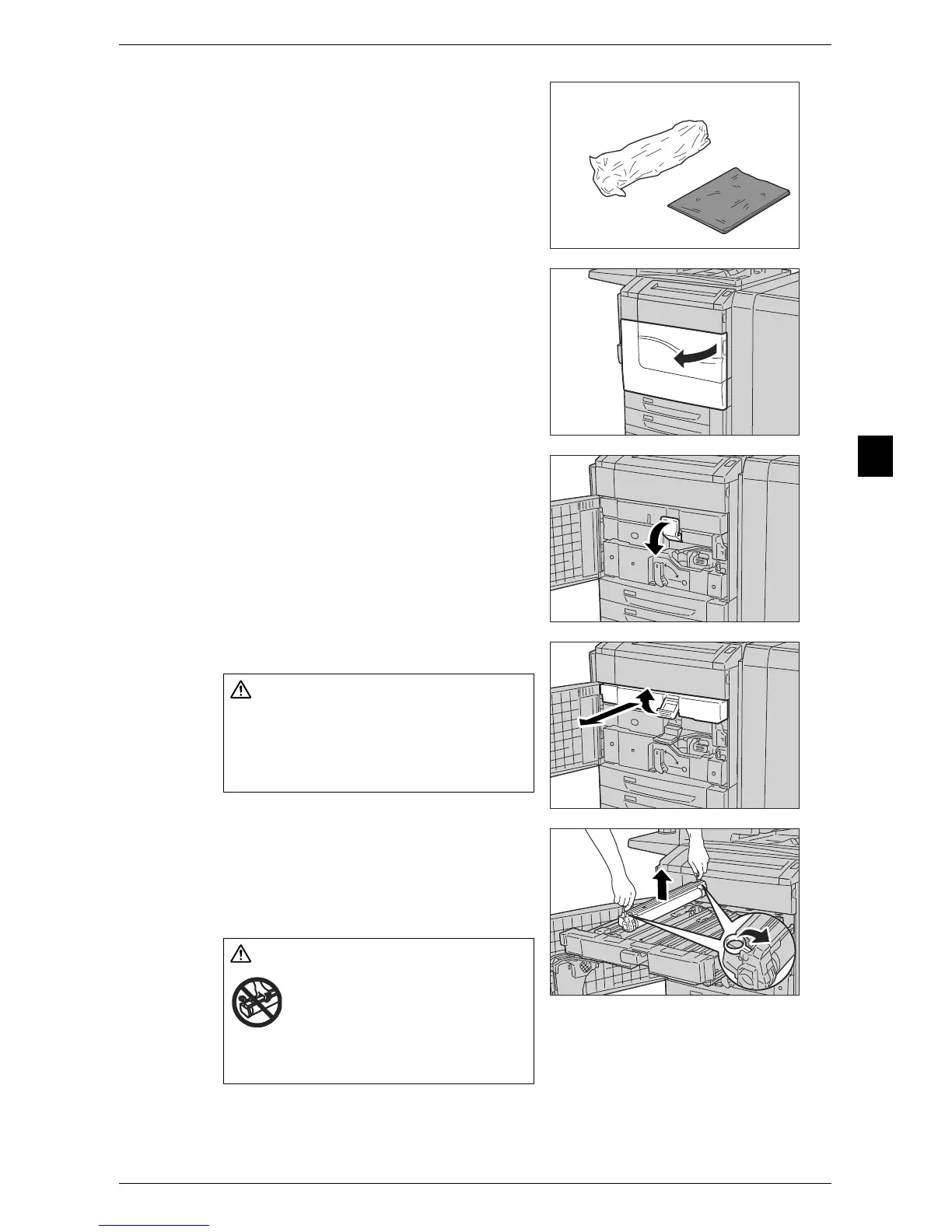

1 Remove the new drum cartridge and the
supplied black sheet from the box
beforehand.
Important • Place the new drum cartridge on a level
surface.
• Do not place the new drum cartridge in an
upright position.
2 Make sure that the machine is not operating,
and open the front cover.
3 Pull down lever R1-R4 towards you.
4 Hold the handle of the unit and pull it out.
5 Hold the rings provided at both ends of the
drum cartridge, and lift the cartridge out from
the machine.
Note • This section explains how to replace drum
cartridge R2, as an example.
6 Place the used drum cartridge into the box which contained the new drum cartridge.
CAUTION
Be sure to pull out the unit slowly. If pulled
out with too much force, it may hit and
injure your knees or other parts of your
body.
CAUTION
Be sure to insert your fingers into
the rings when lifting up the drum
cartridge.
