TX1310 M3 Upgrade and Maintenance Manual 101

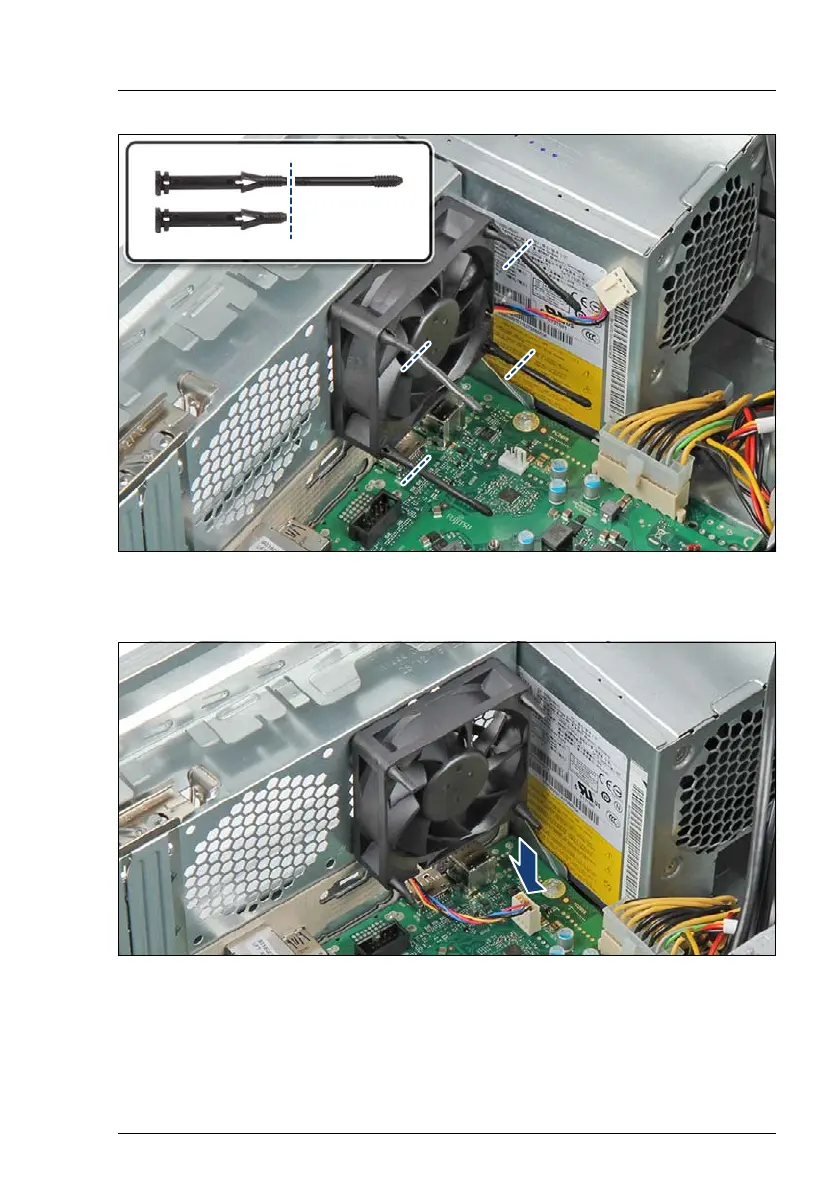

Figure 45: Cutting off the rubber rivets
Ê Cut off the loose ends of the four rubber rivets as shown.
Figure 46: Connecting the rear fan cable
Ê Connect the rear fan cable to system board connector "Fan (OEM)".
Ê Install the heat sink, see section "Installing the heat sink" on page 143.
