TX1310 M3 Upgrade and Maintenance Manual 165
Add gaskets to the following three positions to comply with current EMC
regulations.
I Gaskets are included in the RDX option kit.
Ê Clean the metal surface before sticking the gaskets.
Ê Remove the protection film from the adhesive tape shortly before
sticking it to the desired location.

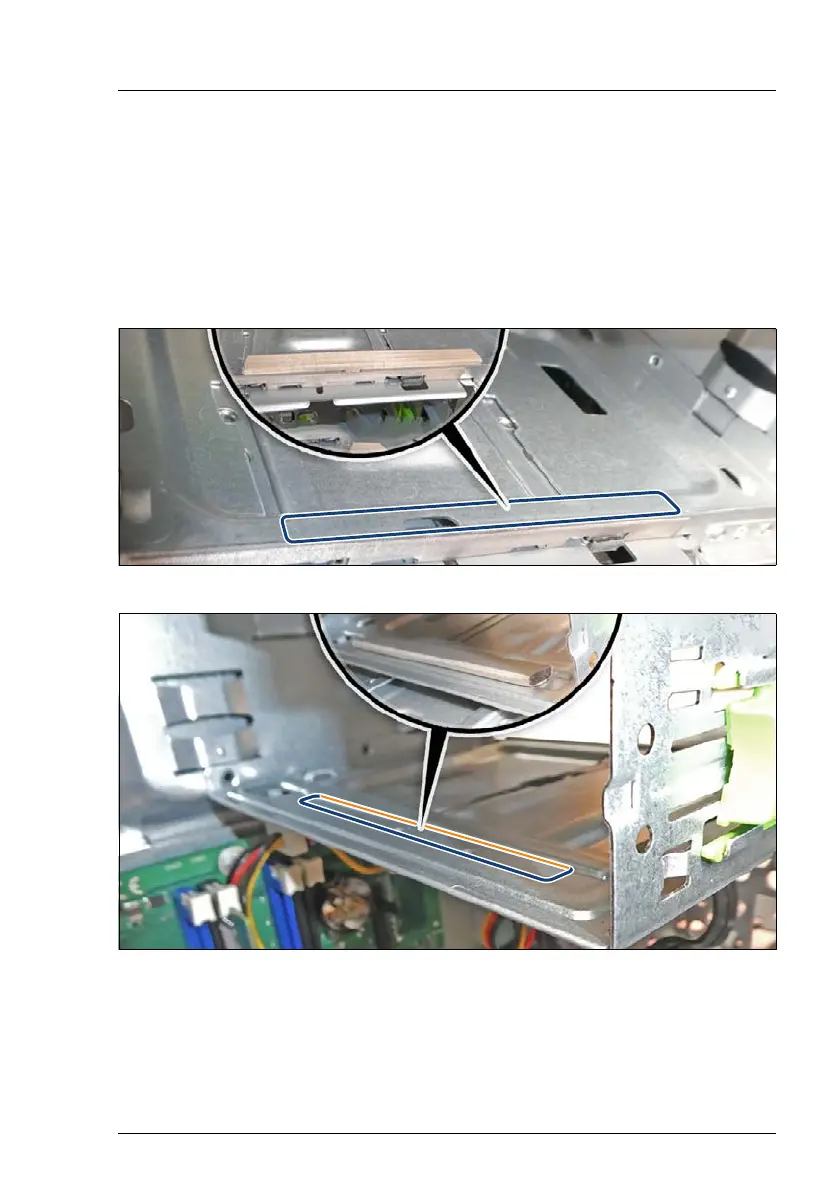

Figure 97: Bottom side at the front
Figure 98: Bottom side at the rear
Ê Add the gaskets (90 mm) on the bottom side at the front (see figure 97) and
at the rear (see figure 98) of bay 2.
I Align the gasket of the rear side on the edge (see orange line).
