z The IP address of VLAN-interface 1 is 10.1.1.1/24, and that of VLAN-interface 2 is 10.1.2.1/24.

z The IP address of the RADIUS server is 10.1.2.2/24.

z DHCP accounting is enabled on the DHCP server.

z The IP addresses of the global DHCP address pool belongs to the network segment 10.1.1.0. The

DHCP server operates as a RADIUS client and adopts AAA for authentication.

Network diagram

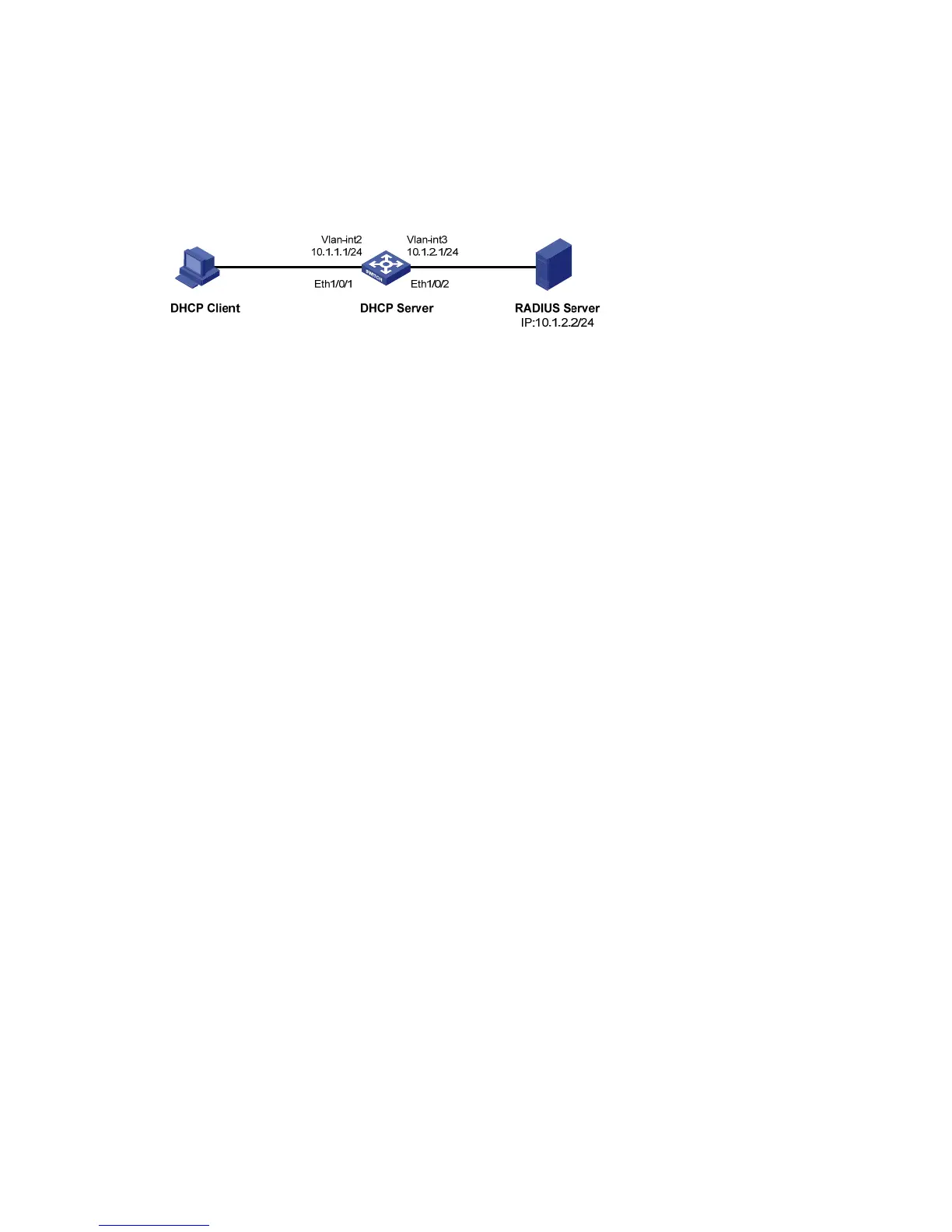

Figure 2-4 Network diagram for DHCP accounting configuration

Configuration procedure

# Enter system view.

<Sysname> system-view

# Create VLAN 2.

[Sysname] vlan 2

[Sysname-vlan2] quit

# Create VLAN 3.

[Sysname] vlan 3

[Sysname-vlan3] quit

# Enter Ethernet 1/0/1 port view and add the port to VLAN 2.

[Sysname] interface ethernet 1/0/1

[Sysname-Ethernet1/0/1] port access vlan 2

[Sysname-Ethernet1/0/1] quit

# Enter Ethernet 1/0/2 port view and add the port to VLAN 3.

[Sysname] interface ethernet 1/0/2

[Sysname-Ethernet1/0/2] port access vlan 3

[Sysname-Ethernet1/0/2] quit

# Enter VLAN 2 interface view and assign the IP address 10.1.1.1/24 to the VLAN interface.

[Sysname] interface vlan-interface 2

[Sysname-Vlan-interface2] ip address 10.1.1.1 24

[Sysname-Vlan-interface2] quit

# Enter VLAN 3 interface view and assign the IP address 10.1.2.1/24 to the VLAN interface.

[Sysname] interface vlan-interface 3

[Sysname-Vlan-interface3] ip address 10.1.2.1 24

[Sysname-Vlan-interface3] quit

# Create a domain and a RADIUS scheme. Associate the domain with the RADIUS scheme.

[Sysname] radius scheme 123

[Sysname-radius-123] primary authentication 10.1.2.2

[Sysname-radius-123] primary accounting 10.1.2.2
