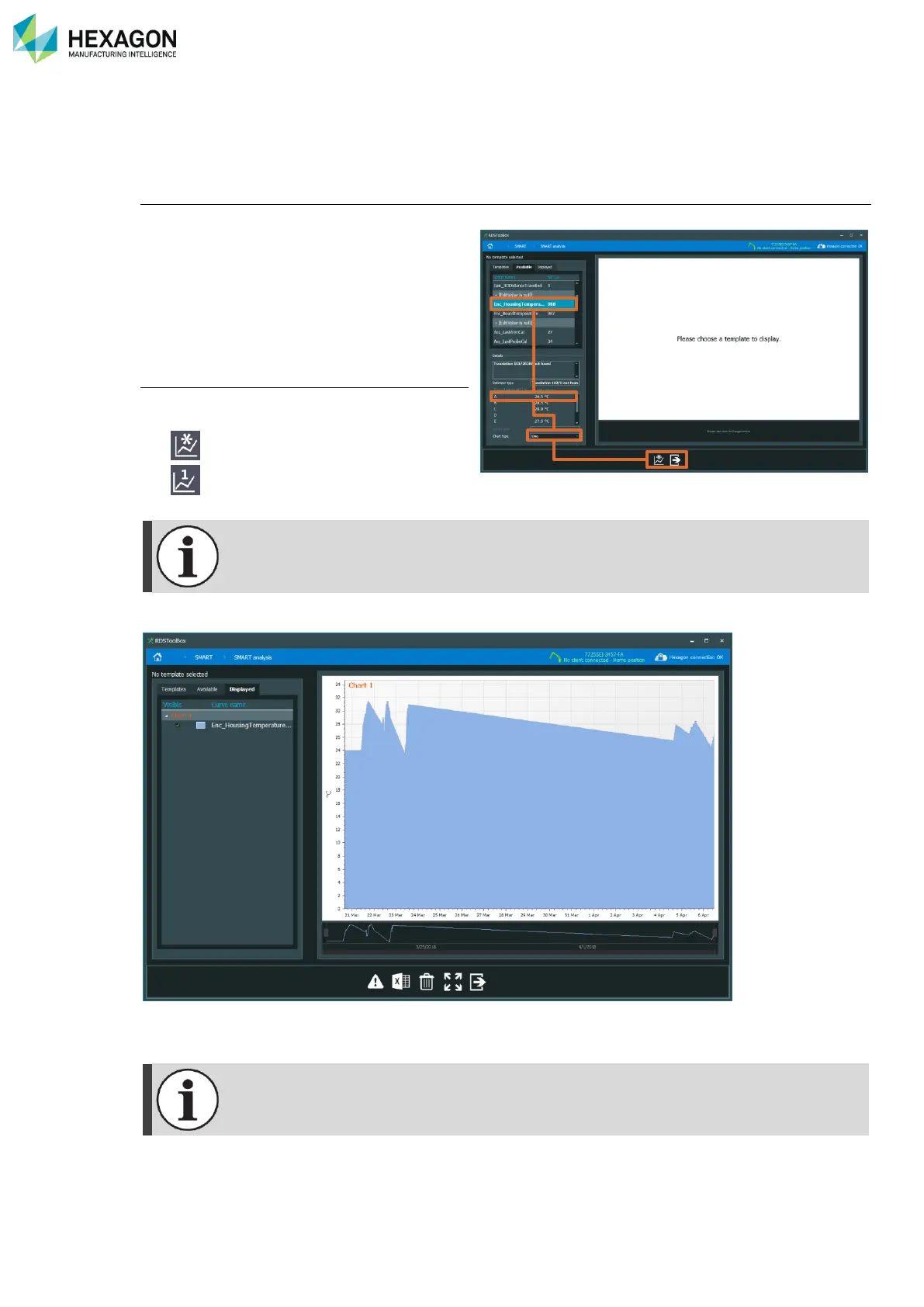

J.6.7 ADD AN INDICATOR TO A CHART
To analyse an indicator, it must be added on a chart, either a new or existing one.
Preliminary selections
Before any display, the following selections or settings are necessary:
1. In the Available tab, select the wanted
indicator
2. In the details of the indicator, select one or
several indexes
3. For counters, choose the period time
4. Choose the type of chart
Display the chart
Once the preliminary choice is done, add the
selected indicator:
• On a new chart
• On an existing chart
It is possible to add an indicator to an existing chart only if the type of graph is the same.
Then the graph is displayed
On the left side, the “Available” tab is replaced by the list of indicators on each chart.
It is possible to add an indicator to a new chart by double clicking on it.
