Hexagon RDS User Manual

RDS Agent
H000002007-RDS User Manual │Version 5.0.0 (2018-09-17) │26

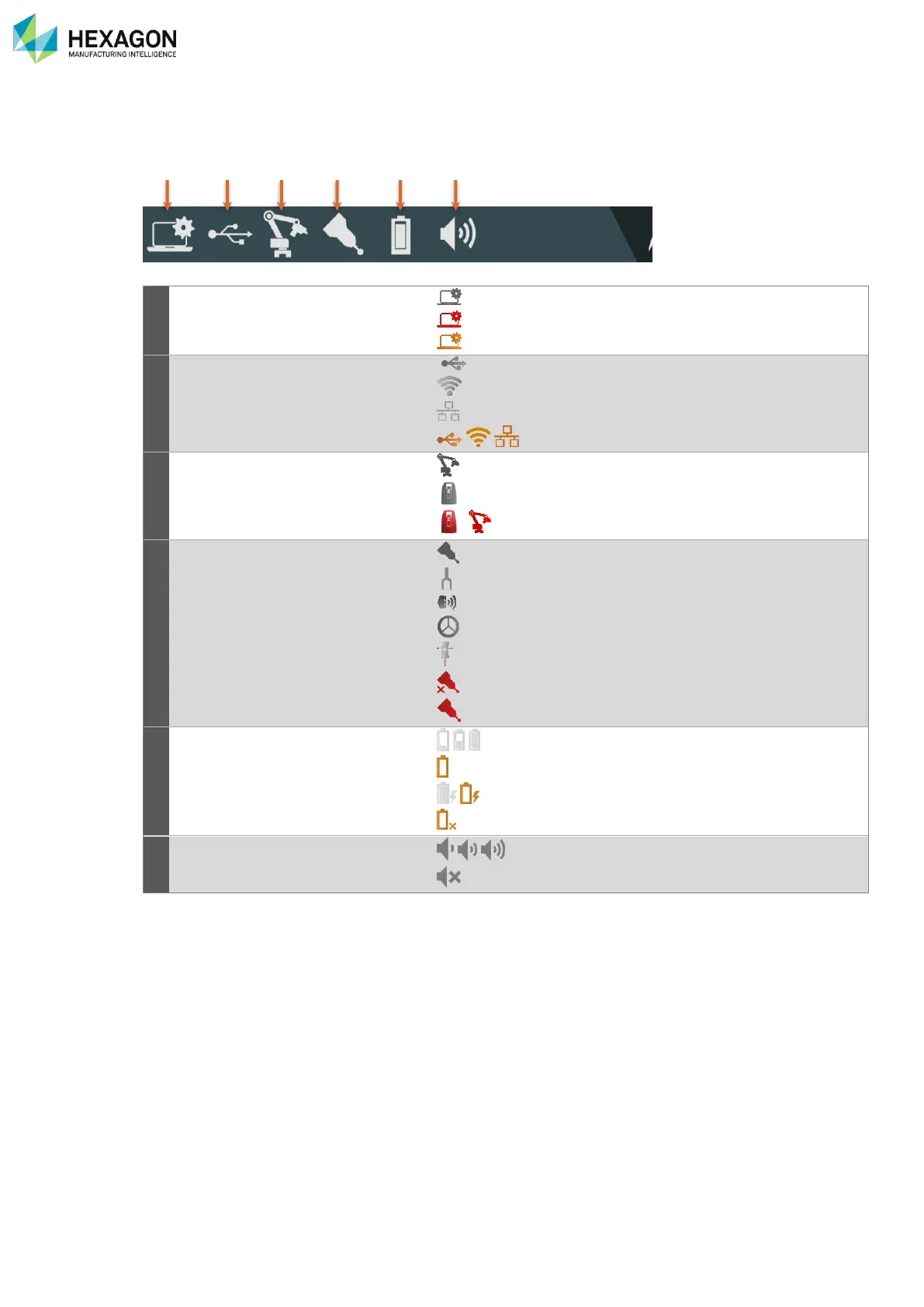

C.1.2 SYSTEM STATUS
On the left upper line, is shown the status of major components. Clicking on those icons shows the details
or opens the appropriate set-up panel.
a
Status and setup of RDS Agent
RDS is functional
Critical issue (ex: RDS service is stopped)
non-critical issue
b
Type and status of the connection
to the machine
Instrument connected through USB
Instrument connected through WLAN
Instrument connected through Wired Ethernet
/ / Connection issue
c
Type and status of the instrument
The selected type of instrument is Arm
The selected type of instrument is Tracker
/ No instrument of the selected type can be found.
d
Type and status of the probe
The current probe is a contact probe
The current probe is a tube probe
The current probe is a scanner
The current probe is a reflector
The current probe is a T-Probe
No probe is currently detected
Issue with the probe
e
Status of the battery
Battery(ies) level (Low to High)
The battery level is critical
On power supply / the battery is charging
No battery detected
f
Sound level
Sound volume set (Min to Max)
Sound set to zero
a b c d e f
