RDS Control Panel
H000002007-RDS User Manual │Version 5.0.0 (2018-09-17) │74

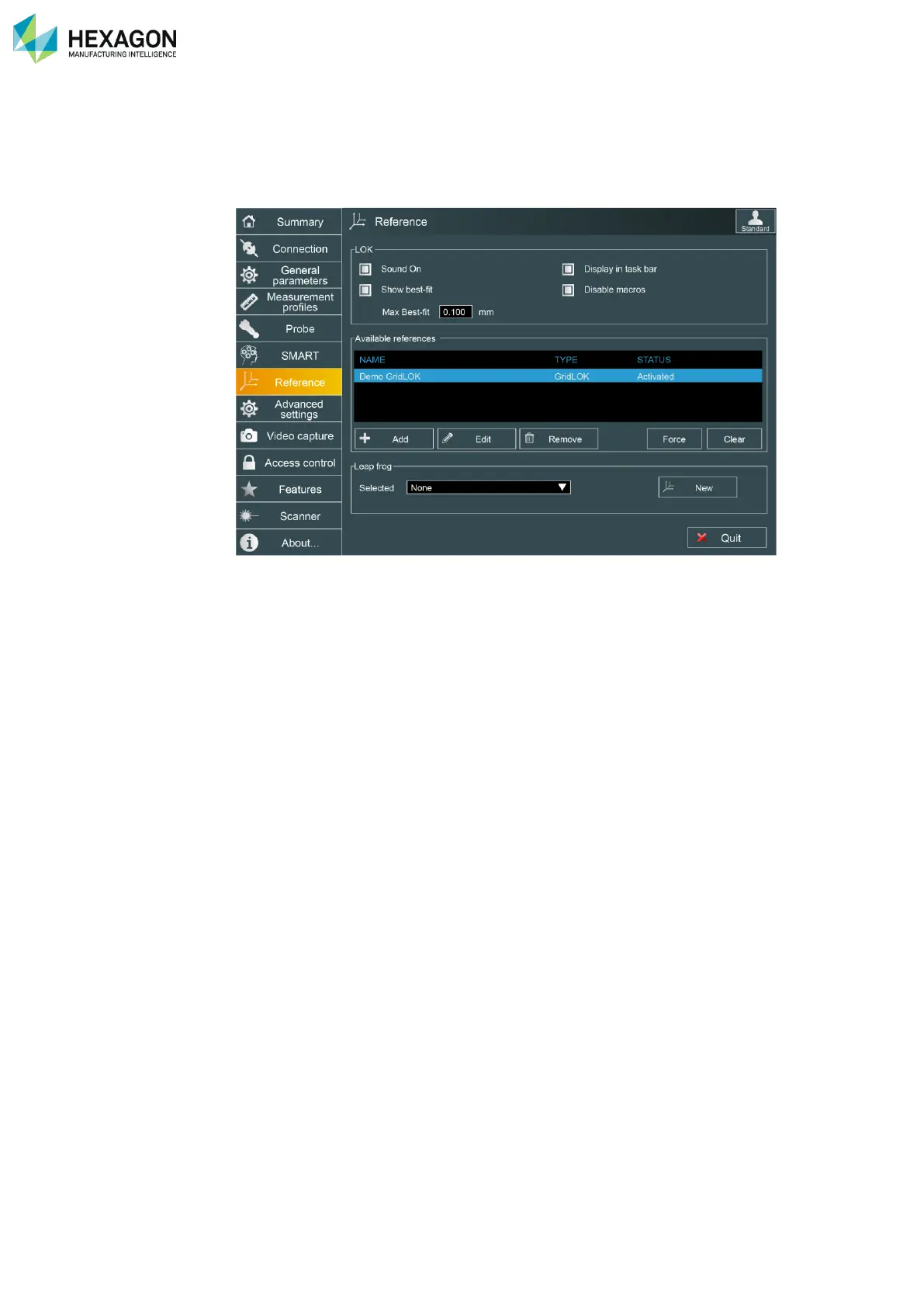

D.8 AUXILIARY REFERENCING (ARMS)
RDS control panel offers the possibility to position the system on several places, linking the different
positions by a reference, extending then the measurement volume.
Several solutions are available:
• Simple arm Leap-Frog: consists by taking same points before and after moving the arm.
• Grid Lok: permits to position the arm anywhere on the Lok floor, and reference the position by taking
Lok points.
• Space Lok: permits to move the arm around the “Space Lok” tool
• Part / Tool Loks: used to move around the part / tool.
• Load a reference from a file
