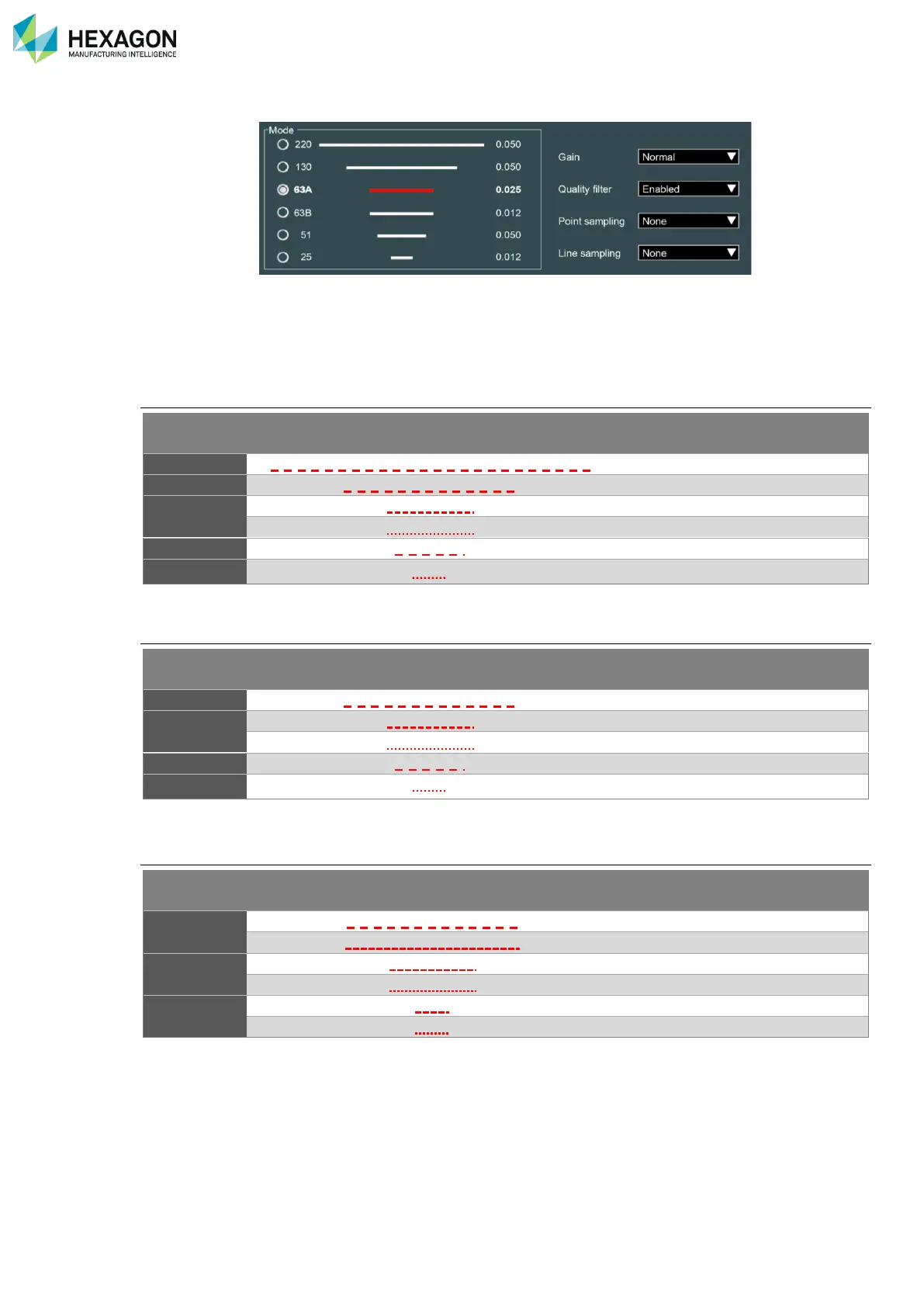

D.7.5 SCANNING MODES (HP-L-20.8 / CMS108 / LAS, LAS-XL)
CMS108, HP-L-20.8, LAS and LAS-XL scanners can digitize using different widths and resolutions.
Line length: defines the width of the laser (width in mm).
Point Spacing: defines the resolution distance between digitized points (points spacing in mm)
HP-L-20.8 / LAS scanning modes
Line width
(mm)
Laser line
Point spacing
Rate
(Hz)
220
0.050
37
130
0.050
51
63
0.025
50
0.013
28
51
0.050
100
25
0.013
50
Table 1 : HP-L-20.8 / LAS scanning modes
LAS-XL scanning modes
Line width
(mm)
Laser line
Point spacing
Rate
(Hz)
468
0.905
51
228
0.452
50
0.226
29
182
0.905
100
91
0.226
50
Table 2 : LAS-XL scanning modes
CMS108 scanning modes
Line width
(mm)
Laser line
Point spacing
Rate
(Hz)
120
0.120
30
0.060
15
60
0.060
51
0.030
29
25
0.050
53
0.025
36
Table 3 : CMS108 scanning modes
