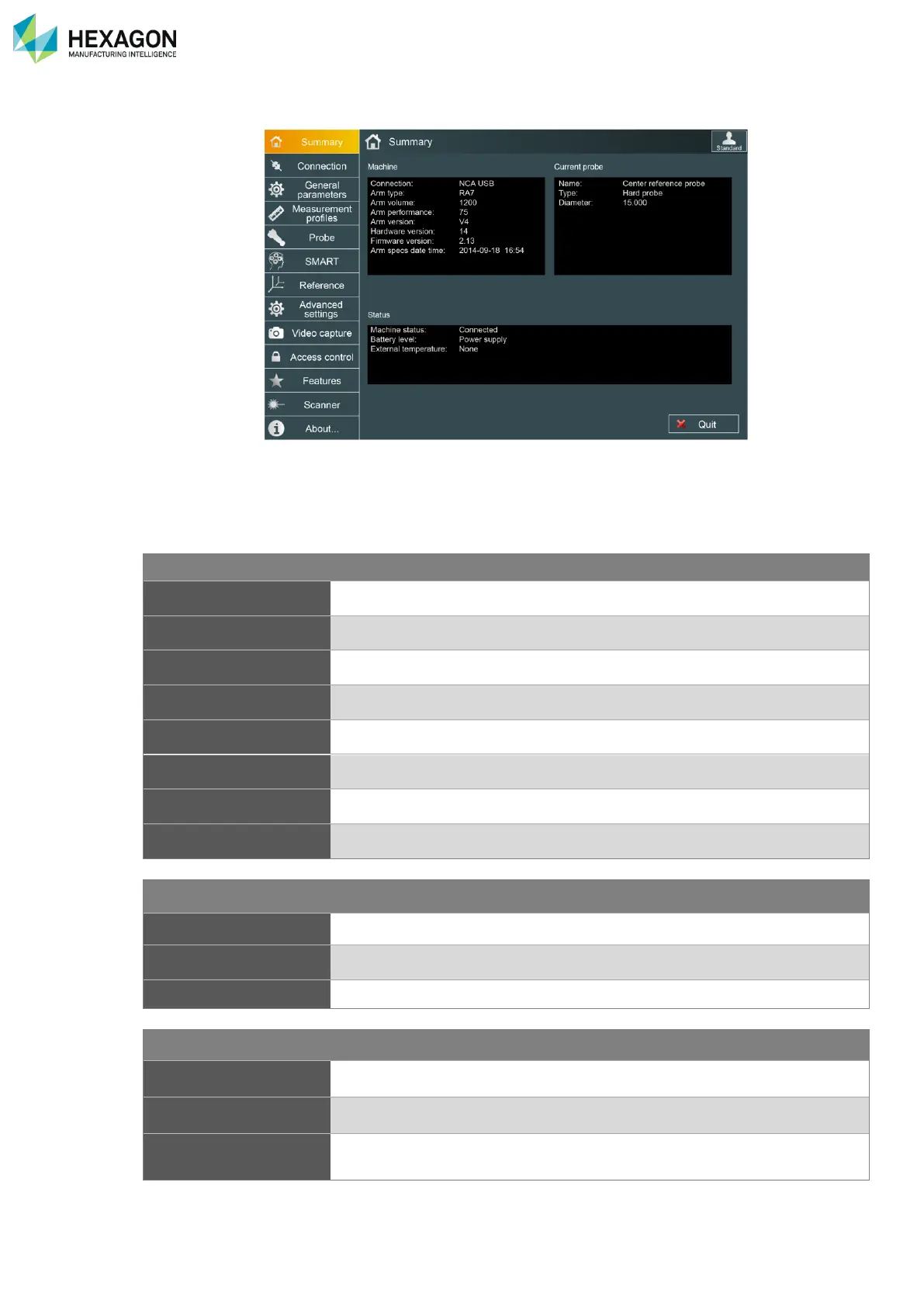

D.1 SUMMARY
This page shows main information about the connected device:
D.1.1 SUMMARY (ARM)
MACHINE
Connection
Type of system (NCA) connection (USB / WLAN / Wired Ethernet)
Type
Type of arm (Multi Gage/RA7/HA8)
Arm volume
Diameter of the spherical measurement volume in mm
Arm version
Version of the arm
Performance
Performance level of the arm
Hardware version
Version of arm
Firmware version
Version of electronic program in the arm
Armspecs date time
Date and time of last arm Alignment
CURRENT PROBE
Name
Name of the probe (see §C.4.1)
Type
Contact, trigger, scanner, or NC-Tube probe
Diameter
Ball probe diameter
ARM STATUS
Arm Status
Information about connection and status
Battery Level
In % of full level
External Temperature
Gives the ambient temperature measured by the instrument (in °C – an
external temperature sensor must be used)
