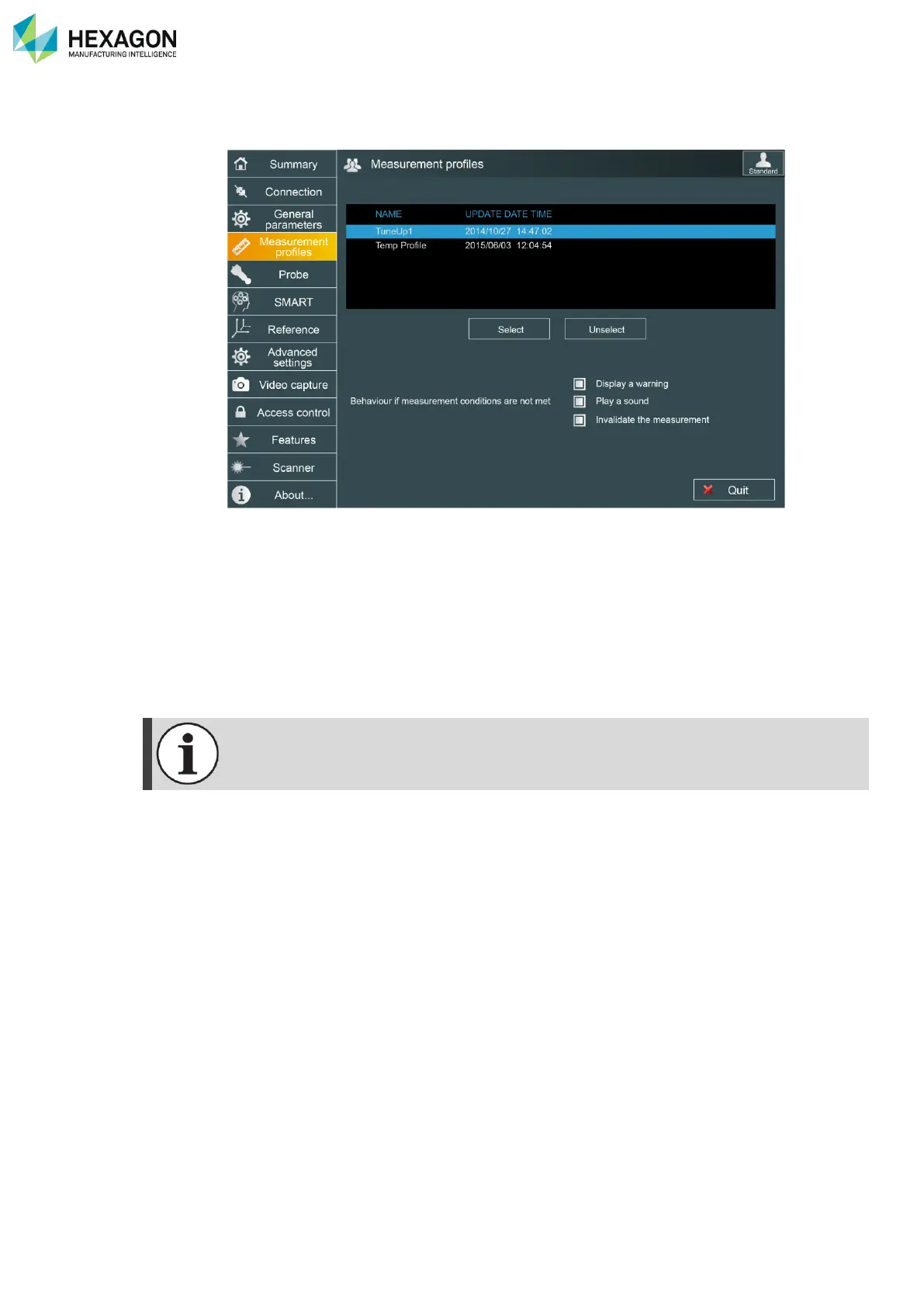

D.5 MEASUREMENT PROFILES (ARMS)
With RDS, one or several profiles can be created to manage specific uses of the arm.
These profiles then appear in this tab and can be activated.
It is possible to specify how must react RDS when the user measures out of the restrictions.
• Display a warning: display a message at the centre of the screen
• Play a sound: a beep is emitted
• Invalidate the measurement: the point is not accepted.
Contact your Hexagon agent for more information about the profiles.
