K.1.1 PROBE DETAILS

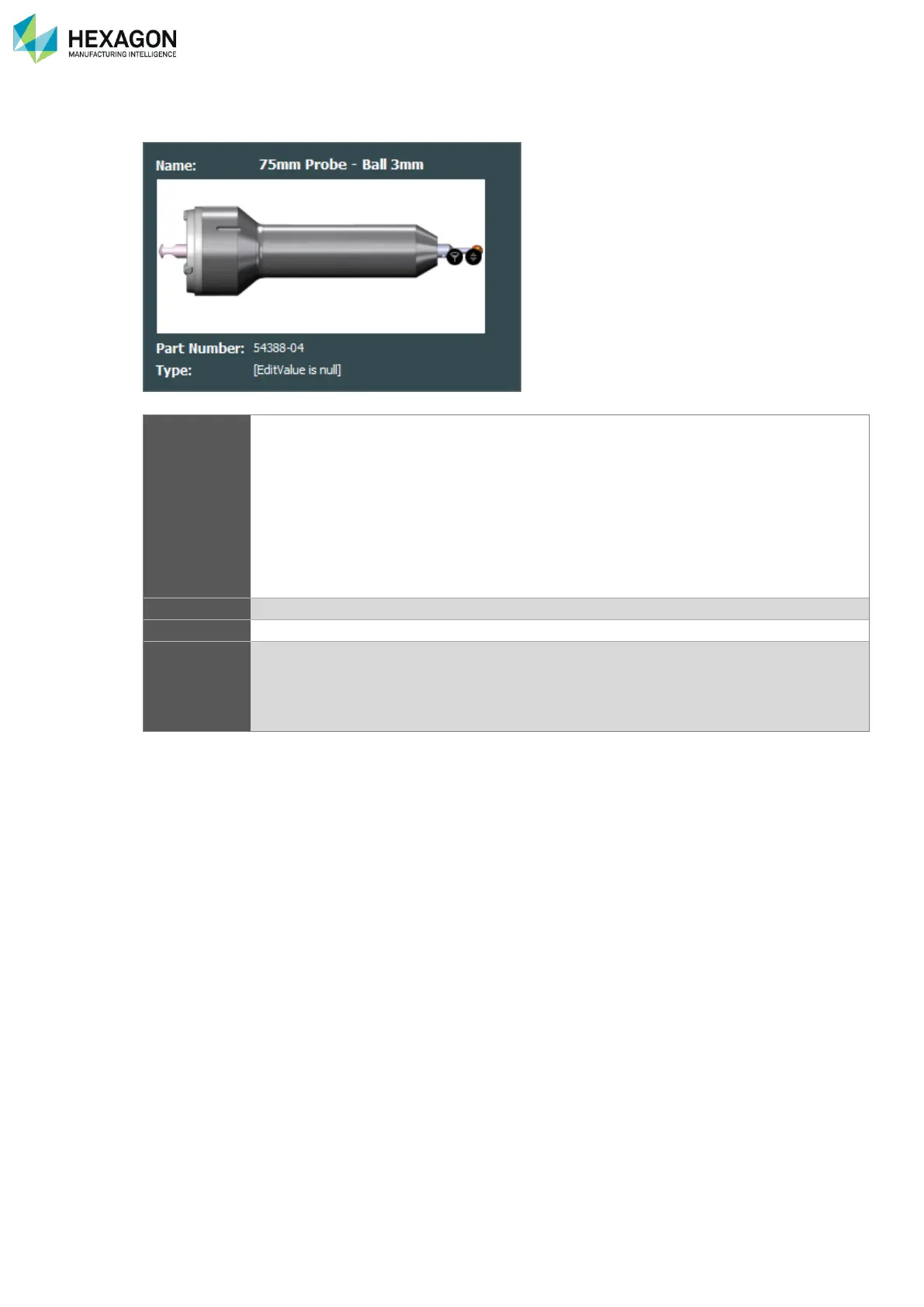

All the probes are described in a tile containing some information:
Name
Complete name of the probe file. The name contains the necessary information:
• Tip diameter
• Tip material
• Type of probe
• Length of the probe
• Type of arm (Absolute / Multi Gage)
• Angle (if not straight)
• Gender of TKJ
Part Number
Refer to your catalogue to get the part number
Type
Type of probe:
• Hard contact probe
• Tube non-contact probe
• Touch trigger Probe
