1.3 Names and Functions of Parts
10

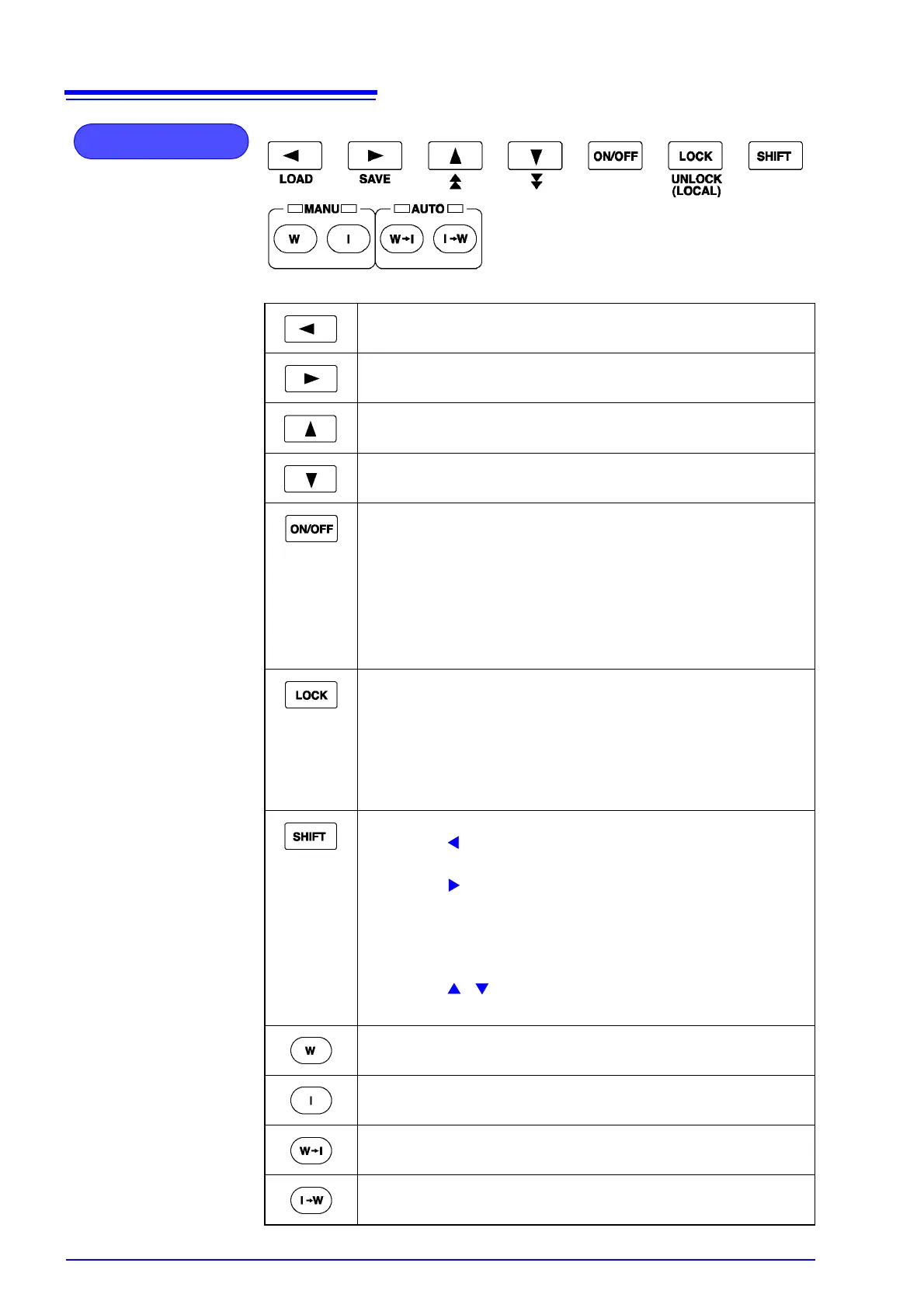

Operation Keys
Moves the flashing cursor to the left.
Moves the flashing cursor to the right.
Raise the selected value with the flashing cursor.
Lower the selected value with the flashing cursor.
Change the ON/OFF for the selected setting with the flashing
cursor. If turned off, the set value is not used in testing.
• The following item can't perform the switching on/off:
Withstand-voltage test:
Test-voltage value, Test-voltage frequency, Upper-limit test
value
Insulation-resistance test:
Test-voltage value, Lower-limit test value
UNLOCK
(LOCAL)
Used to lock the keys.
Only the following keys are available during Key Lock. (p. 79)
UNLOCK key (LOCK + SHIFT key)
START key
STOP key
• In the remote state, this key functions as a LOCAL key.
It cancels the remote state.
Used in combination with other keys.
• SHIFT + key
Displaying the loading screen.(p. 102)
• SHIFT + key
Displaying the saving screen.(p. 99)
• SHIFT + LOCK key
Cancels the key lock.
When GP-IB is used for communication, go to LOCAL state.
• SHIFT + / key
Changing the increment size of setting values.
Performs withstand-voltage tests and settings.
"Chapter 3 Withstand- Voltage Test" (p. 29)
Performs insulation-resistance tests and settings.
"Chapter 4 Insulation- Resistance Test" (p. 47)
Tests for withstand-voltage, then insulation-resistance.
"Chapter 5 Automatic Test" (p. 69)
Tests for insulation-resistance, then withstand-voltage.
"Chapter 5 Automatic Test" (p. 69)
