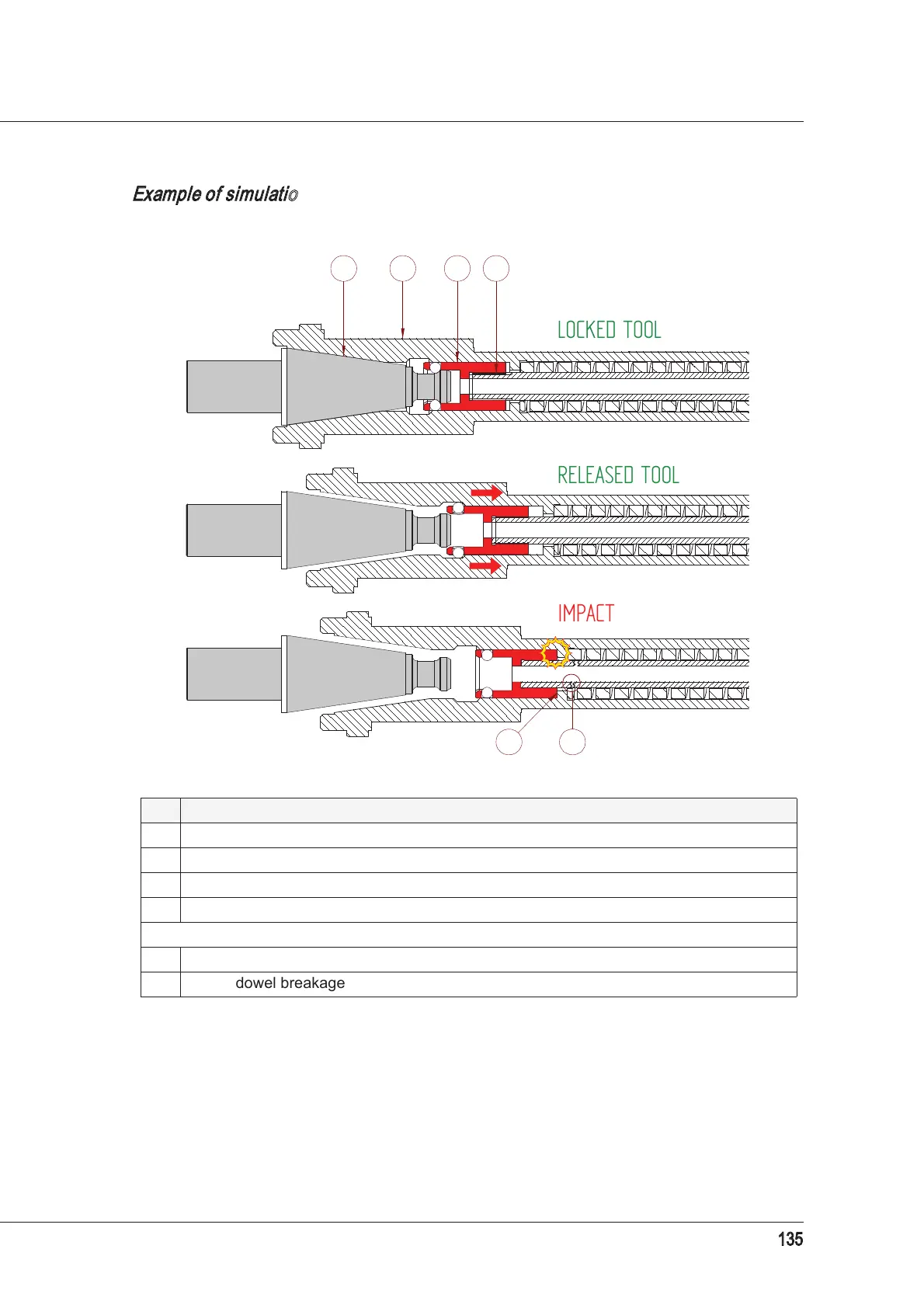

Example of simulation with tool holder ISO
1 2 3 4
5 6
N. Description
1 ISO cone
2 Spindle shaft
3 ISO collet (or pre-inserted nut)
4 Screw dowel
The arrows indicate the direction in which the locking system returns after having freed the cone
5 Point at which the collet will hit the shaft
6 Screw dowel breakage
LOCKED TOOL
RELEASED TOOL
IMPACT
