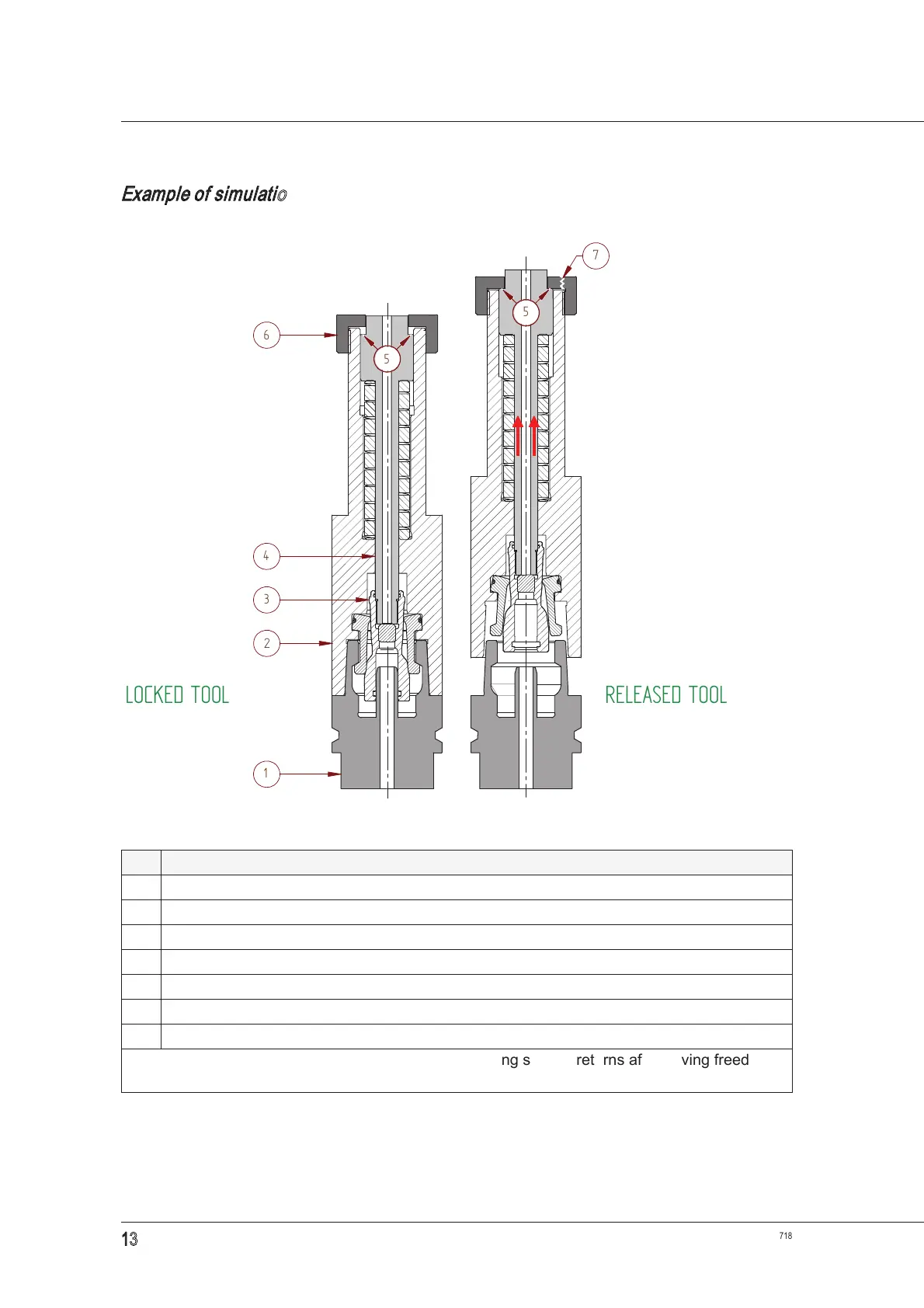

Example of simulation with tool holder HSK
N. Description
1 HSK cone
2 Spindle shaft
3 HSK collet
4 Screw dowel
5 Point at which the screw dowel will hit the safety ring nut
6 Safety ring nut
7 Cracking of the safety ring nut
The red arrows indicate the direction in which the locking system returns after having freed the
cone
Impact
IMPACT
Locked tool
LOCKED TOOL
Released tool
RELEASED TOOL
