IBM 6400

2–30
6400 Line Matrix Printers Setup Guide, Cabinet and Pedestal Models
5. Hold the I/O cable below its connector, and gently push the cable
through the opening in the grommet seated in the notch.

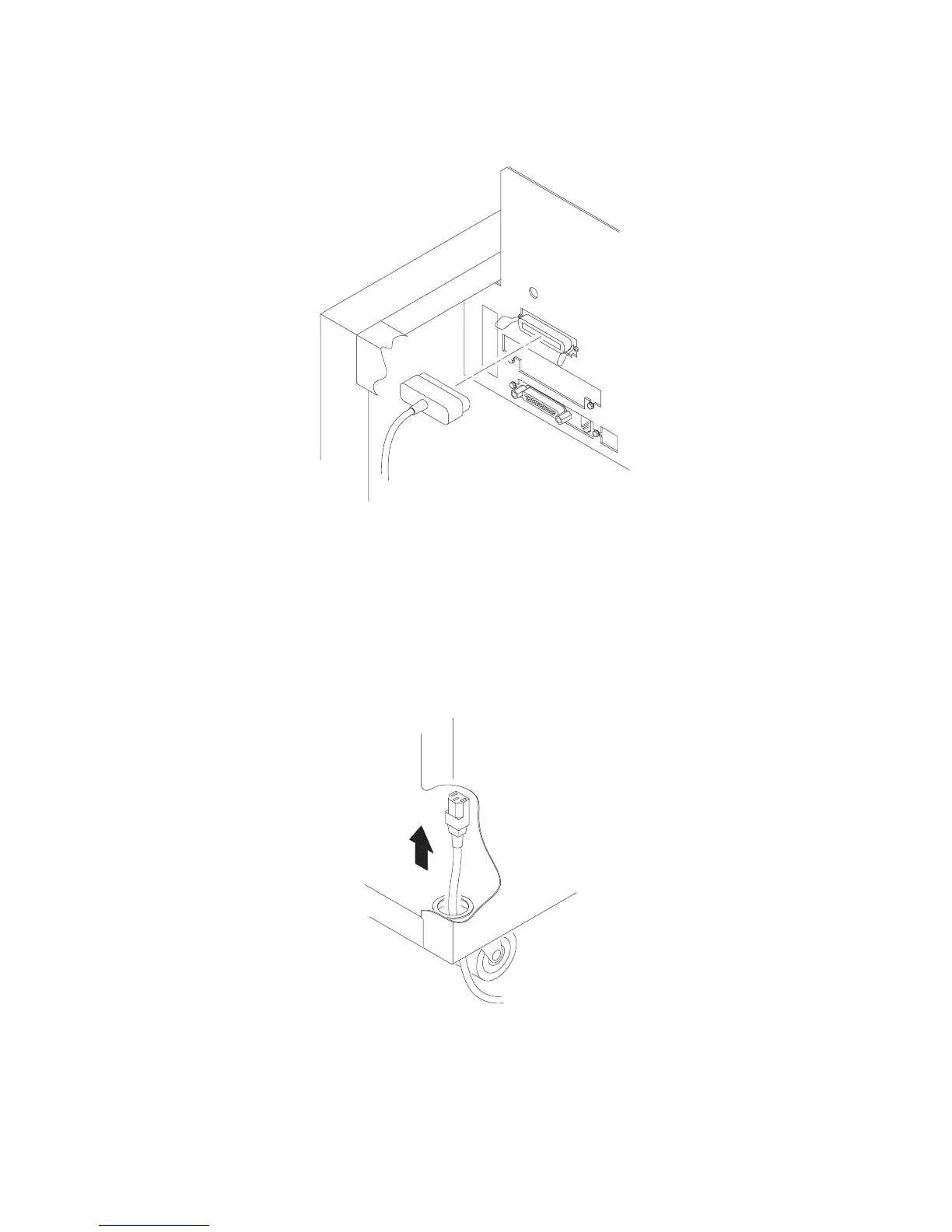

Figure 2–20. Cable Connector Attachment
6. Pull the cable up through the notch until it reaches the I/O plate.
Attach the cable connector to the printer interface connector
previously selected in step 3 of this section. Secure the cable to
the printer using the two cable standoffs. See Figure 2–15.
Figure 2–21. Routing the Power Cord
