6. Slide the library chassis into the rack. Secure the front of the library to the rack with the large black
screws ▌11▐ in the bottom holes on each front bracket (Figure 149).
7. Secure the rear of the library to the rack with 2 round-head screws ▌10▐ on each rear bracket
(Figure 150). Tighten the other rear bracket screws to secure the library to the rack.
8. Run the SAS cable, power cable, and Ethernet cable through the hook-and-loop fastener strap ▌12▐,
then tighten the strap (Figure 151 on page 153)

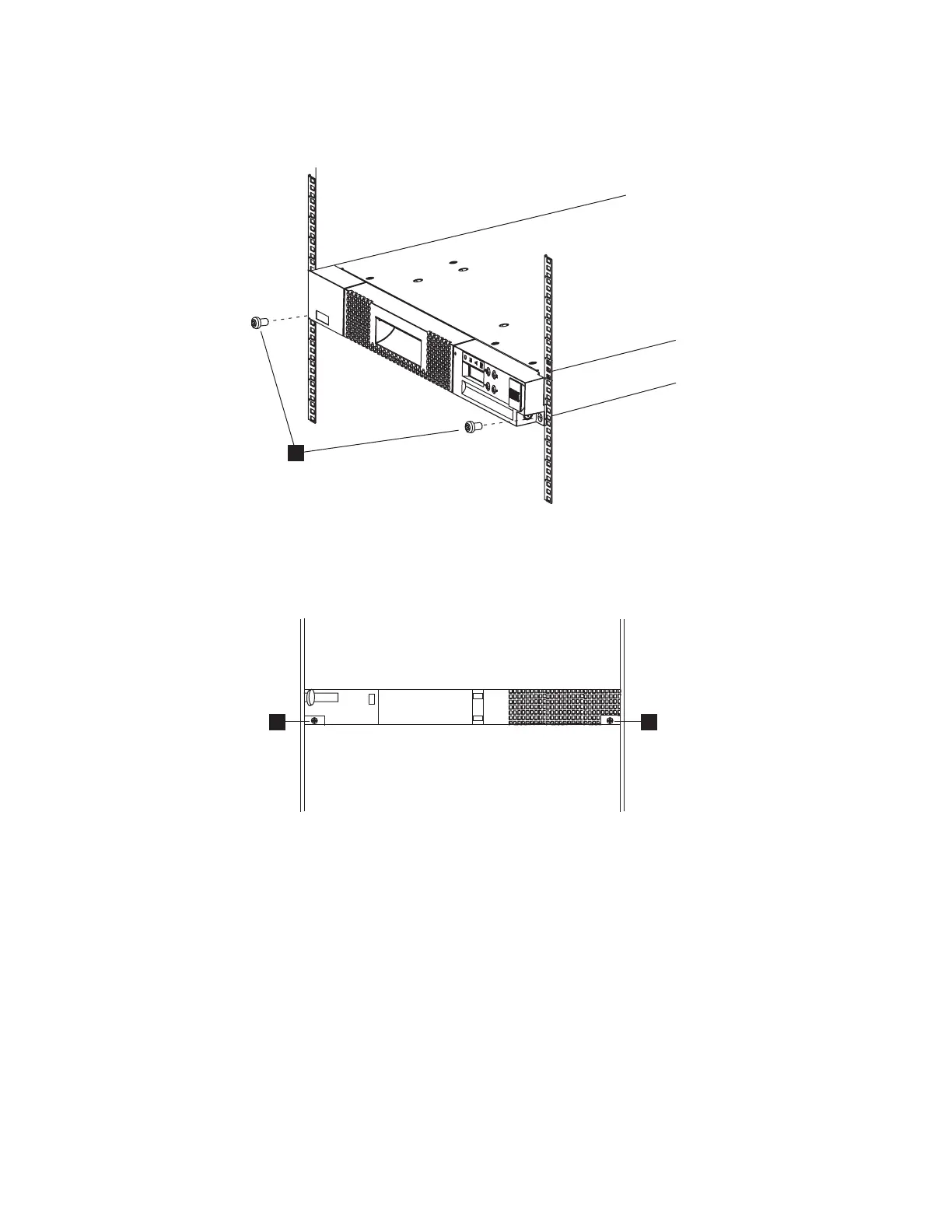

Figure 149. Securing the front of the library in the rack
Figure 150. Securing the rear of the library in the rack
152 IBM TS2900 Tape Autoloader: Setup, Operator, and Service Guide Machine Type 3572
