IDEC SmartRelay Manual
249
UDF (User-Defined Function)

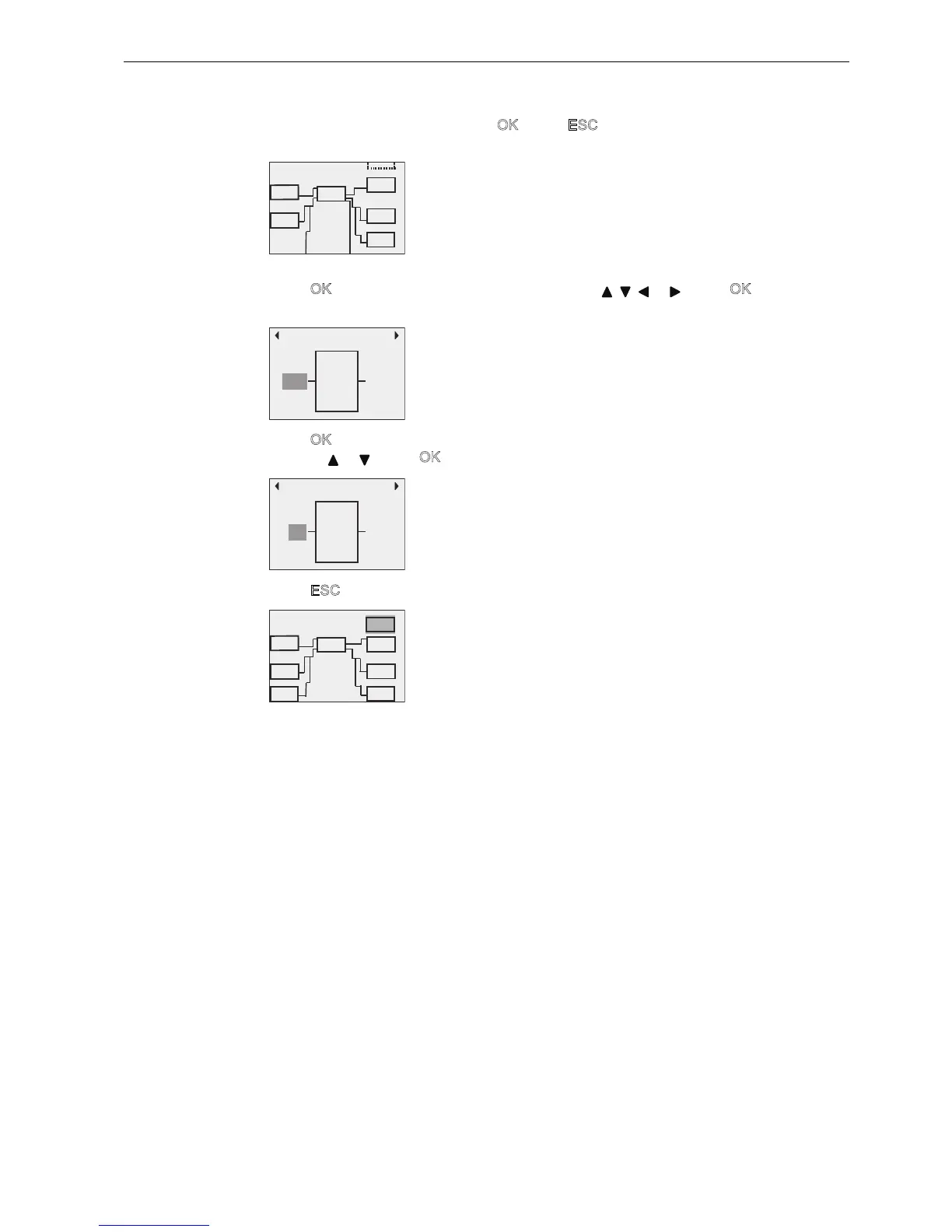

3. Confirm your selection by pressing O. Press ESC and IDEC SmartRelay shows the
following display:
Now U1 is connected to 3.
4. Press O
and move the cursor to 1 by pressing , , or . Press O and IDEC
SmartRelay shows the following display:
5. Press O
and the cursor appears in a flashing solid suare. Select an empty input by
pressing or . Press O and IDEC SmartRelay shows the following display:
6. Press E
SC and IDEC SmartRelay shows the following display:
Now the connection between U1 and 1 is removed.
ou have changed the element connected to the first output of U1 from 1 to 3.
