JLG 4394RT - Air Cleaner System; Air Cleaner System (GM Engine)

SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-67
Air Cleaner System
ALLOW ENGINE AND COMPONENTS TO COOL DOWN BEFORE SERVICING.
REMOVAL:
1. Disable machine operation.
2. Pull the rubber elbow (3) off of the air cleaner (1) and air
intake tube (4).
3. Pull the air intake tube out of the sleeve (5). Pull the
sleeve and air intake tube (6) out of the engine.
4. Loosen the bolt on the mounting bracket (2) to remove
the air cleaner (1).
NOTE: The filter element can be removed from the air cleaner by
releasing the latches on the end of the air cleaner. Replace
filter element as needed.
INSTALLATION:
1. Follow Removal Steps in reverse.
1
2
3
4
5
6

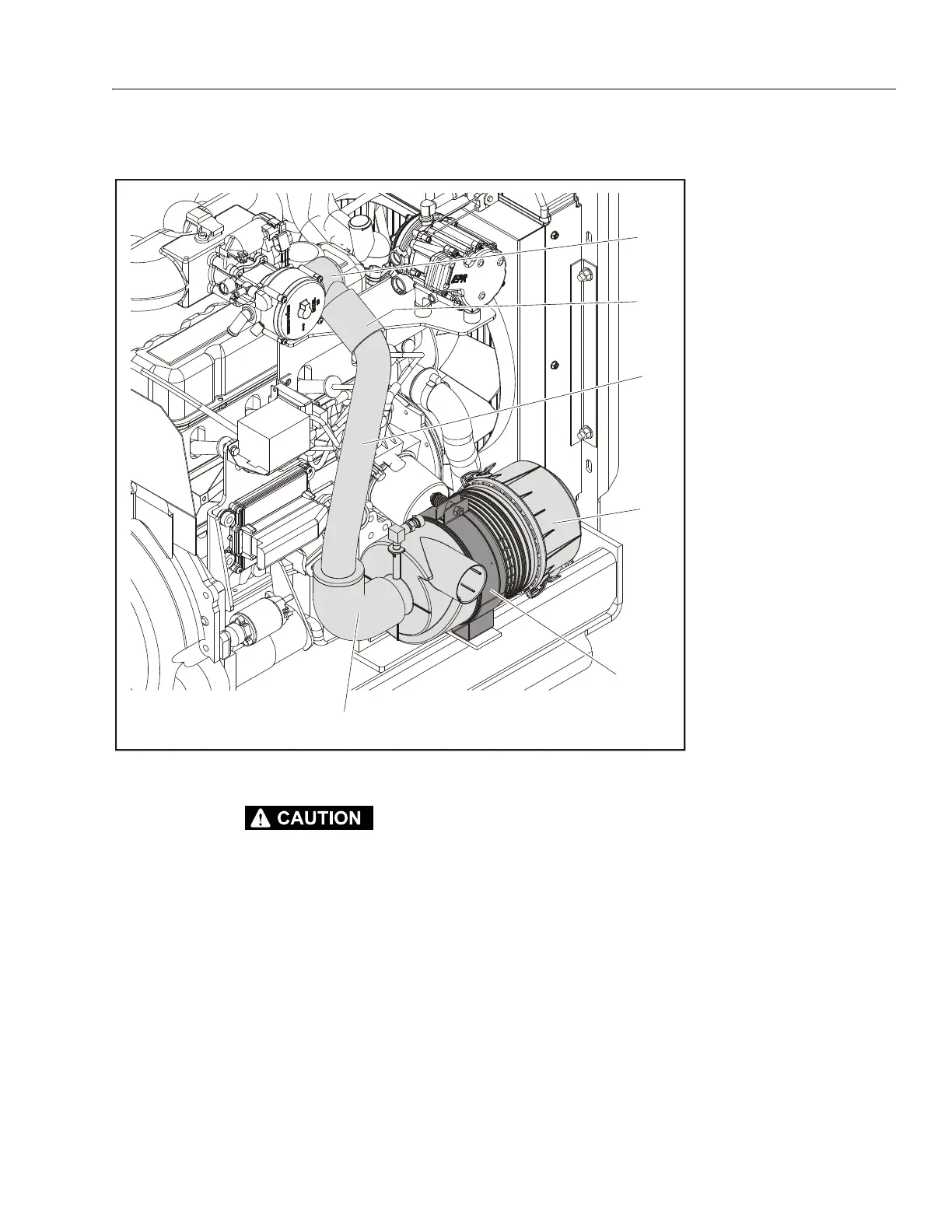

Figure 3-73. Air Cleaner System (GM Engine)
1. Air Cleaner
2. Mounting Bracket
3. Rubber Elbow
4. Air Intake Tube
5. Sleeve
6. Air Intake Tube
