JLG 4394RT - Hub-Spindle Sub-Assembly

SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-13

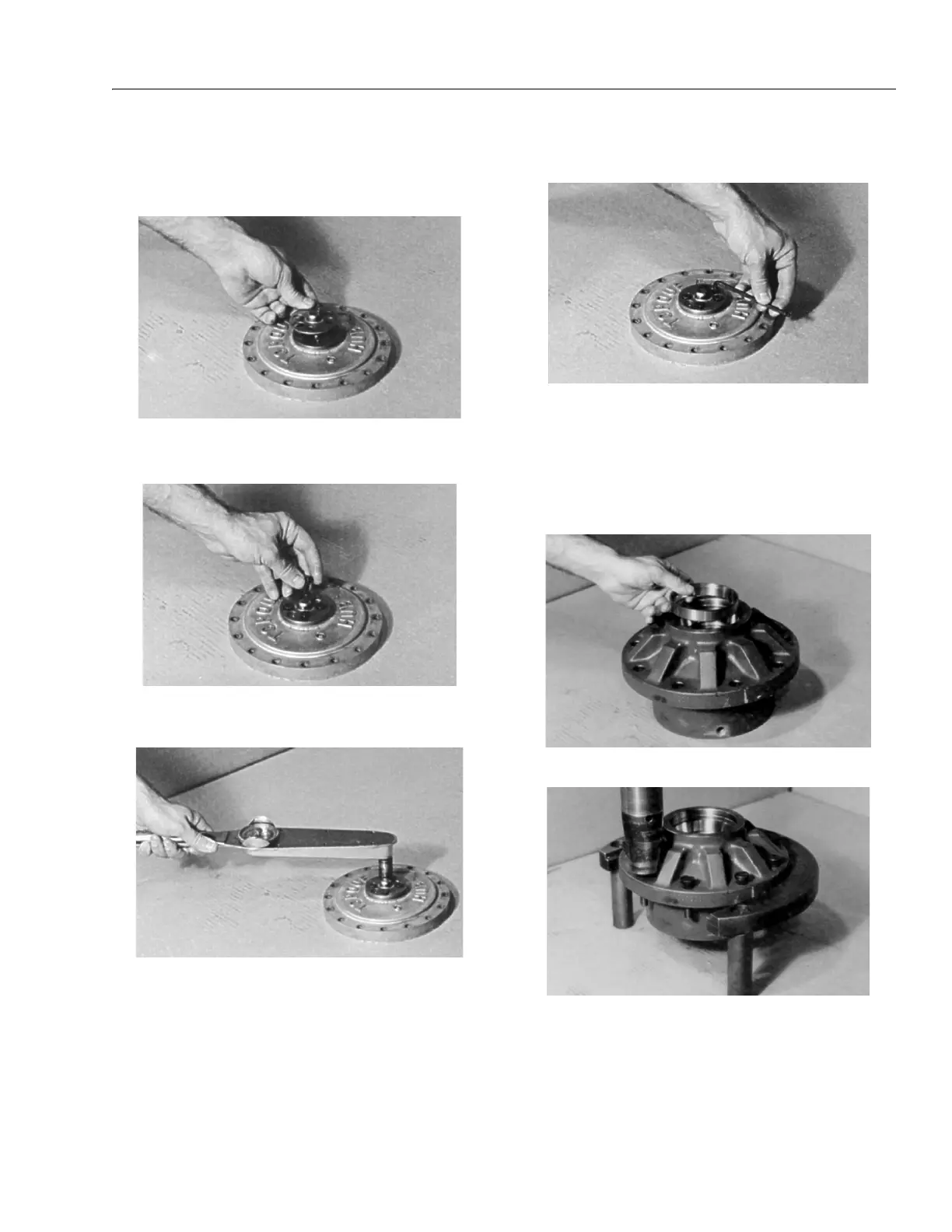

7. With the large end down, place the disconnect cap (6D)
onto the cover cap (6B), aligning the pipe plug hole in
the disconnect cap over the pipe plug hole in the cover
cap.
8. Place the two remaining bolts (6C) into the bolt holes in
the disconnect cap (6D), and tighten the bolts.
9. Using a torque wrench, apply 2.95 to 3.69 ft. lbs. (4 to 5
Nm) of torque to both bolts (6C).
10. Apply a light coat of "Never-Seize" to pipe plug (6H) and
tighten it into the pipe plug hole in the cover (6A).
Hub-Spindle Sub-Assembly
NOTE: Make sure the cup sits square with the counterbore before
pressing.
1. Set hub (1G) onto its large end. Press bearing cup (1C)
into the counterbore in the small end of the hub (1G).
2. Press the nine studs (1N) into the stud holes in hub (1G).
