SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-52 – JLG Lift – 3121642
3.13 BATTERY
REMOVAL:
1. Disconnect the red battery cable from the positive bat-
tery terminal (2).
2. Disconnect the black battery cable from the negative
battery terminal.
3. Remove the bolt, nut, and washers to remove the hold-
down bracket securing the battery in place. Remove
battery.
4. With the positive battery cable disconnected, the fuse
mounting block (5) can be removed by first disconnect-
ing the cables from the block. Remove the bolts, wash-
ers and nuts securing the fuse block to the machine
compartment cover.
INSTALLATION:
1. Place battery in the seat. Positive battery terminal (2)
should be closest to outside of machine.
2. Secure battery in place with the hold-down bracket,
bolt, nut and washers (4).
3. Reconnect red battery cable to positive battery terminal
(2). Secure terminal cover in place over terminal.
4. Reconnect black battery cable to negative battery termi-
nal (3).
5. Secure fuse mounting block (5) to machine using two
bolts, nuts and washers. Reconnect cables.

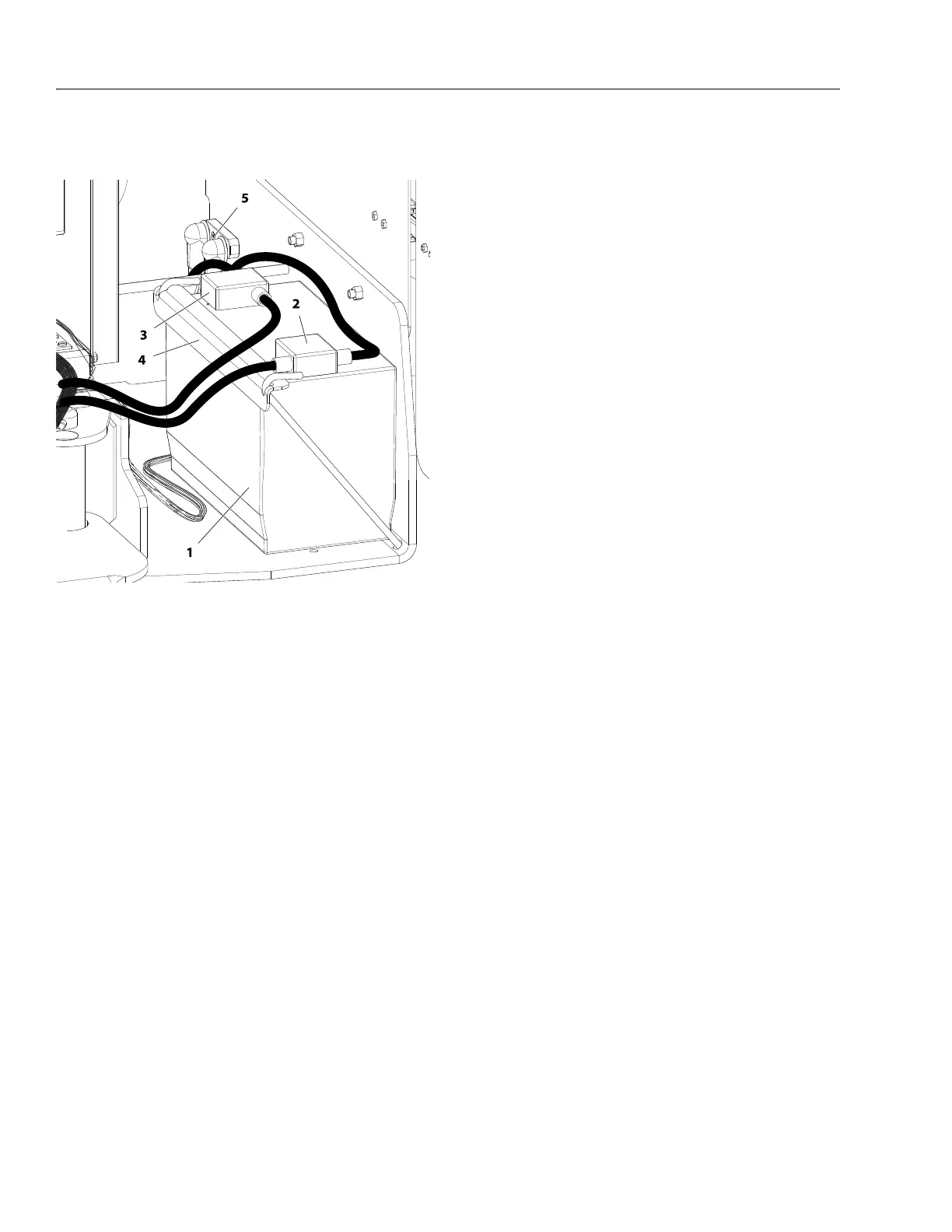

Figure 3-48. Battery Removal
1. Battery
2. Battery Terminal (+)
3. Battery Terminal (-)
4. Bracket, Bolt, Nut & Wash-
ers
5. Fuse Mounting Block
