SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-48 – JLG Lift – 3121642
3.9 SIDE COMPARTMENT COVERS
REMOVAL:
NOTE: Procedures apply to both left and right side compartment
hoods.
1. Elevate the platform to a height where, when removed
and lifted, the compartment covers clear the underside
of the platform. Engage the arm safety prop and/or
block the scissor arms to prevent lowering.
2. Disable machine operation.
3. If removing the main compartment cover, the hinged
cover and any outer covers/doors must be removed first.
4. Attach lifting straps to each end of the large compart-
ment cover and support with an overhead lifting device.
5. Remove the bolts on the hinges and detach the gas
springs to remove the door from the cover.
6. Remove the bolts and washers, from the front covers or
doors, remove and lay aside.
7. Disconnect the the ladder from the support bracket by
removing the bolts, washers and nuts.
8. Remove the bolts and washers, from the front, top and
back of the large compartment cover.
NOTE: On engine side only, remove the exhaust pipe shield from
the cover by removing the bolts, washers, and nuts.
9. Carefully lift the main compartment cover up and away
from the machine.
INSTALLATION:
1. Follow Removal Steps in reverse.

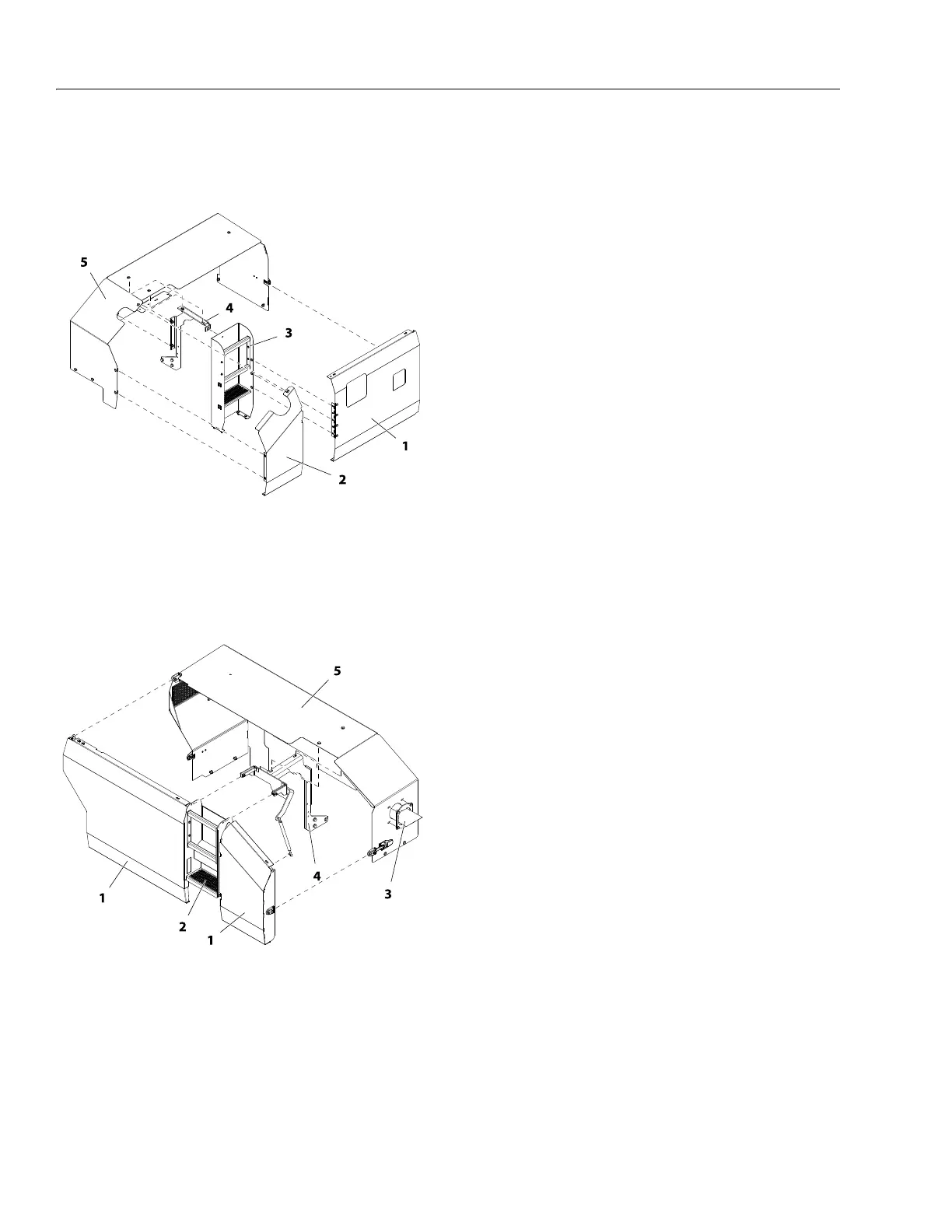

Left Side - Hydraulic/Fuel Compartment Covers
1. Hydraulic Component Door
2. Fuel Tank Cover
3. Ladder Assembly
4. Main Cover Support
5. Main Compartment Cover
Right Side - Engine Compartment Covers
1. Engine Compartment Door
2. Ladder Assembly
3. Exhaust Pipe Shield
4. Main Cover Support/Engine Door
Hinge Point
5. Main Compartment Cover
