JLG 4394RT - 4.14 Cylinder Assemblies

SECTION 4 - HYDRAULICS
3121642 – JLG Lift – 4-33
4.14 CYLINDER ASSEMBLIES
NOTE: Apply ant-seize lube to threads of Cylinder Head (3) and
torque to 200 lb-ft (271.2 Nm).
11
10
2
8
9
3
7
6
5
4
1
4
5
6
7
3
9
8

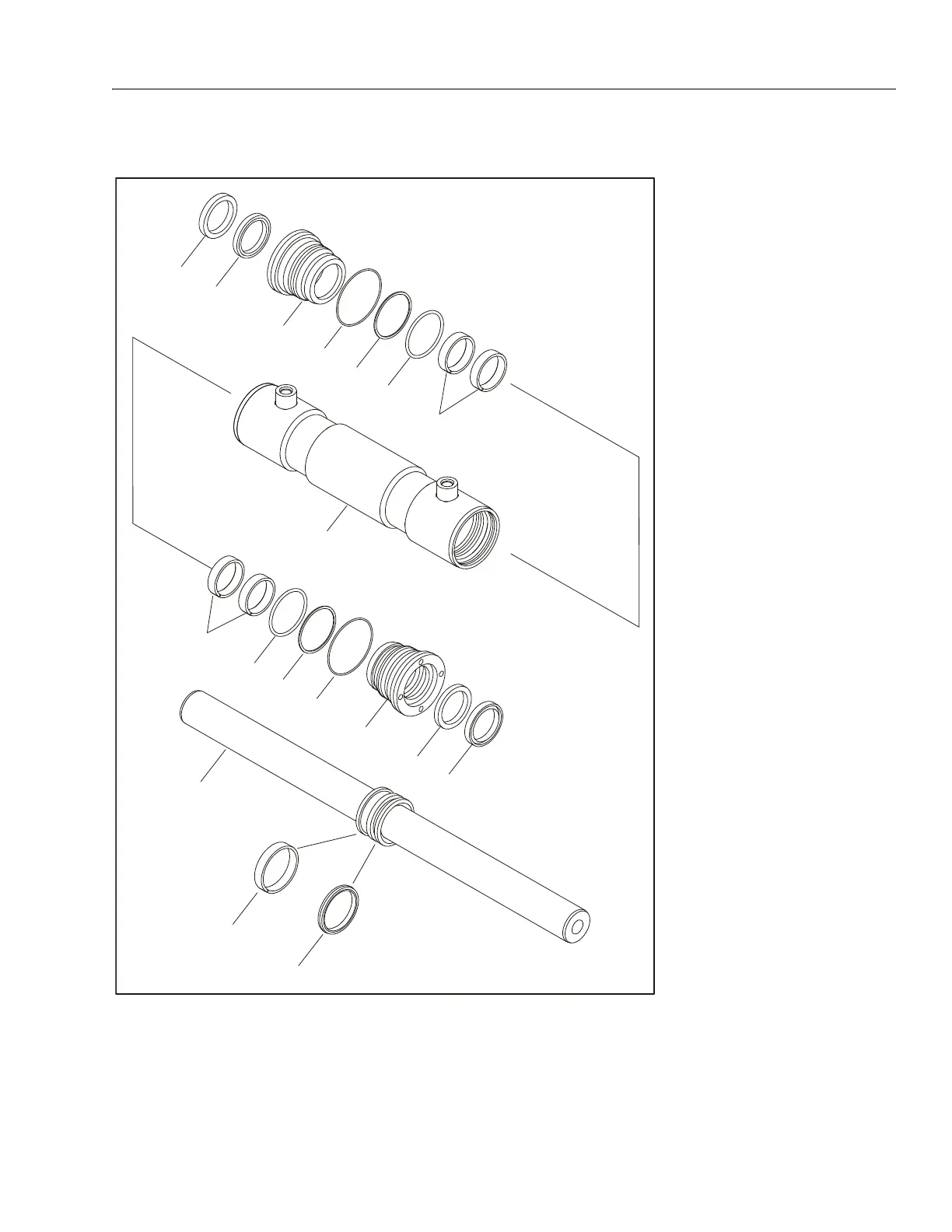

Figure 4-28. Steer Cylinder
1. Barrel Weldment
2. Rod Weldment
3. Cylinder Head
4. Wear Ring
5. O-ring
6. Back-up Ring
7. O-ring
8. Wiper
9. Seal
10. Wear Ring
11. T-Seal
