SECTION 1 - SPECIFICATIONS
3121642 – JLG Lift – 1-5
1.13 MAINTENANCE SPECIFICATIONS
TO AVOID PERSONAL INJURY, USE SAFETY PROP FOR ALL MAINTENANCE
REQUIRING PLATFORM TO BE ELEVATED.
NOTE: Be sure to lubricate like items on each side.
NOTE: Recommended lubricating intervals are based on machine
operations under normal conditions. For machines used in
multi-shift operations and/or exposed to hostile environ-
ments or conditions, lubrication frequencies must be
increased accordingly.
Operate hydraulic functions through one complete cycle
before checking hydraulic oil level in tank. Oil should be
visible in ADD sight window on hydraulic tank. If oil is not
visible, add oil until oil is visible in both ADD and FULL
sight windows on tank. Do not overfill tank.
Any time the pump coupling is removed, coat splines of
coupling with Texaco Code 1912 grease prior to assembly.

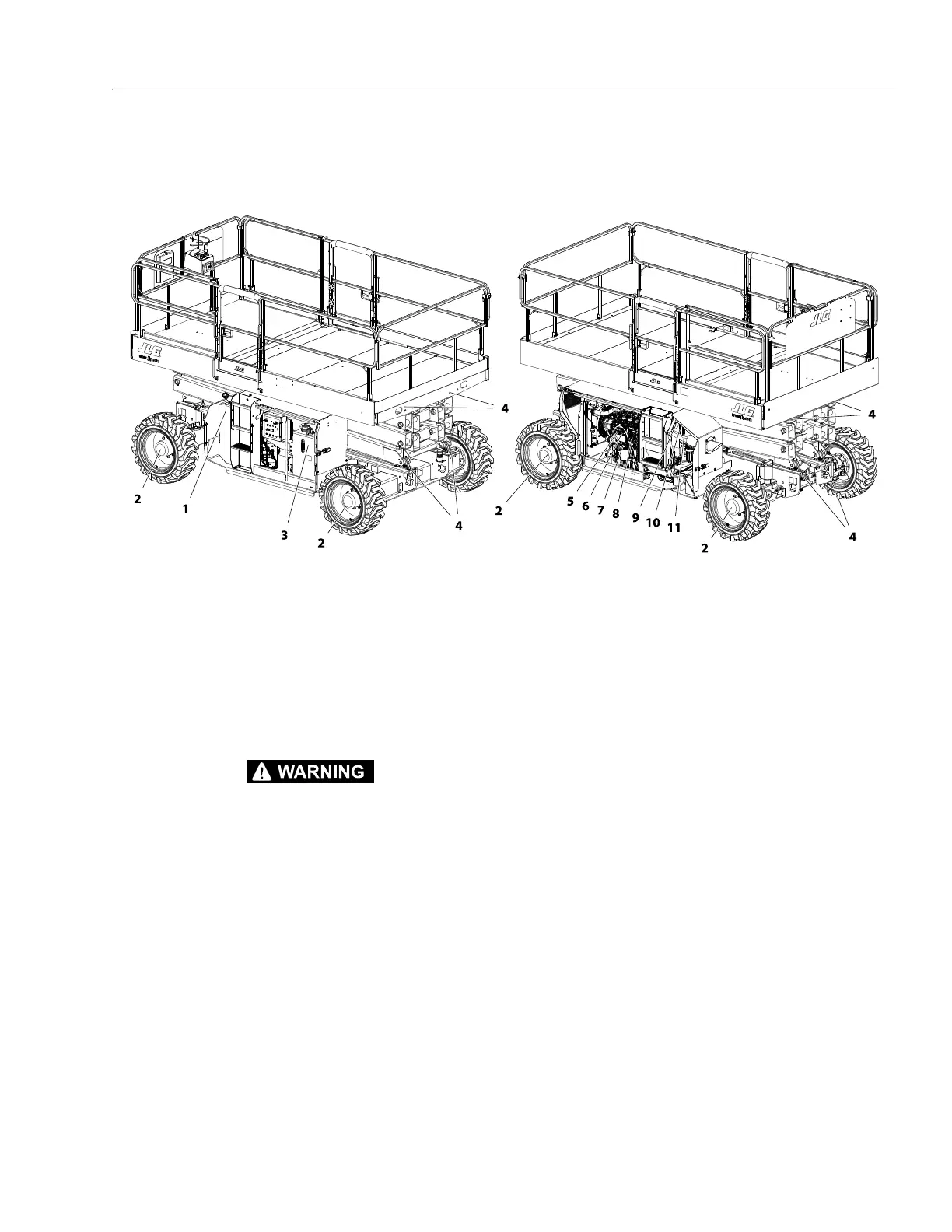

Figure 1-2. Maintenance and Lubrication Diagram
1. Fuel Tank
2. Drive Hubs
3. Hydraulic Oil Tank
4. Sliding Wear Pads
5. Oil Change w/Filter - Deutz
6. Oil Change w/Filter - GM
7. Fuel Filter - Deutz
8. Fuel Filter (Gasoline) - GM
9. Air Filter
10. Electronic Pressure Regulator (LP Only)
11. Fuel Filter (Propane) - GM
To Next Page
