SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-56 – JLG Lift – 3121642
Exhaust System
ALLOW ENGINE AND COMPONENTS TO COOL DOWN BEFORE SERVICING.
REMOVAL:
1. Disable machine operation.
2. Remove the tail pipe (1) by removing the attaching
bolts, washers and nuts.
3. Loosen clamp (3), and remove the exhaust pipe (2).
4. Loosen clamp (6) and bracket clamps (5) holding the
catalyst assembly to the mounting bracket. Remove cat-
alyst assembly.
5. Loosen clamp (8) and remove the compensator assem-
bly.
INSTALLATION:
1. Follow Removal Steps in reverse.

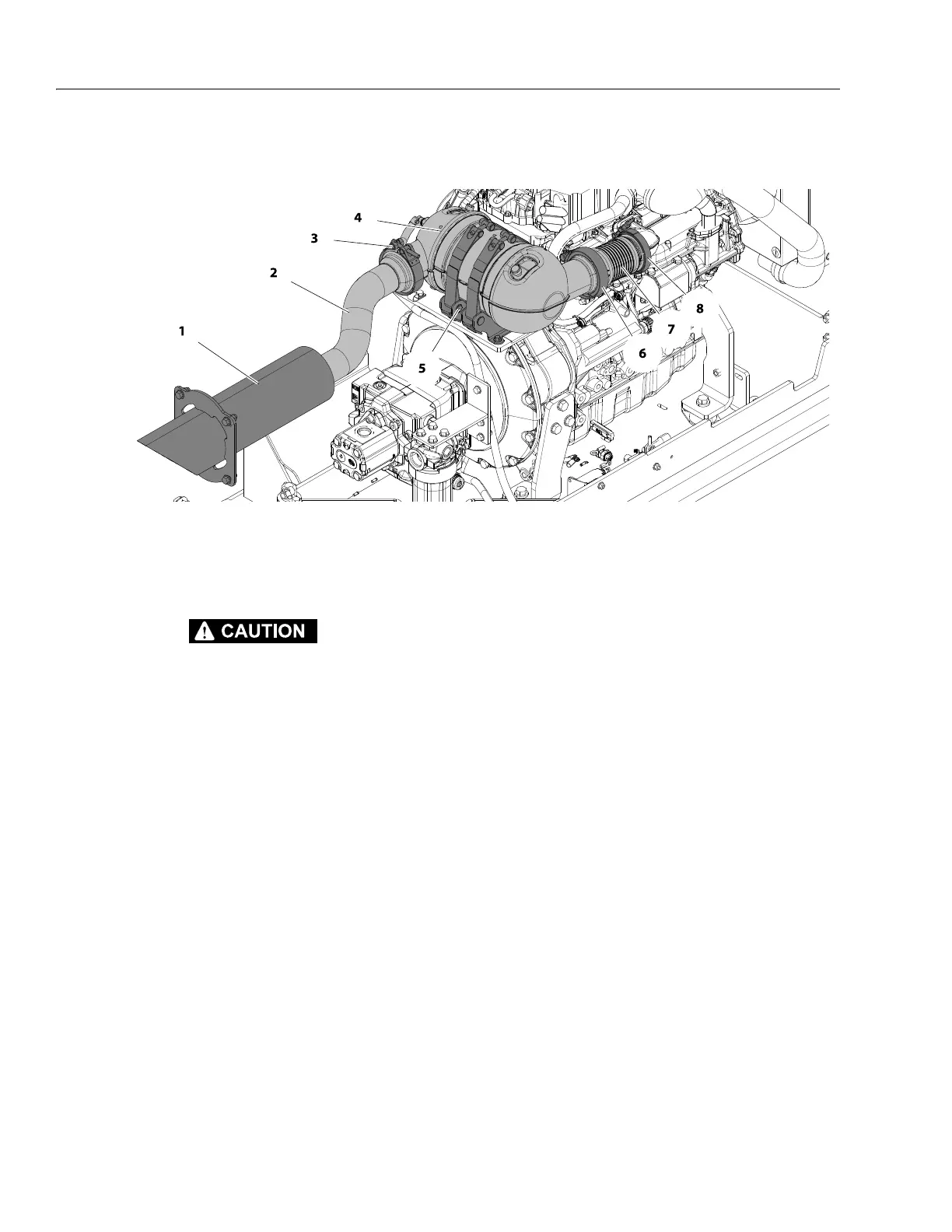

Figure 3-50. Exhaust System (Deutz Engine)
1. Tail Pipe
2. Exhaust Pipe
3. Clamp
4. Catalyst Assembly
5. Catalyst Bracket/Clamp
6. Clamp
7. Compensator
8. Clamp
