SECTION 4 - HYDRAULICS
4-14 – JLG Lift – 3121642
4.9 VALVES
REMOVAL:
1. Disconnect, cap and lable all hydraulic hoses and any
electrical harness connected to valves.
2. Remove the valve blocks from the hydraulic tray by
removing the attaching bolts.
INSTALLATION:
1. Re-attach valve blocks to tray with bolts.
2. Re-connect all hydraulic lines and electrical harness.

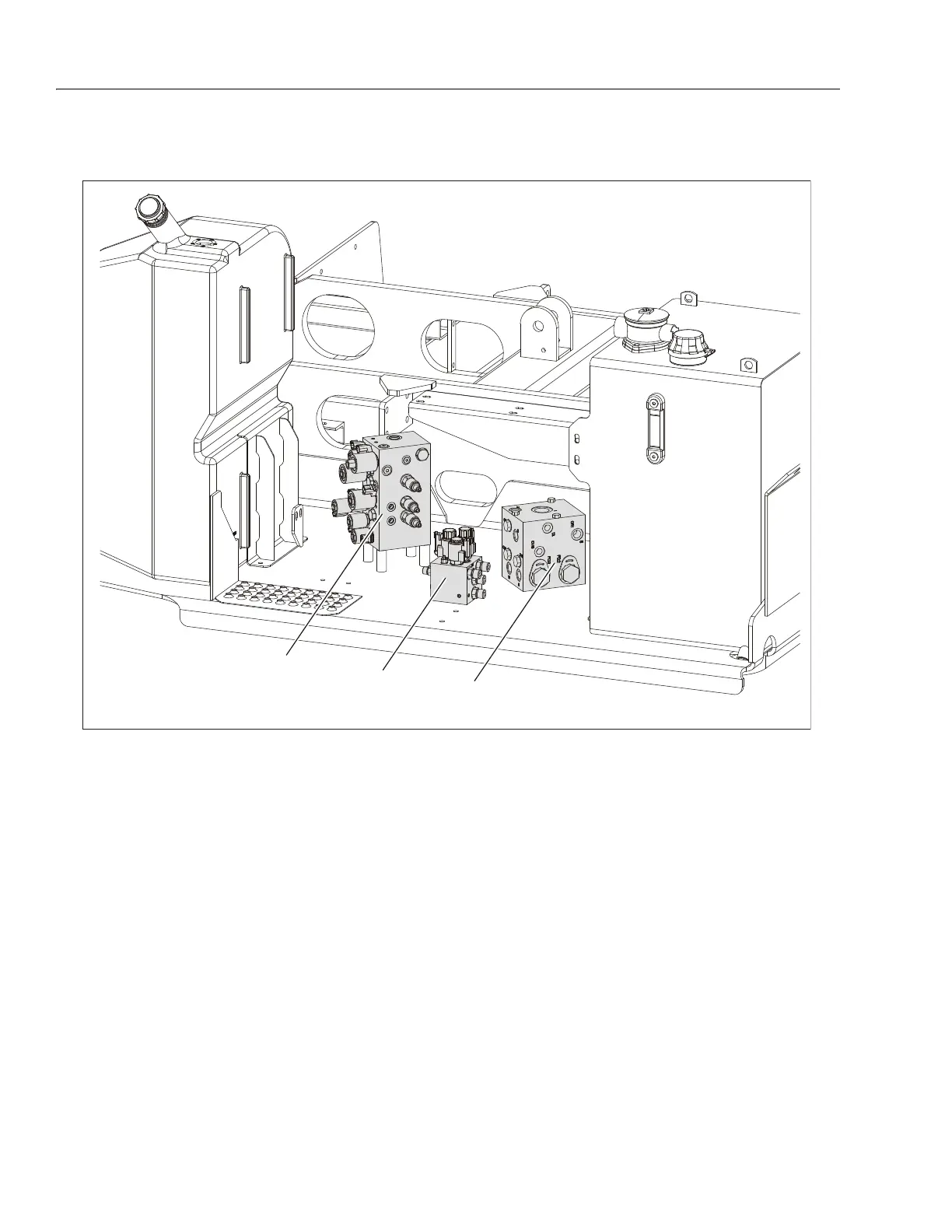

1. Main Valve 2. Flow Divider Valve 3. Outrigger Directional Valve
Figure 4-15. Hydraulic Compartment
