3.15 DEUTZ ENGINE
Engine Tray
Deutz EMR 4
Refer to Deutz Engine Manual supplied with the machine for
engine servicing and troubleshooting information.
1,2,3
1. Bolt, 5/8"-11NC x 2"
2. Nut
3. Washer

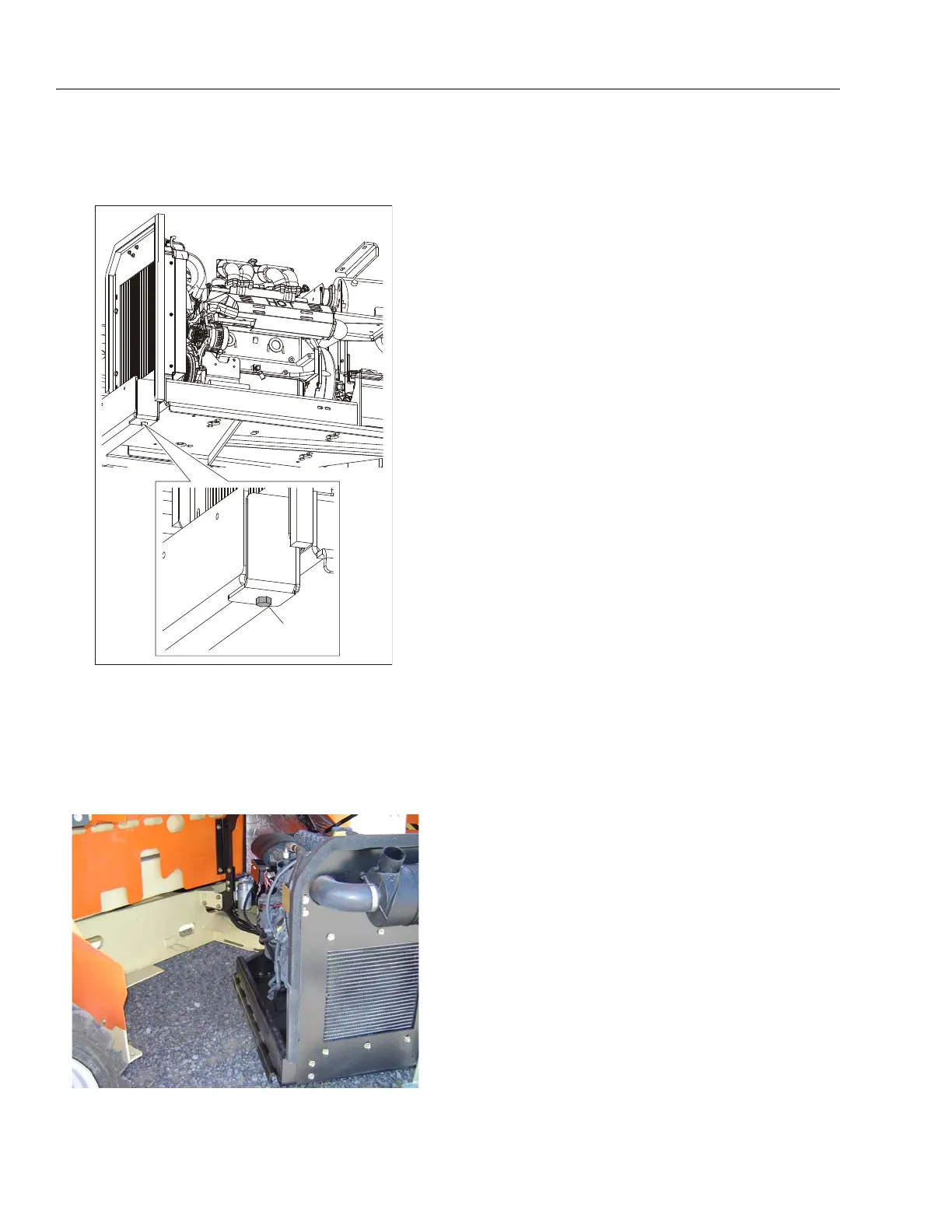

NOTE: When servicing the engine and components,
remove the bolt (1), nut (2) and washer (3) to swing
the engine tray out for better access (as shown
below).
Figure 3-49. Engine Tray Swing
