5. Install the drive motor on the hub, then release the
hydraulic pressure at the brake release port. The cou-
pling will remain in position.
Disconnect the hydraulic power supply and reconnect the line
going into the brake release port.
3.4 DRIVE MOTOR (SAUER)
Description
The drive motors are low to medium power, two-position axial
piston motors incorporating an integral servo piston. They are
designed for operation in both open and closed circuit appli-
cations. The standard control is a direct acting single line
hydraulic control. The integral servo piston controls motor dis-
placement.
The motors are spring biased to maximum displacement and
hydraulically shifted to minimum displacement. Minimum and
maximum displacement can be set with fixed internal stops.
The large diameter servo piston allows smooth acceleration
and deceleration with relatively large circuit orificing.
Shaft Seal Replacement
REMOVAL
1. Remove the snap ring (1) retaining the shaft seal and
support washer.
2. Remove the support washer (2).
3. Carefully pry out the shaft seal (3).
To avoid damaging the shaft during removal, install a
large sheet metal screw into the chuck of a slide ham-
mer. Drive the screw into the seal surface and use the
slide hammer to pull the seal.
4. Discard the seal.
Bias spring
Servo piston
Swashplate
Output
Shaft
Piston
Slipper
Cylinder
Block
Endcap
Shaft
Seal
Bearing
Minimum
Angle
Stop
Va lv
e plate

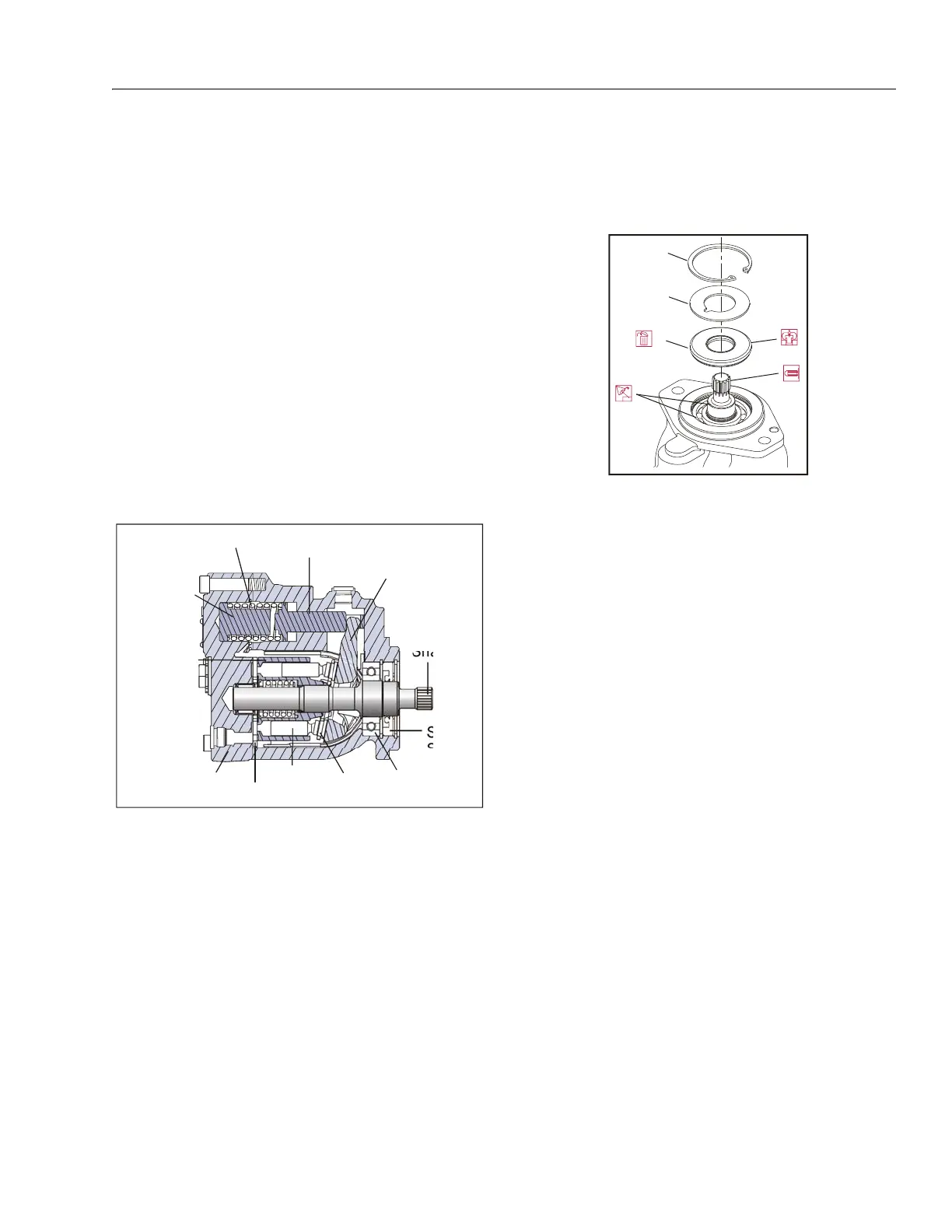

Figure 3-5. Drive Motor Cross Section
1. Snap Ring
2. Support Washer
3. Shaft Seal
Figure 3-6. Removing the Shaft Seal
