JLG 4394RT - Drive Hub (Cross-Section)

SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-8 – JLG Lift – 3121642
1. Hub-Spindle Sub-Assembly
1 A. Spindle
1 B. Seal
1 C. Bearing Cup
1 D. Bearing Cone
1 E. Bearing Cup
1 F. Bearing Cone
1 G. Hub
1 H. Spacer
1 I. Retaining Ring
1 J. Pipe Plug
1 K. Stud
2. Internal Gear
3. Carier Sub-Assembly
3 A. Carrier Housing
3 B. Thrust Washer
3 C. Needle Roller
3 D. Spacer
3 E. Planet Shaft
3 F. Cluster Gear
3 G. Roll Pin
4. Ring Gear
5. O Ring
6. Cover Sub-Assembly
6 A. Cover
6 B. Cover Cap
6 C. Bolt
6 D. Disconnect Cap
6 E. Disconnect Rod
6 F. O Ring
6 G. O Ring
6 H. Pipe Plug
6 I. ID Plate
7. Input Shaft Sub Assembly
7 A. Seal
7 B. Retaining Ring
7 C. Spring
7 D. Spacer
8. Input Gear
9. Thrust Spacer
11. Thrust Spacer
12. Bolt
13. Shoulder Bolt
14. Coupling
16. Flat Washer

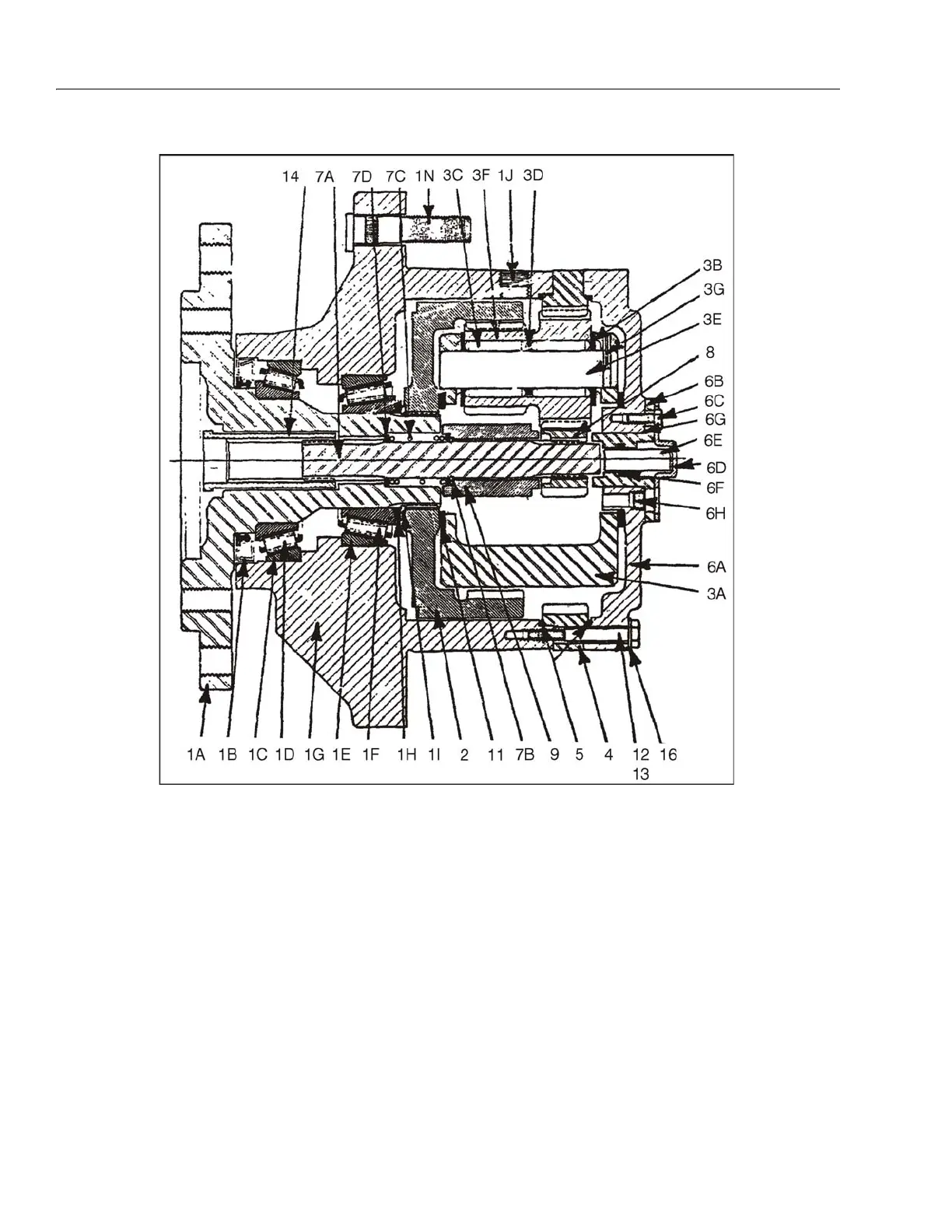

Figure 3-3. Drive Hub (Cross-Section)
