JLG 4394RT - Oscillating Axle Cylinder

SECTION 4 - HYDRAULICS
4-36 – JLG Lift – 3121642
1
2
6
7
8
9
4
3
4
5
1. Barrel
2. Rod
3. Wiper
4. Wear Ring
5. Rod Seal
6. Plug
7. Piston Pilot
8. Check Valve
9. Bleeder Valve
NOTE: Torque item #8 to 25-27 lb-ft
(34-37 Nm)

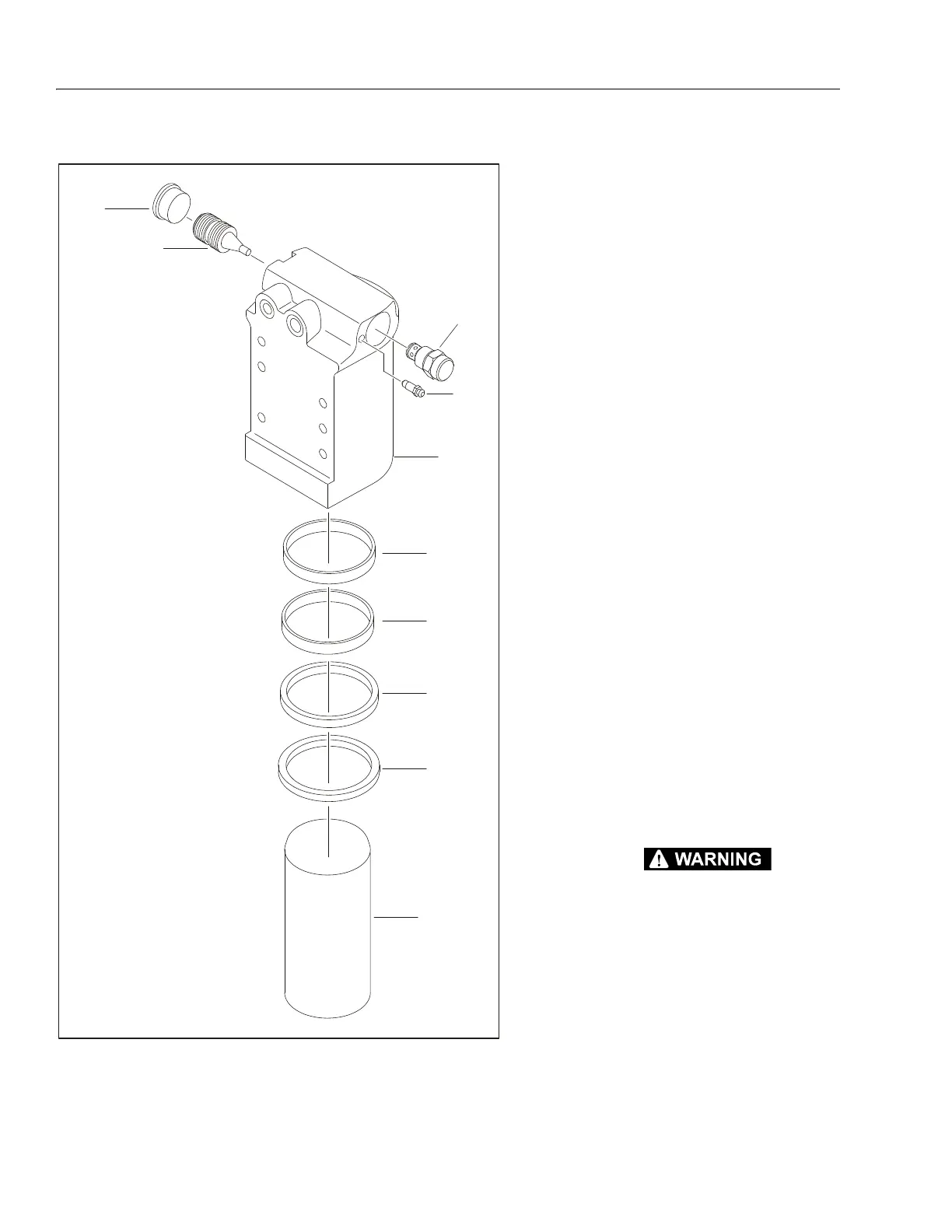

Figure 4-31. Oscillating Axle Cylinder
THE CYLINDER ROD CAN SLIDE OUT OF THE CYLINDER IF
THE BLEEDER VALVE IS LOOSENED.
