SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-81

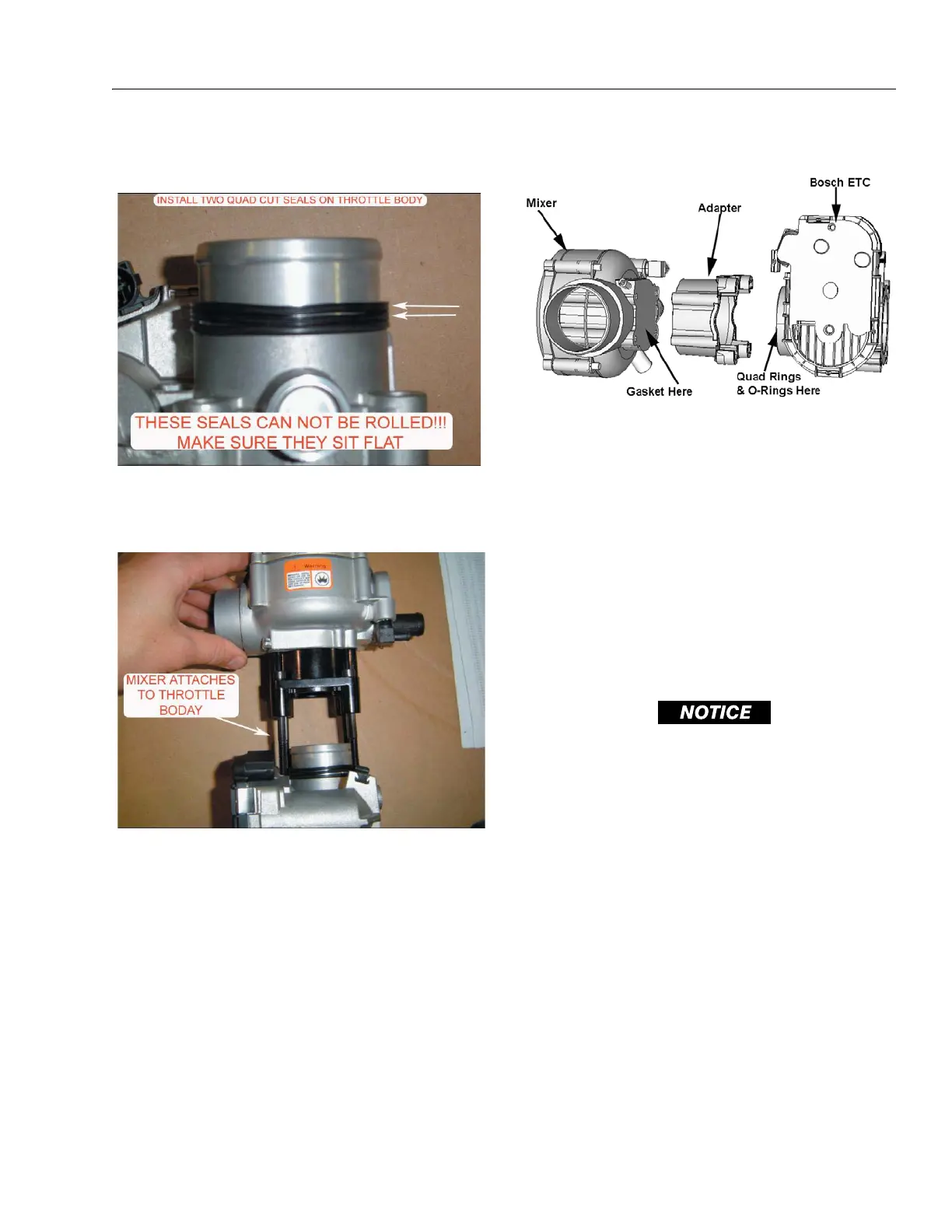

2. Install the two quad seals. Install one seal at a time to
ensure the seal does not roll. The seal must sit flat on
the throttle body.
3. Attach mixer and throttle body together. The two parts
do not bolt together; they will be secured when you
mount it on the intake. Notice the orientation of the air
inlet and throttle body cover.
4. Place gasket on intake manifold and attach mixer/throt-
tle assembly to manifold.
Mixer Replacement
See Figure 3-92.
REMOVAL:
1. Remove the throttle control device. Refer to Electronic
Throttle Body Replacement.
2. Remove the four (4) bolts to the throttle control device
to mixer adapter bolts.
3. Remove and discard the gasket between the mixer and
adapter.
INSTALLATION:
COVER THROTTLE BODY ADAPTER OPENING TO PREVENT DEBRIS FROM
ENTERING ENGINE UNTIL REASSEMBLY.
1. Install the gasket onto the mixer.
2. Install the mixer to the throttle control device to mixer
adapter. Secure with 4 retaining screws. Tighten 80 lb-in
(9 Nm).
3. Install throttle body. Refer to Electronic Throttle Control
Device Replacement.
4. Start the engine and leak check all fittings and connec-
tions.
Figure 3-92. Mixer Assembly
