SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-55
Generator (if equipped)
ALLOW ENGINE AND COMPONENTS TO COOL DOWN BEFORE SERVICING.
REMOVAL:
1. Disable machine operation. Disconnect and label elec-
trical wires attached to generator (1).
2. Remove the generator from the engine (2) by removing
the three bolts (3, 5) and washers (4, 5).
3. Replace belt if damaged.
INSTALLATION:
1. Follow Removal Steps in reverse. Ensure belt is tight
before securing generator with the bolts.
NOTE: Apply Loctite® #242 to the bolts (3, 5).
1. Generator (120V or 220V)
2. Deutz Engine
3. Bolt, 5/16"-18NC x 1"
4. Washer
5. Bolt, 7/16"-14NC x 2 1/4"
6. Washer
7. Voltage Regulator

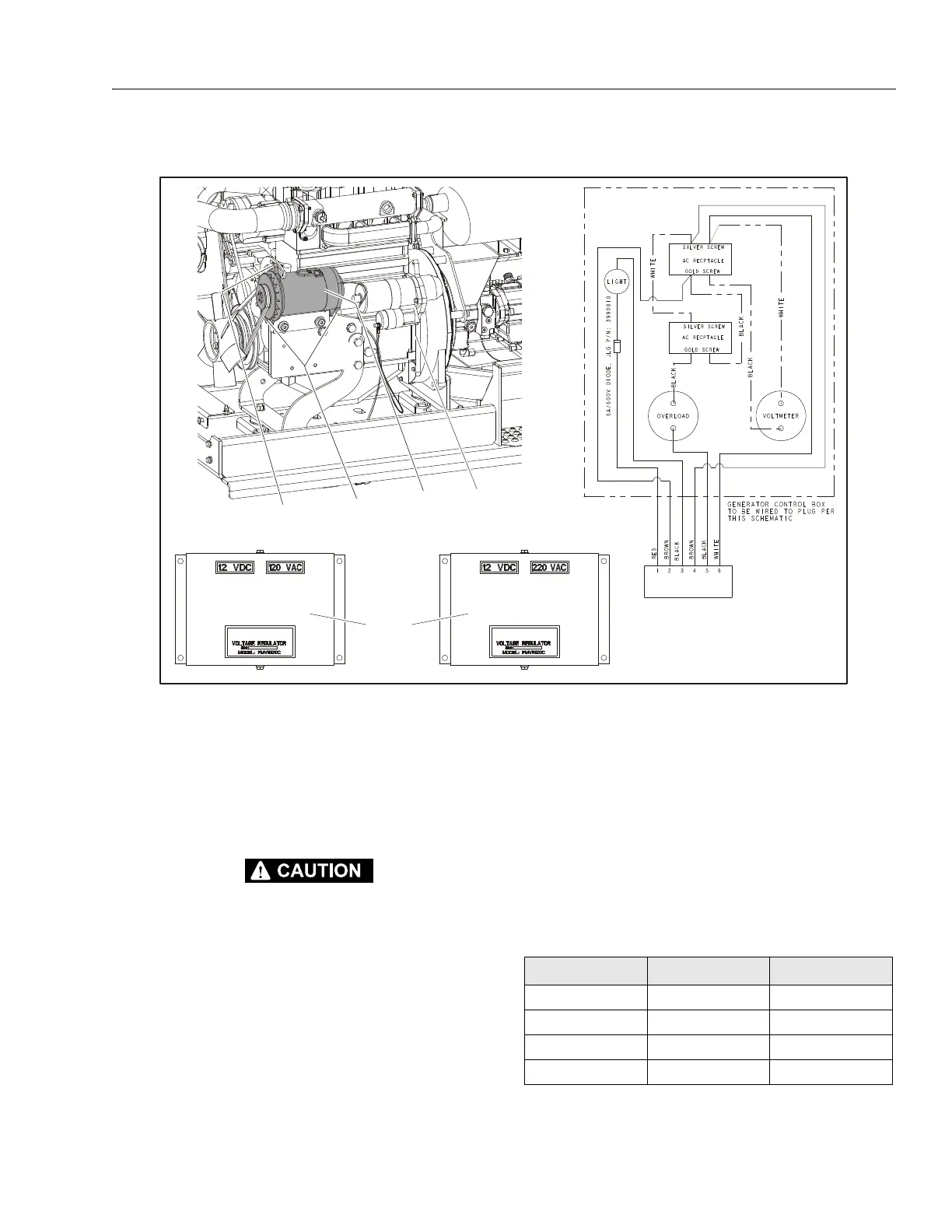

Figure 3-49. Generator (Deutz Engine)
Table 3-11. Generator Specifications
Description 110 Bluemax 220 Powermax
Voltage 120V 220V
Continuous 3.5 KW 2.0 KW
Peak 4.5 KW 3.0 KW
Amps Peak 37 Amps 13 Amps
