SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-51
3.12 HYDRAULIC TANK
REMOVAL:
NOTE: It is recommended to remove the side compartment cover
before attempting to remove the hydraulic tank (refer to
Section 3.9, Side Compartment Covers).
1. Disable machine operation.
2. Drain hydraulic fluid from hydraulic tank (1) by opening
the drain plug (2). Store hydraulic fluid in appropriate
receptacle.
3. Disconnect, cap and label all hoses connected to tank.
4. Remove the ground control box (not shown) (refer to
Figure 3-44., Ground Control Station Removal) and
ground control box mount (3) from the tank by remov-
ing the four bolts (4) washers (5) and nuts (6).
5. Remove the two bolts (7), washers (8) and nuts (9)
attaching the hydraulic tank to the machine. Remove
tank from machine.
NOTE: Hydraulic tank has two lifting lugs on the top corners for
lifting.
Empty tank weighs approximately 105 lbs (47.6 kg).
INSTALLATION:
1. Follow Removal Steps in reverse.
2. Ensure drain plug (2) is closed. Refill hydraulic tank (1)
with 34 gal (128.7 ltr) hydraulic fluid.
1. Hydraulic Tank
2. Drain Plug
3. Ground Control Box Mount
4. Bolt, 3/8"-16NC x 1"
5. Washer
6. Nut
7. Bolt, 3/8"-16NC x 1 1/8"
8. Washer
9. Nut

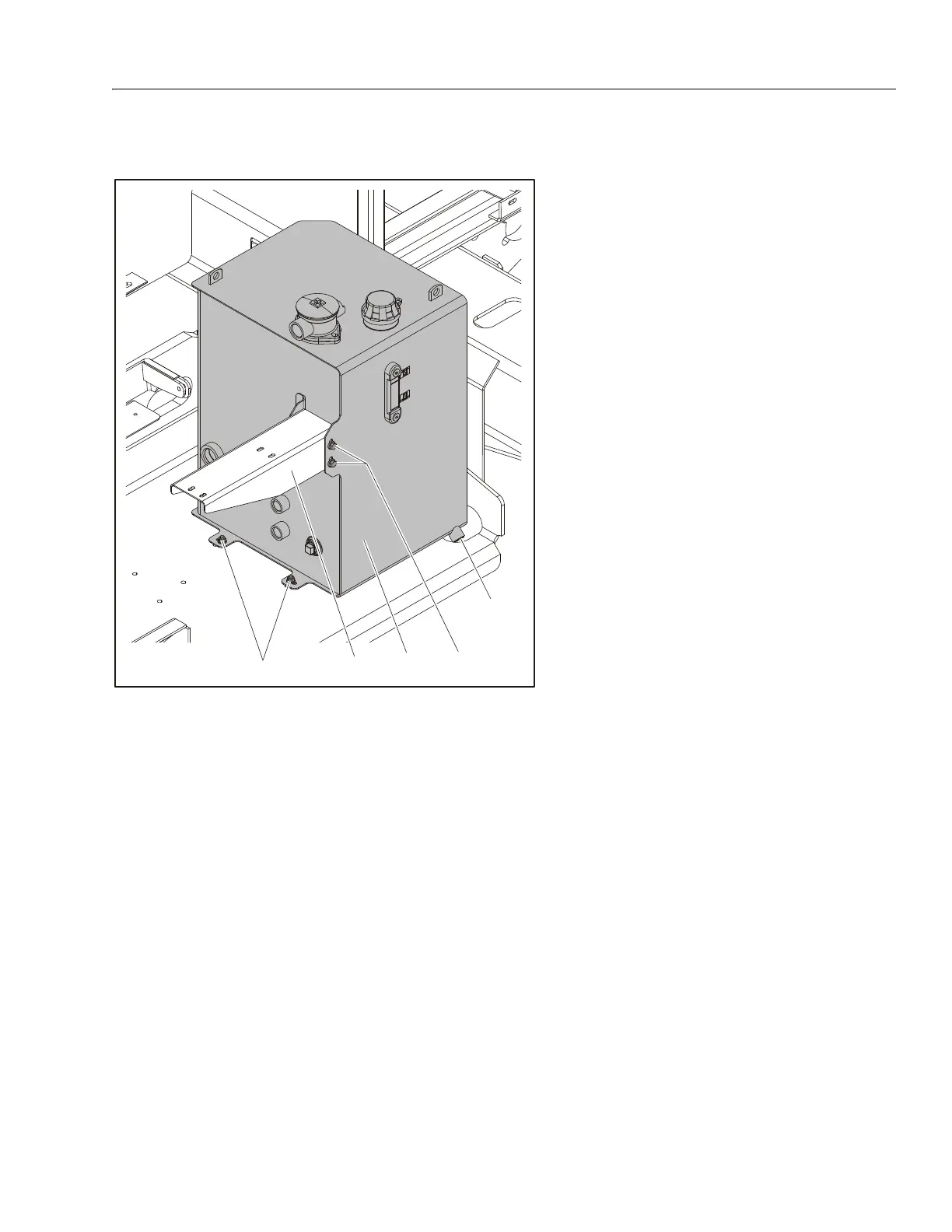

Figure 3-47. Hydraulic Tank Removal
