SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-57
Air Cleaner System
ALLOW ENGINE AND COMPONENTS TO COOL DOWN BEFORE SERVICING.
REMOVAL:
1. Disable machine operation.
2. Loosen the clamp (4) attaching the 90° elbow to the air
cleaner assembly (1). Disconnect the elbow and intake
pipe from the air cleaner assembly.
3. Loosen the clamp (4) attaching the 90° elbow to the
intake manifold. Remove the complete intake pipe from
the engine assembly.
4. To remove the air cleaner assembly (1) from the air
cleaner bracket clamp (2), Unscrew the two screws on
the clamp (2) until the air cleaner is loose in the bracket.
Release the latches on the end and remove the end cap
from the air cleaner assembly. Slide the remaining part
of the air cleaner out of the bracket clamp.
NOTE: The filter element can be removed from the air cleaner by
releasing the latches on the end of the air cleaner. Replace
filter element as needed.
INSTALLATION:
1. Follow Removal Steps in reverse.

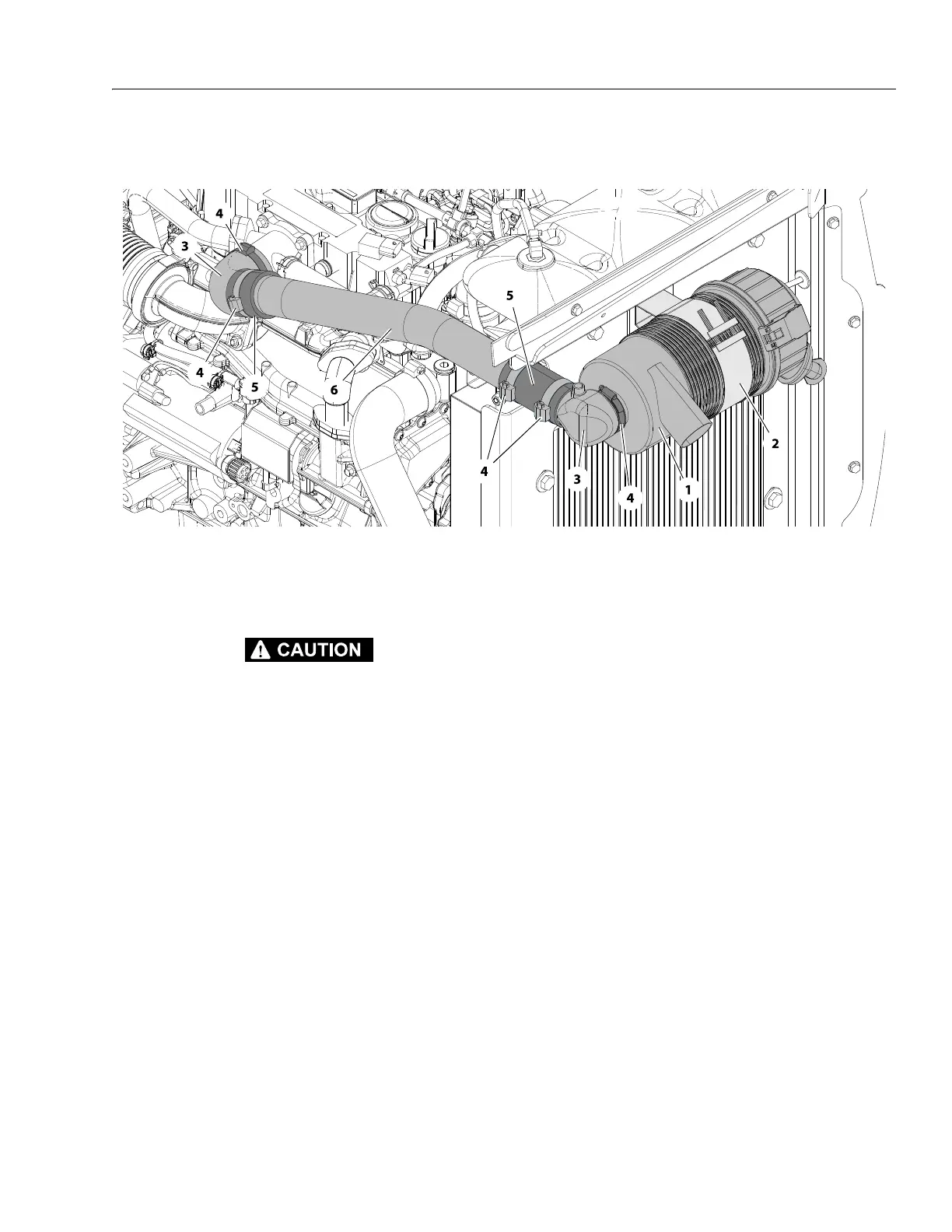

Figure 3-51. Air Cleaner System (Deutz Engine)
1. Air Cleaner Assy.
2. Air Cleaner Bracket Clamp
3. 90° Elbow Fitting
4. Clamps
5. Hose Connector
6. Intake Pipe
