JLG 4394RT - Leveling Jacks Directional Valve

SECTION 4 - HYDRAULICS
4-18 – JLG Lift – 3121642
Leveling Jacks Directional Valve
PA 1
PA 3
PA 4
PA 2
PB1
PB2
PB4
PB3
LP
T
PA 1
PA 3
PA 4
PA 2
PB1
PB2
PB4
PB3
LP
T

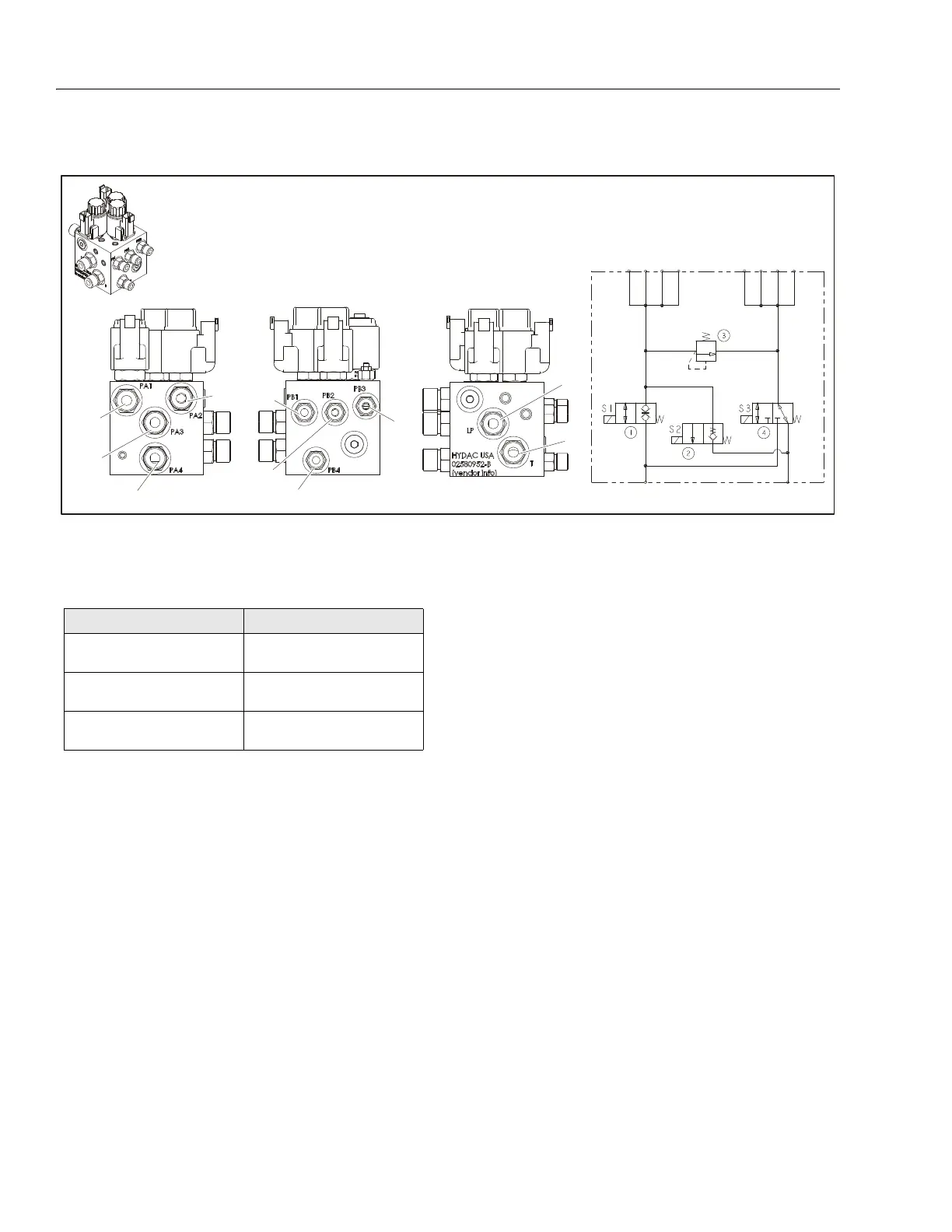

Figure 4-19. Leveling Jacks Directional Valve
Table 4-5. Leveling Jacks Directional Valve Torque Specs
Item Torque
PA4
40 lb-ft
(54 Nm)
PB4
23 lb-ft
(31 Nm)
T
40 lb-ft
(54 Nm)
