JLG 4394RT - Leveling Jack Valves

SECTION 4 - HYDRAULICS
4-20 – JLG Lift – 3121642
Leveling Jack Valves
A
B
1
2
3
4

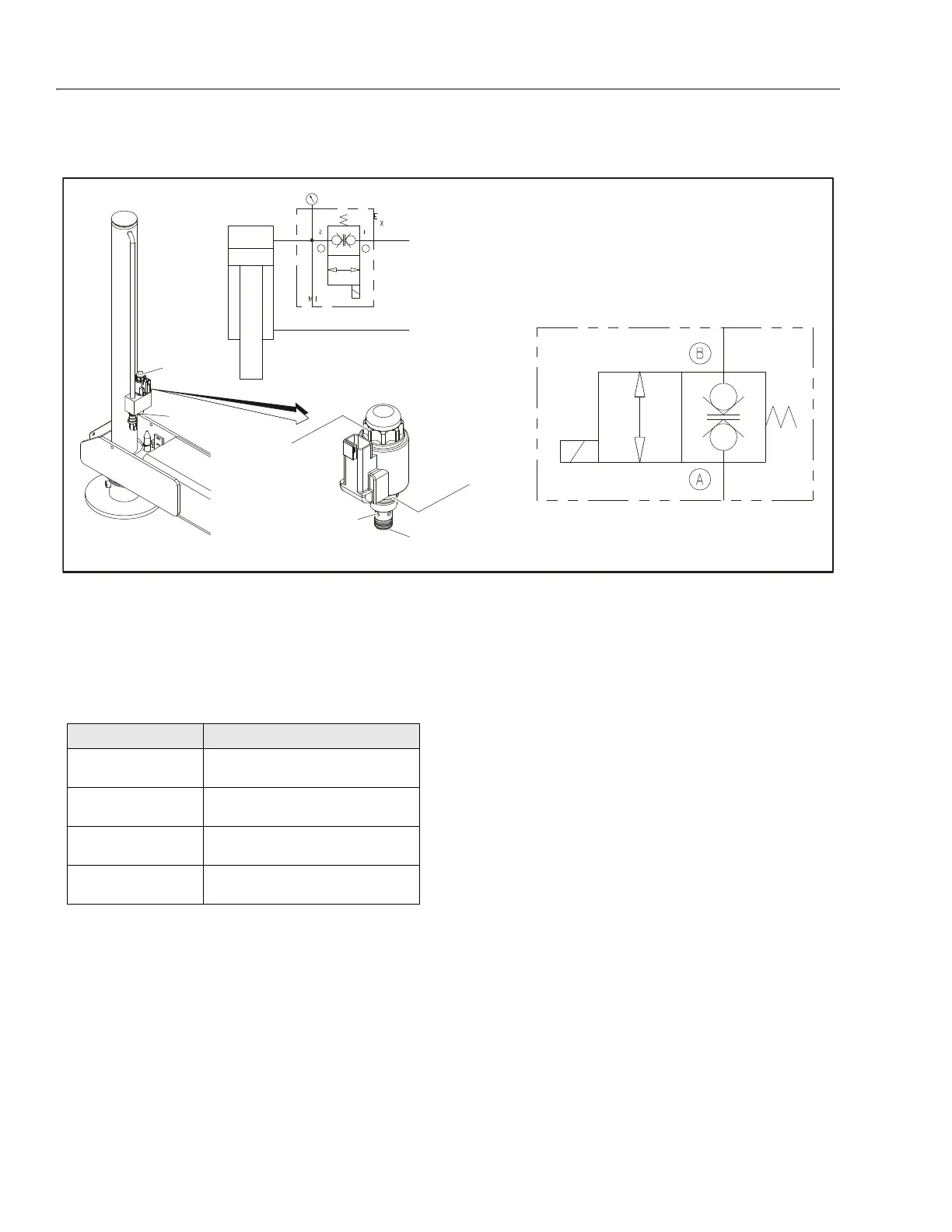

Figure 4-22. Leveling Jack Valves
NOTE: Applies to all four Leveling Jacks.
Table 4-7. Leveling Jack Valves Torque Specs
Item Torque
1
3 to 4.5 lb-ft
(4.1 to 6.1 Nm)
2
18.5 to 22 lb-ft
(25.1 to 29.8 Nm)
3
40 lb-ft
(54.2 Nm)
4
32 lb-ft
(43.4 Nm)
