SECTION 6 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
6-8 – JLG Lift – 3121642
Service - Voltage Reading
DO NOT PIERCE WIRE INSULATION TO TAKE VOLTAGE READINGS.
It has been common practice in electrical troubleshooting to
probe wires by piercing the insulation with a sharp point. This
practice should be discouraged when dealing with the
AMPSEAL plug assembly, or any other sealed connector sys-
tem. The resulting pinholes in the insulation will allow mois-
ture to invade the system by traveling along the wire strands.
This nullifies the effectiveness of the connector seals and
could result in system failure.

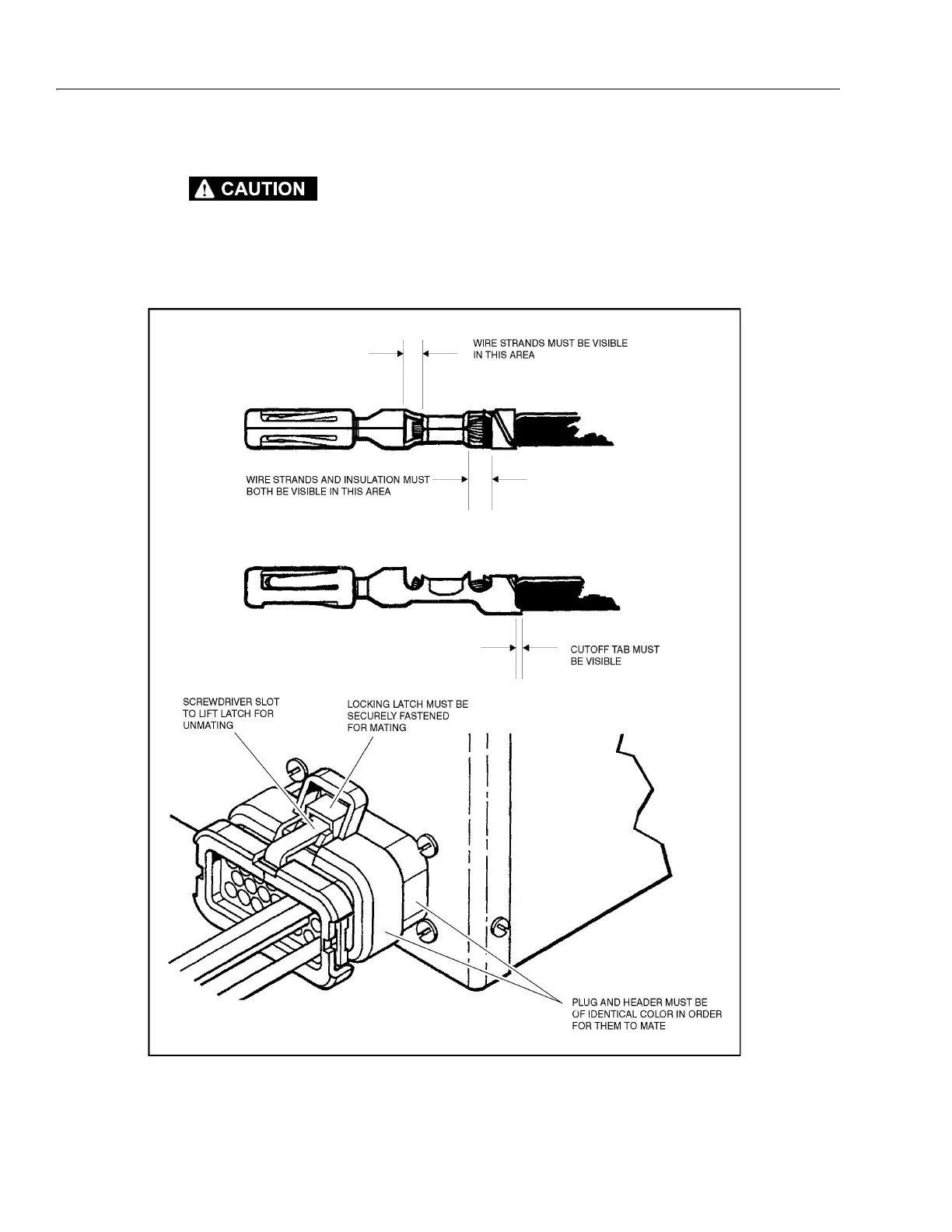

Figure 6-11. Connector Installation
