SECTION 1 - SPECIFICATIONS
1-2 – JLG Lift – 3121642
1.4 TIRES
1.5 MACHINE DIMENSIONS
1.6 PRESSURE SETTINGS
1.7 SERIAL NUMBER LOCATIONS
For machine identification, a serial number plate is affixed to
the machine. The plate is located at the rear of the machine on
the center of the axle. In addition, should the serial number
plate be damaged or missing, the machine serial number is
stamped onto the lip of the rear axle.
Fu el Co ns um pt ion : Lo w R PM
H ig h R PM
1.3 GPH (4.9 lph)
1.6 GPH (6.0 lph)
Horsepower 49 @ 2800 RPM, full load
Table 1-5. GM 3.0L Specifications
(Tier 2 and 3 Engine)
Fuel Gasoline or Gasoline/LP Gas
No. of Cylinders 4
HorsePower:
G as ol in e
L P
83 hp @ 3000 rpm
75 hp @ 3000 rpm
Bore 4.0 in. (101.6 mm)
Stroke 3.6 in. (91.44 mm)
Displacement 181 cu.in. (3.0 L, 2966 cc)
Oil Capacity w/filter
Ti er 2
Ti er 3
4.5 qts. (4.25 L)
5.0 qts. (4.73L)
Minimum Oil Pressure:
at idle
at operation
6 psi (0.4 Bar) @ 1000 rpm
18 ps i (1. 2 Bar) @ 200 0 rpm
Compression Ratio
Ti er 2
Ti er 3
9.2:1
10.5:1
Firing Order 1-3-4-2
Maximum RPM 2800
Table 1-6. Tire Specifications
Size
Ply
Rating
Inflation Pressure
Wheel Nut
Torque (Dry)
IN315/55D20
Pneumatic
12 75 psi (5 bar)
170 lb-ft
(230 Nm)
IN315/55D20
Foam Filled
12
Foam Fill to
75 psi (5 bar)
170 lb-ft
(230 Nm)
12 x 16.5
Pneumatic
(Non-Marking)
10 90 psi (6 bar)
170 lb-ft
(230 Nm)
12 x 16.5
Foam Filled
(Non-Marking)
10
Foam Fill to
90 psi (6 bar)
170 lb-ft
(230 Nm)
33/1550 x 16.5
Pneumatic
14 90 psi (6 bar)
170 lb-ft
(230 Nm)
33/1550 x 16.5
Foam Filled
14
Foam Fill to
90 psi (6 bar)
170 lb-ft
(230 Nm)
33/16LLx16.1 Foam
Filled - Sand
10
Foam Fill to
50 psi (3.4 bar)
170 lb-ft
(230 Nm)
31 x 15.50-15
Grass Master
10 60 psi (4 bar)
170 lb-ft
(230 Nm)
Table 1-4. Deutz D2011 L03 T41-Flex Specifications
(Tier 4 Flex Engine)
Description 3394RT 4394RT
Machine Height (rails down) 61.75 in (1.6 m) 70.4 in (1.8 m)
Machine Width 94 in (2.4 m)
Machine Length 156 in (4 m)
Table 1-7. Main Control Valve Relief Settings
Description 3394RT 4394RT
Main Relief 3000 psi (207 bar)
Steer Relief 2800 psi (193 bar)
Lift Up Relief 2700 psi (186 bar)
1
2
Rear of Machine
1. Serial Number Plate
2. Stamped Serial Number

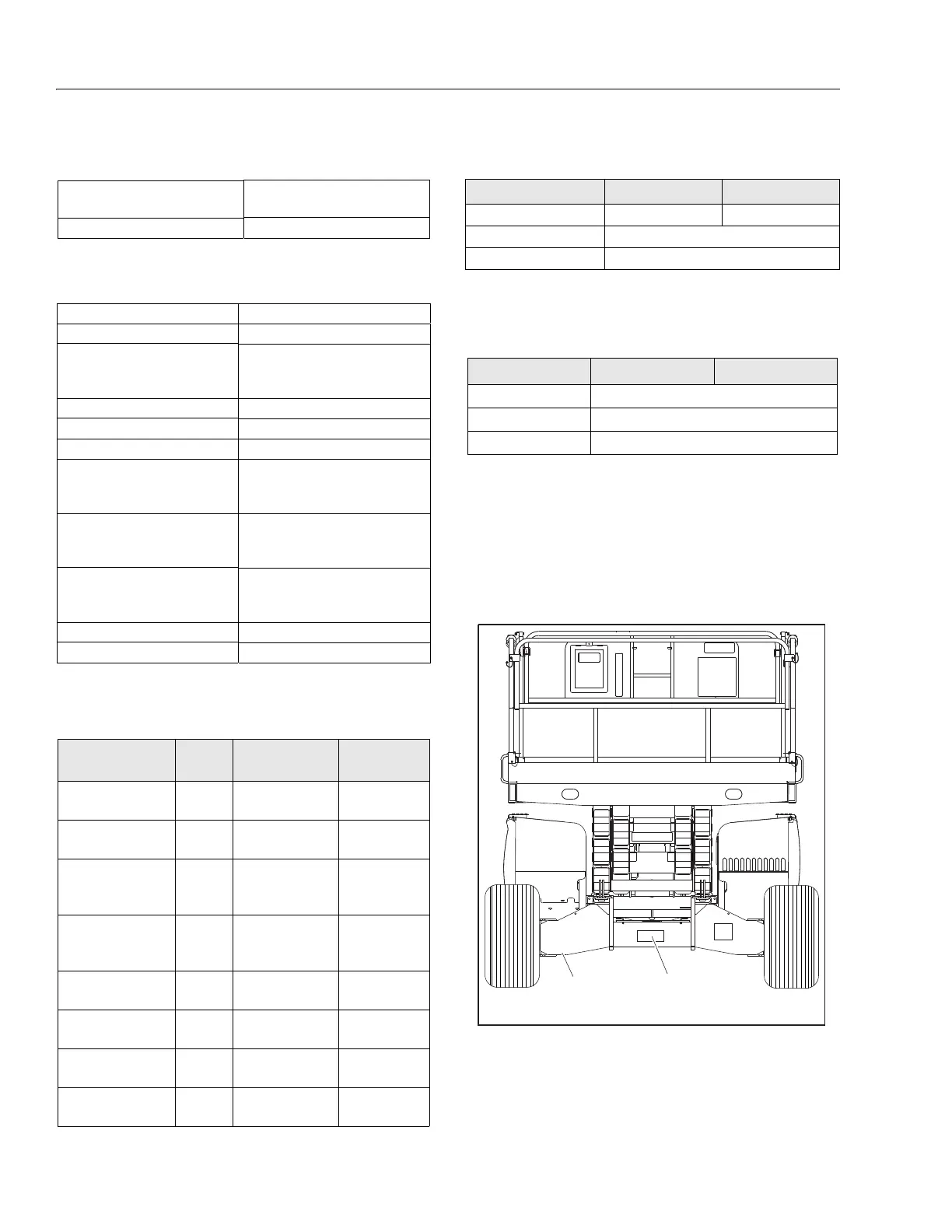

Figure 1-1. Serial Number Location
