SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-37
Axle Assembly
REMOVAL:
SUPPORT THE FRAME AND AXLE BEFORE ATTEMPTING ANY REMOVAL AND/OR
ASSEMBLY PROCEDURES.
1. Disable machine operation. Remove wheel and drive
assemblies (refer to Figure 3-1., Drive Assembly (Bosch
Rexroth )).
2. Remove the bolt (2) and pin keeper (3).
3. Push the axle pivot pin (4) out and remove the thrust
washers (5, 6) and bearings (7).
4. Axle can now be moved away from the frame.
ASSEMBLY:
1. When installing the axle assembly, follow Removal Steps
in reverse.
NOTE: Apply Loctite® #271 to bolt (2).

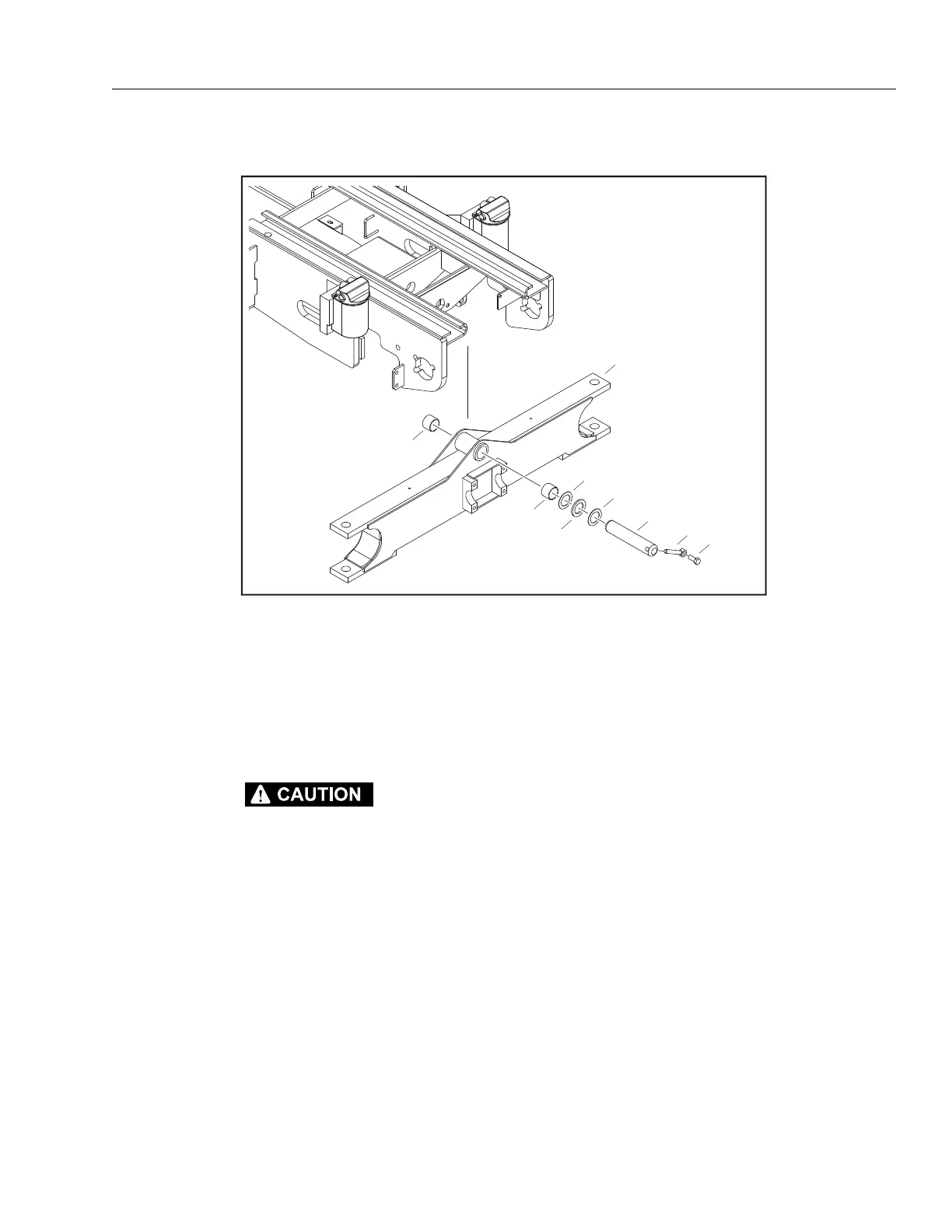

1. Front Axle
2. Bolt, 5/8"-11NC x 1 1/2"
3. Pin Keeper
4. Axle Pivot Pin
5. Thrust Washer
6. Thrust-Axle Washer
7. Bearing
Figure 3-29. Axle Assembly
