JLG 4394RT - Lift Cylinder

SECTION 4 - HYDRAULICS
4-34 – JLG Lift – 3121642
OR
OR
OR
OR
6
6
11
9
4
1
7
10
10
10
5
5
8
5
5
2
3
26
26
25
30
21
19
20
23
22
23
27
24
14
15
16
28
18
13
12
17
29
26
26
1. Cable Adapter
2. Bolt
3. Bracket
4. Manual Descent Cable
5. Plug, O-Ring
6. Jam Nut
7. Cotter Pin
8. Cartridge, Lift Holding Solenoid
9. Cartridge, Lift Holding Solenoid
10. Cartridge, Check
11. Flat Washer
12. Wiper
13. Seal
14. Ring, Wear
15. Seal
16. Ring, Back-Up
17. Setscrew
18. Head
19. Seal
20. Ring, Wear
21. Nut [torque to 475 lb-ft (644 Nm)]
22. Seal
23. Ring, Back-Up
24. Spacer
25. Plug, O-Ring
26. Bushing
27. Piston
28. Seal
29. Rod
30. Barrel

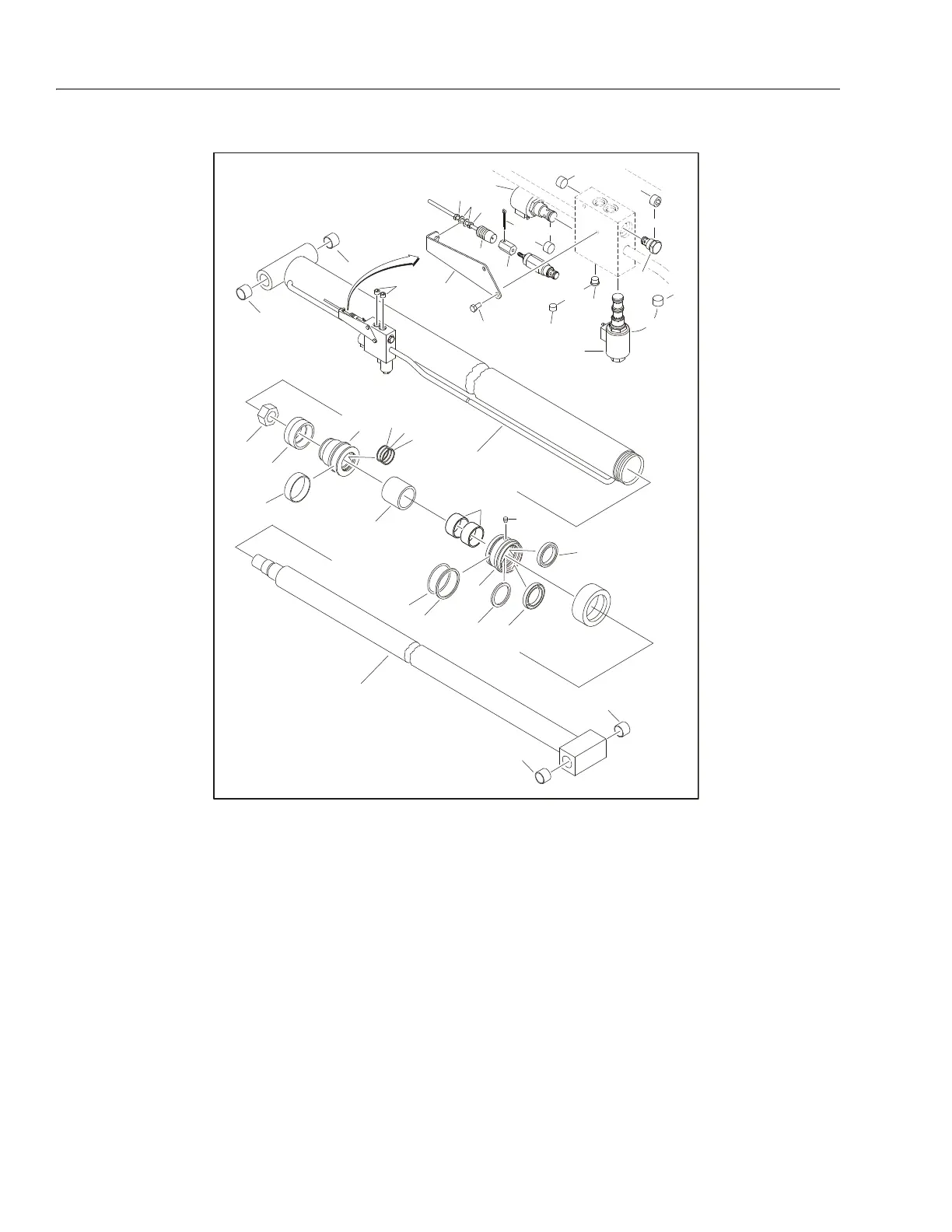

Figure 4-29. Lift Cylinder
