SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121642 – JLG Lift – 3-11

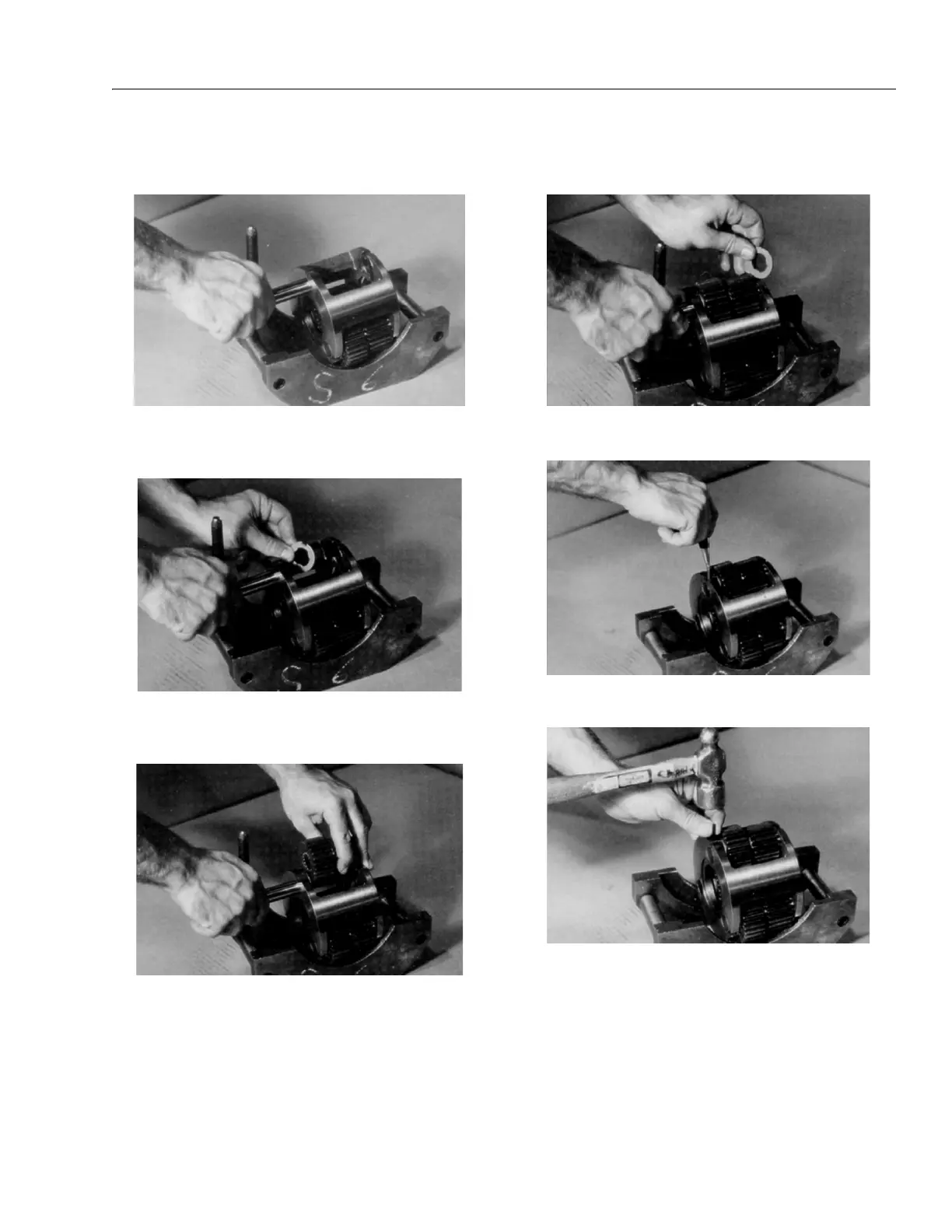

4. Set carrier housing (3A) sideways on a table. Insert a
planet shaft (3E), roll pin hole last, into one of the planet
shaft holes from roll-pin-holed side of carrier housing.
5. Place one thrust washer (3B) onto the end of planet
shaft (3E) inside carrier. Fit tang of thrust washer into the
slot on the inside edge of the planet shaft hole.
6. Following the thrust washer, place the cluster gear (3F),
large end toward roll pin hole in carrier housing, onto
the planet shaft (3E).
7. Following the cluster gear, place one more thrust
washer (3B) onto planet shaft (3E) through the opposite
planet shaft hole in carrier housing (3A).
8. Use an alignment punch or similar tool to align the roll
pin holes in carrier housing (3A) and planet shaft (3E).
9. Drive roll pin (3G) down into the aligned roll pin holes in
carrier housing (3A) and planet shaft (3E).
10. Repeat steps 1 thru 9 to assemble and install the two
remaining cluster gears.
11. At this point the carrier sub-assembly is complete.
