SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-18 – JLG Lift – 3121642

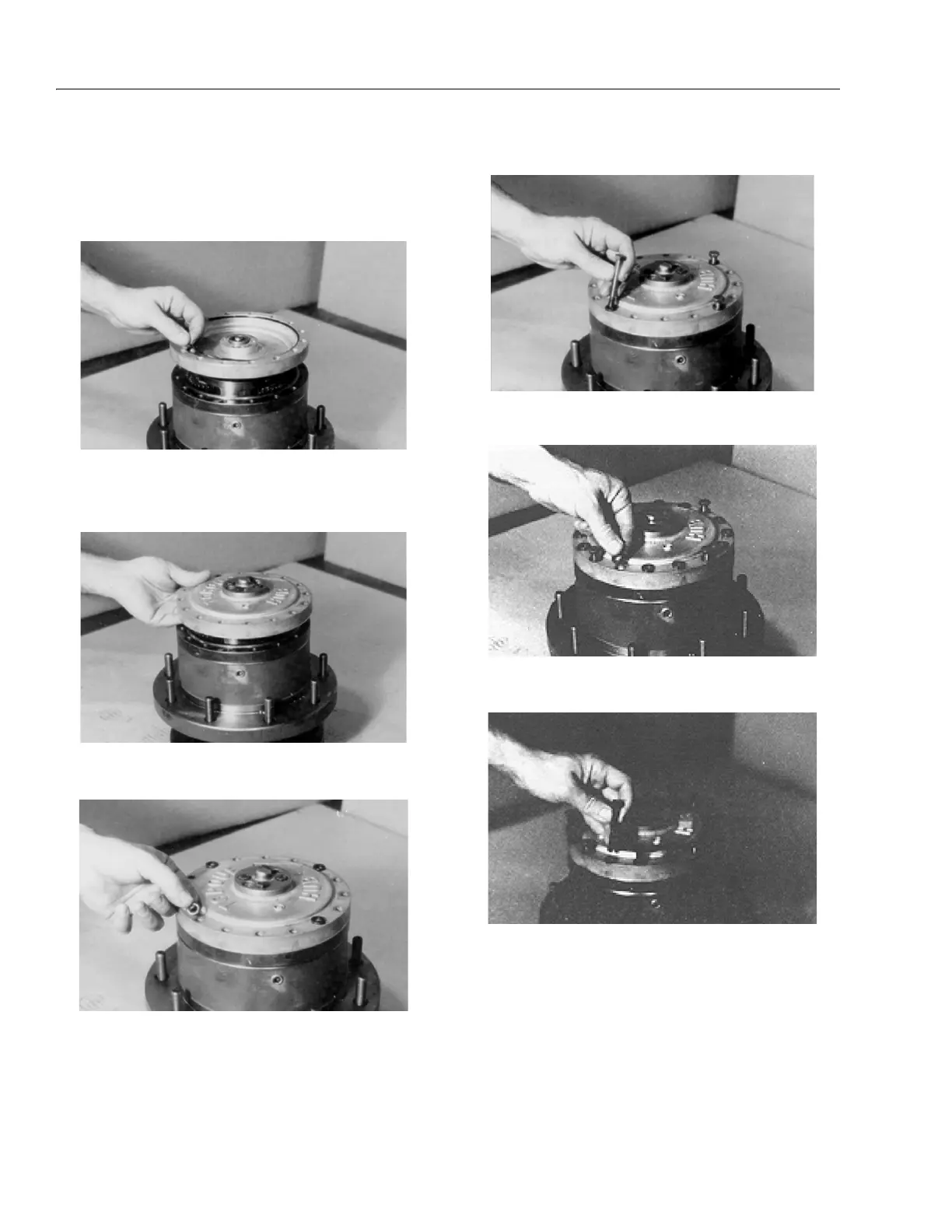

16. Set the cover (6A) on table, interior side up. Grease o-
ring (5) and place it into the counterbore around the
edge of cover (6A).
NOTE: The o-ring may be stretched or pinched together to make it
fit the counterbore exactly.
17. Place cover sub-assembly (6) onto ring gear (4), aligning
the pipe plug holes according to the alignment prior to
disassembly.
18. Place four flatwashers (16) on top of the bolt holes in the
cover sub-assembly.
19. Place shoulder bolts (13) into the four shoulder bolt
holes in cover (6) and tighten by hand.
20. Place the remaining 12 flatwashers (16) onto the
remaining bolt holes in cover (6).
21. Place the 12 bolts into the remaining bolt holes in cover
(6) and tighten.
