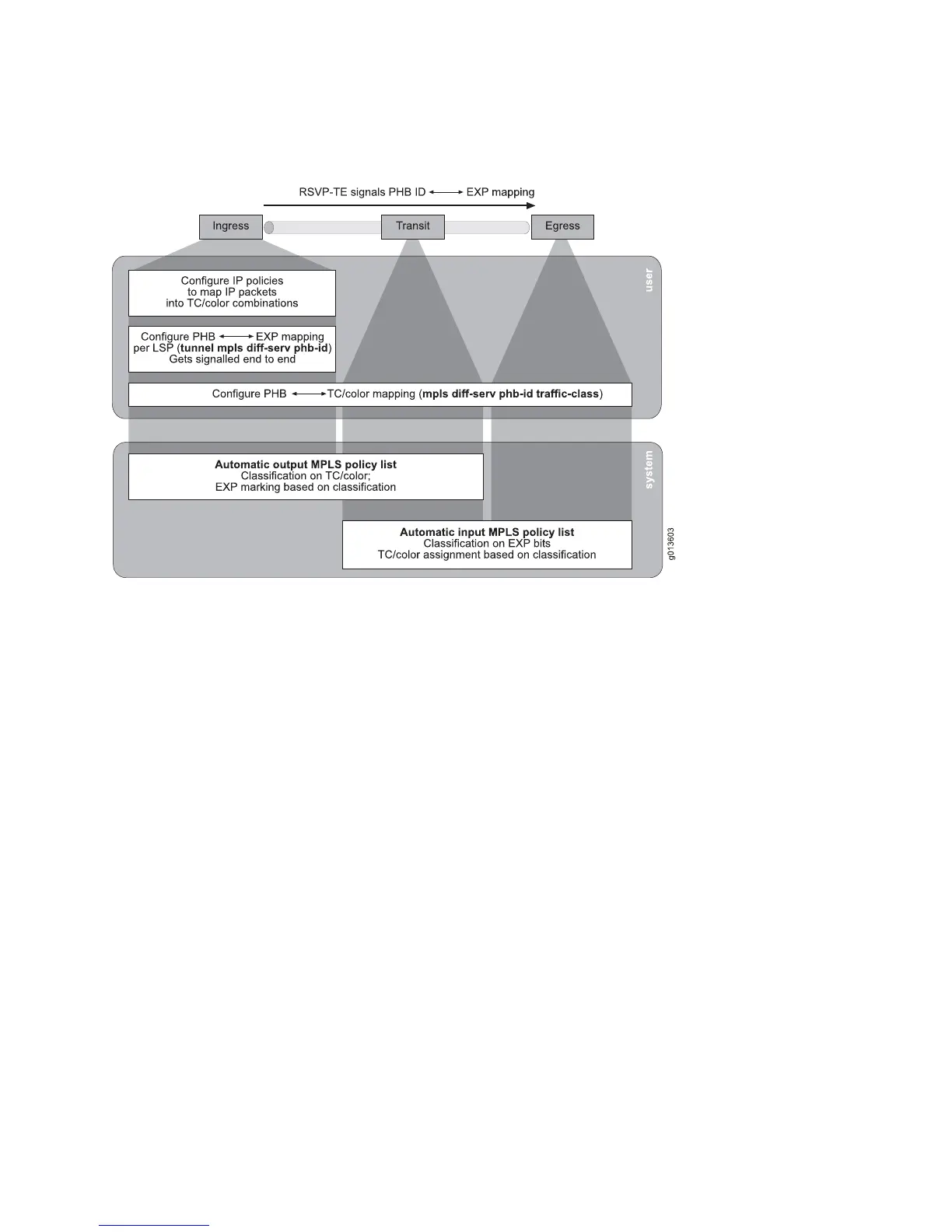

Figure 66: Signaled Mapping
To define a policy rule that sets the EXP bits in packets to which the policy is applied:
â– Issue the mark-exp command.
host1(config-policy-list)#mark-exp 5 classifier-group claclEXP precedence 32
To create or modify an MPLS classifier control list to match on traffic class/color
combination or EXP bits:
â– Issue the mpls classifier-listcommand.
host1(config)#mpls classifier-list be-green traffic-class best-effort color yellow
To map the specified PHB ID to the internal traffic class/color combination:
â– Issue the mpls diff-serv phb-id traffic-class command.
host1(config)#mpls diff-serv phb-id standard 45 traffic-class gold color green
To create or modify an MPLS policy:
â– Issue the mpls policy-list command.
host1(config)#mpls policy-list mpls-exp-setting
To enable collection of policy statistics for a tunnel or LSP. Collection is disabled by
default.
Signaled Mapping for RSVP-TE Tunnels â– 307
Chapter 3: Configuring MPLS
