â– svlan ethertype
â– svlan id
Configuring Local Cross-Connects Between Ethernet/VLAN Interfaces
This section provides an example for configuring a local cross-connect that uses
MPLS between two Ethernet/VLAN interfaces.
NOTE: You must use the mpls-relay command instead of the route interface
command to configure a local cross-connect, regardless of the MPLS tunneling method
used in the core network.
Figure 119 on page 533 shows the interface stack that the router builds for this
configuration.

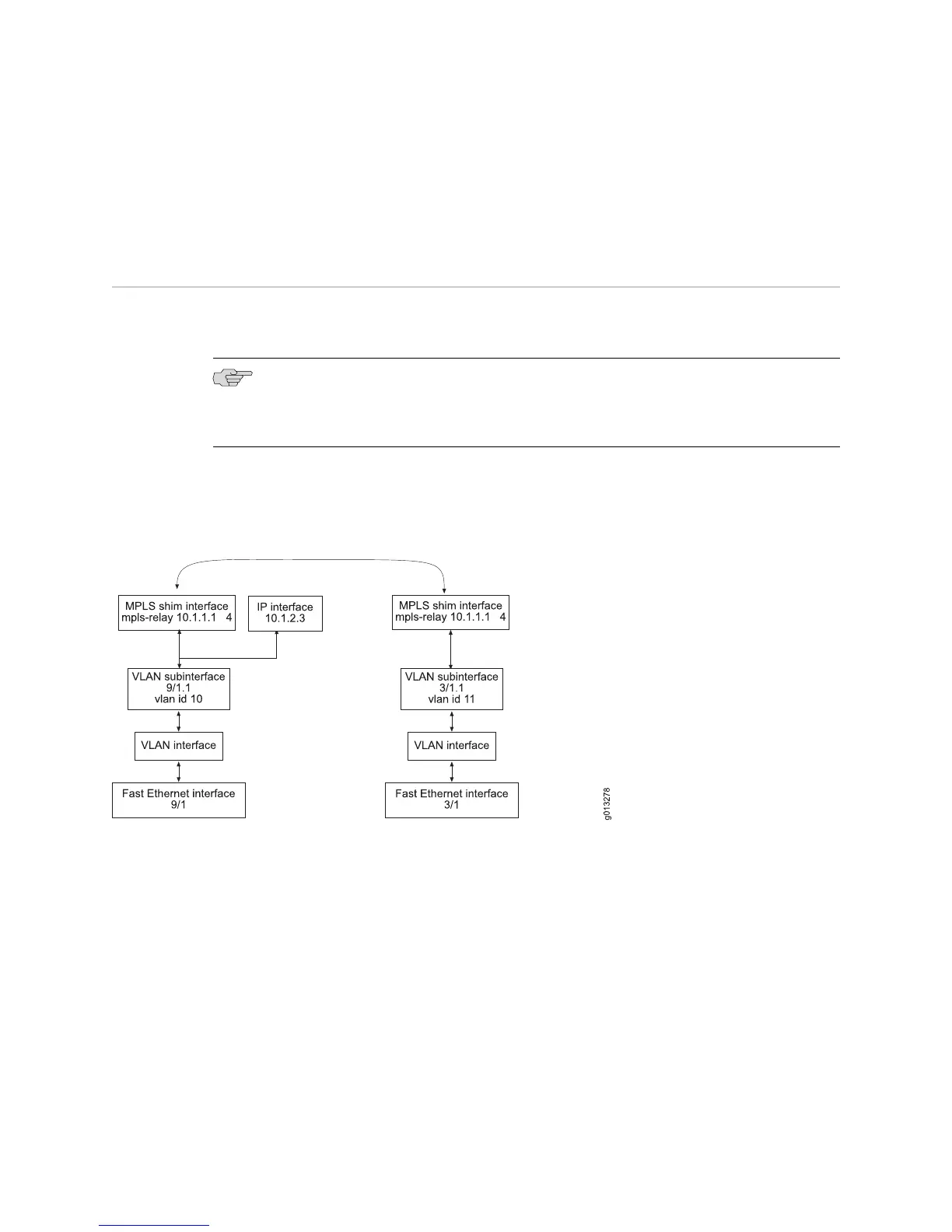

Figure 119: Local Cross-Connect Between Ethernet/VLAN Interfaces
To configure the application shown in Figure 119 on page 533:
1. Configure a local IP address.
You can use any reachable local IP address. This example uses a loopback
interface to provide the local IP address.
host1(config)#interface loopback 0
host1(config-if)#ip address 10.1.1.1 255.255.255.255
host1(config-if)#exit
2. Configure the Ethernet/VLAN interface on one side of the local cross-connect.
host1(config)#interface fastEthernet 9/1
host1(config-if)#encapsulation vlan
host1(config-if)#exit
host1(config)#interface fastEthernet 9/1.1
Configuring Local Cross-Connects Between Ethernet/VLAN Interfaces â– 533
Chapter 7: Configuring Layer 2 Services over MPLS
