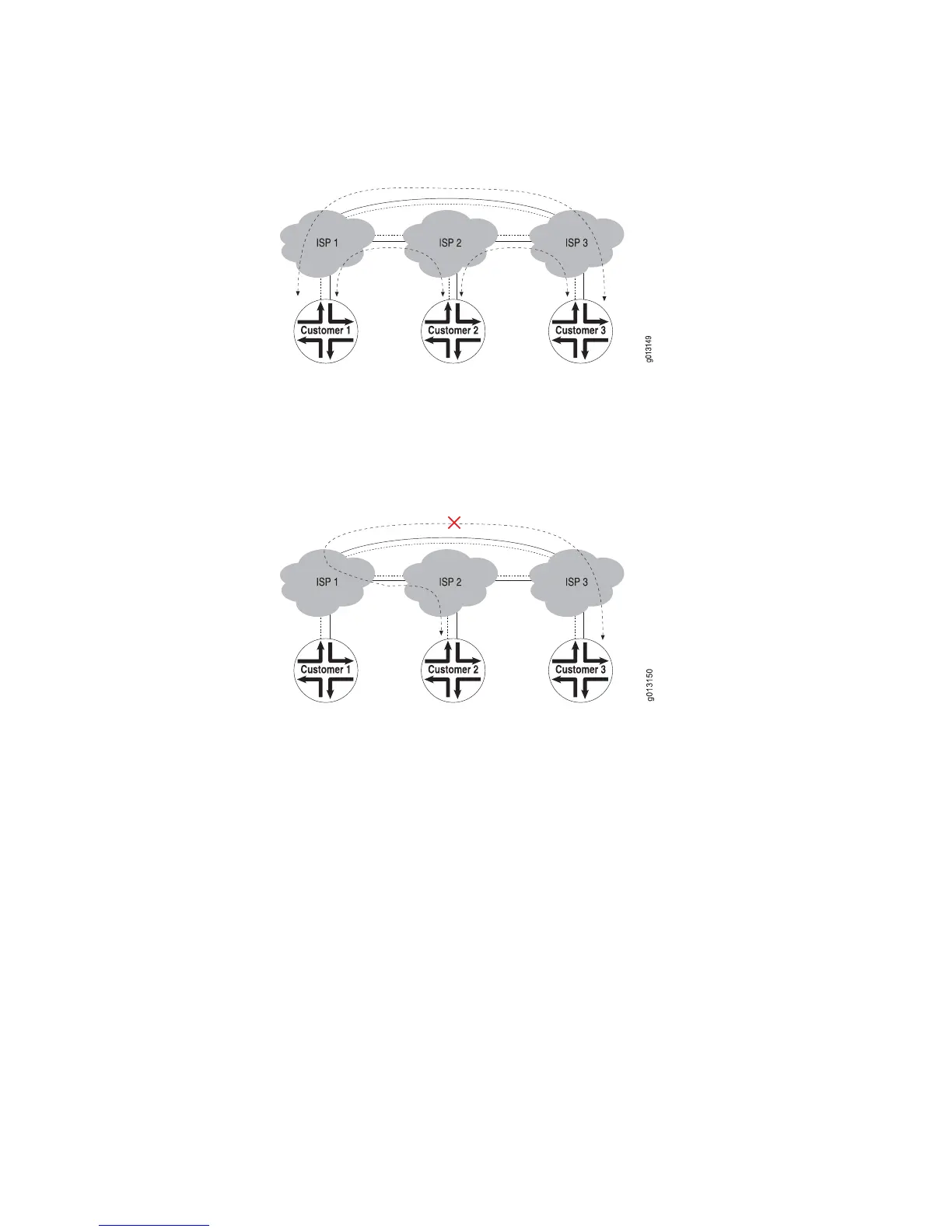

Figure 6: Transit Service
Each ISP provides nontransit service to other ISPs. For example, Figure 7 on page 12
shows that ISP 1 does not permit traffic between ISP 2 and ISP 3 to cross its backbone.
If ISP 1 permits such traffic, it squanders its own resources with no benefit to its
customers or itself.
Figure 7: Nontransit Service
IPv6 BGP Support
Most of the extensions and features available in BGP for IPv4 are also available for
the IPv6 address family, such as policy-based routing, redistributing routes to and
from other protocols, route aggregation, route flap dampening, and confederations.
For a description of IPv6, see Configuring IPv6 in JUNOSe IP, IPv6, and IGP Configuration
Guide.
Multiprotocol Extensions for BGP-4 (MP-BGP) allow the exchange of IPv6 routing
information over TCP IPv4 (Figure 8 on page 13) or TCP IPv6 transport (Figure 9 on
page 13).
Exchange of IPv6 Routing Information over TCP IPv4
Figure 8 on page 13 illustrates the exchange of IPv6 routing information over a TCP
IPv4 connection.
12 â– Overview
JUNOSe 11.1.x BGP and MPLS Configuration Guide
