Model 2700 Multimeter/Switch System User’s Manual Basic DMM Operation 3-21

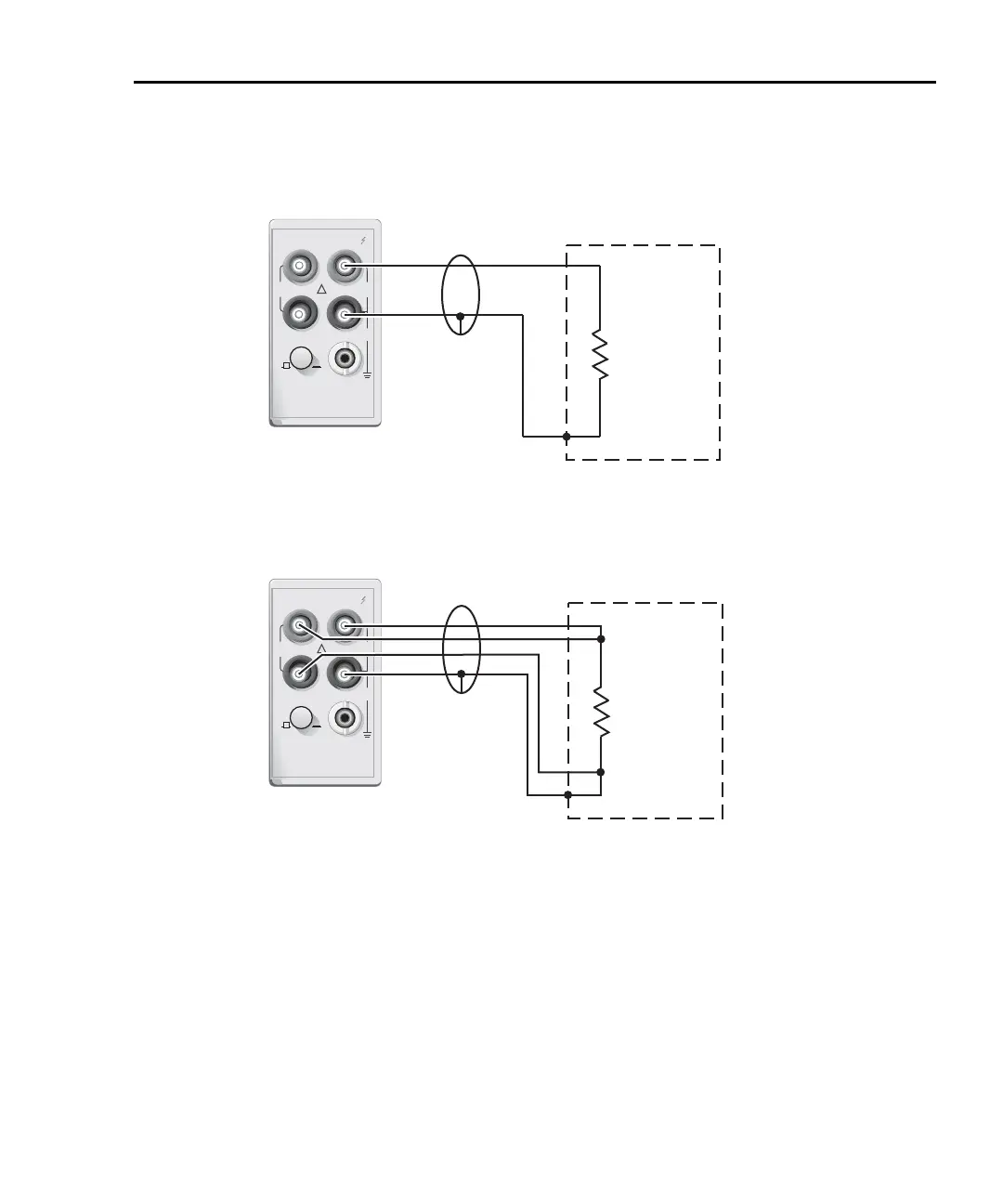

Figure 3-8
Ω2 and Ω4 connections for front panel inputs
Source current flows from the
INPUT HI to INPUT LO terminals.
A. Ω2 Connections
B. Ω4 Connections
F
!
F
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1000V
PEAK
R
Model 2700
F
!
F
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1000V
PEAK
R
Model 2700
Source current flows from the
INPUT HI to INPUT LO terminals.
Shielded
Cable
Optional Shield
Resistance
Under Test
Optional Shield
Resistance
Under Test
Shielded
Cable
Note:
