Model 2700 Multimeter/Switch System User’s Manual Remote Operations 10-7
To connect the Model 2700 to the IEEE-488 bus, follow these steps:
1. Line up the cable connector with the connector located on the rear panel. The
connector is designed so it will fit only one way.
Figure 10-3 shows the location of
the IEEE-488 connector.
2. Tighten the screws securely, making sure not to overtighten them.
3. Connect any additional connectors from other instruments as required for your
application.
4. Make sure the other end of the cable is properly connected to the controller. Most
controllers are equipped with an IEEE-488 style connector, but a few may require a
different type of connecting cable. See your controller’s instruction manual for
information about properly connecting to the IEEE-488 bus.
NOTE You can only have 15 devices connected to an IEEE-488 bus, including the con-
troller. The maximum cable length is either 20 meters or two meters multiplied
by the number of devices, whichever is less. Not observing these limits may
cause erratic bus operation.

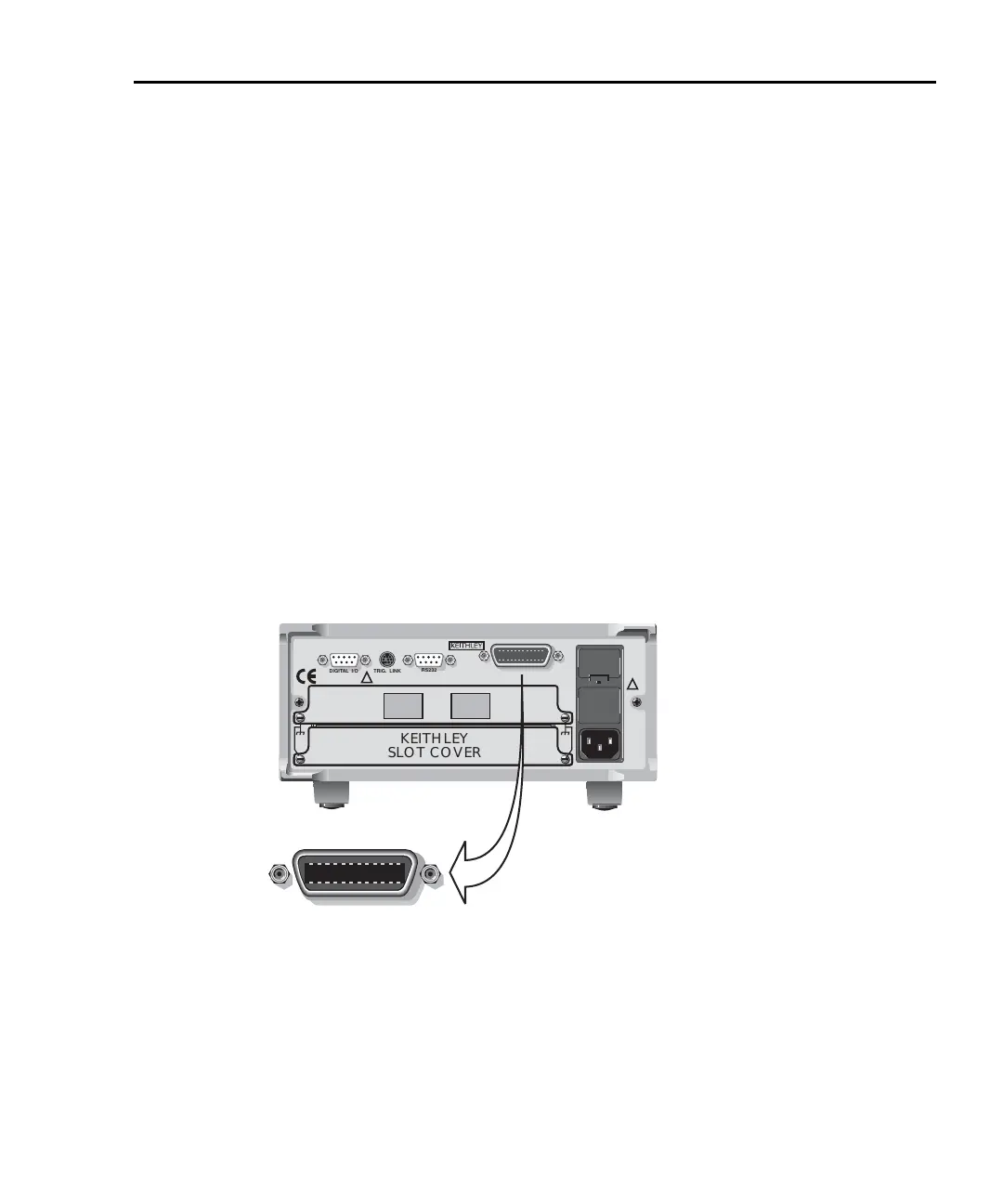

Figure 10-3
IEEE-488 connector location
Model 2700
KEITHLEY
SLOT COVER
DIGITAL I/O TRIG. LINK
RS232
IEEE-488
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
!
!
IEEE-488
SLT
2
SLT
1

Keithley 2700 Specifications

General

Type	Digital Multimeter
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 500 kHz
Temperature Range	-200°C to +1372°C
Display	Vacuum Fluorescent Display
Connectivity	IEEE-488, RS-232
Channels	10
Power Supply	100V to 240V AC, 45Hz to 66Hz
DC Current Range	10 µA to 3 A
AC Current Range	10 µA to 3 A
Temperature Measurement	Thermocouple, RTD
