Model 2700 Multimeter/Switch System User’s Manual Close/Open Switching Module Channels 2-25
Dual multiplexer application
This application demonstrates how to use the Model 7700 as a dual multiplexer to bias and
measure 10 DUT. An external source powers DUT, while the DMM of the Model 2700
measures the output of the DUT. To prevent overloading of the external source, each DUT
is powered (and measured) separately.
Figure 2-9 shows the connections for this application. The external source is connected to
the Sense terminals of the switching module, and DUT is connected to channels 1 through
10. Channels 11 through 20 are used to connect external power to each DUT.

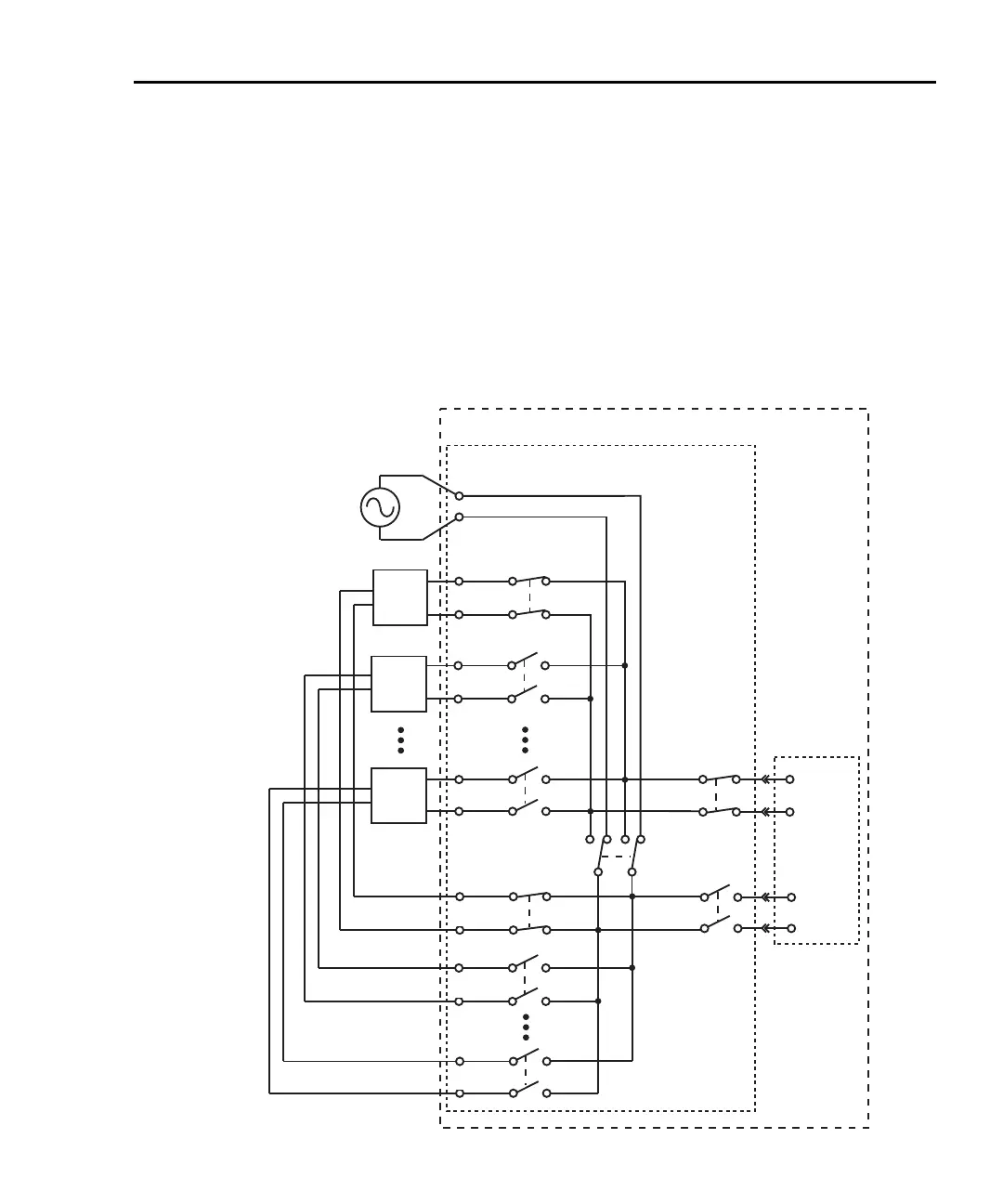

Figure 2-9
Dual multiplexer application connections
Ch 1
DUT
1
H1
LO
Ch 2
DUT
2
H1
LO
Ch 10
DUT
10
H1
LO
Ch 11
H1
LO
Ch 12
H1
LO
Ch 20
H1
LO
Ch 23
(Closed)
Ch 25
Ch 24
H1
LO
External
Source
Model 7700 Switching Module
Model 2700
DMM
HI
LO
Sense
HI
LO
Input
Sense

Keithley 2700 Specifications

General

Type	Digital Multimeter
Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 500 kHz
Temperature Range	-200°C to +1372°C
Display	Vacuum Fluorescent Display
Connectivity	IEEE-488, RS-232
Channels	10
Power Supply	100V to 240V AC, 45Hz to 66Hz
DC Current Range	10 µA to 3 A
AC Current Range	10 µA to 3 A
Temperature Measurement	Thermocouple, RTD
