RF Section Troubleshooting (RF/Microwave Analyzers)
Troubleshooting
2. L.O. Synthesizer Assembly Verification
Press the following keys on the analyzer:
Mode Preset
FREQ (Channel), 5 GHz
SPAN (X Scale), Zero Span
Refer to Figure 4-24. Disconnect cable W4 at A14J740 of the L.O. Synthesizer
Assembly (1).

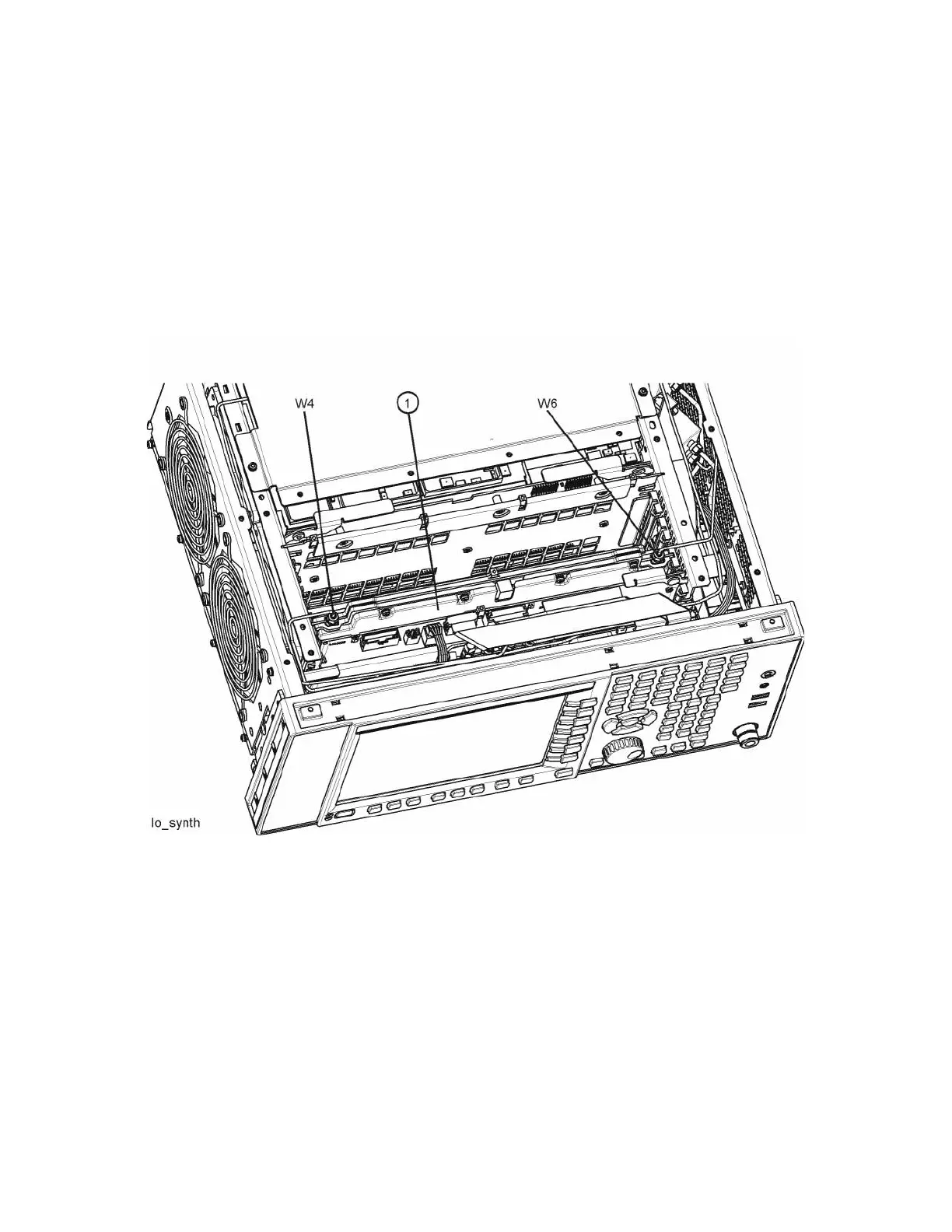

Figure 4-24 W4 and W6 Location
